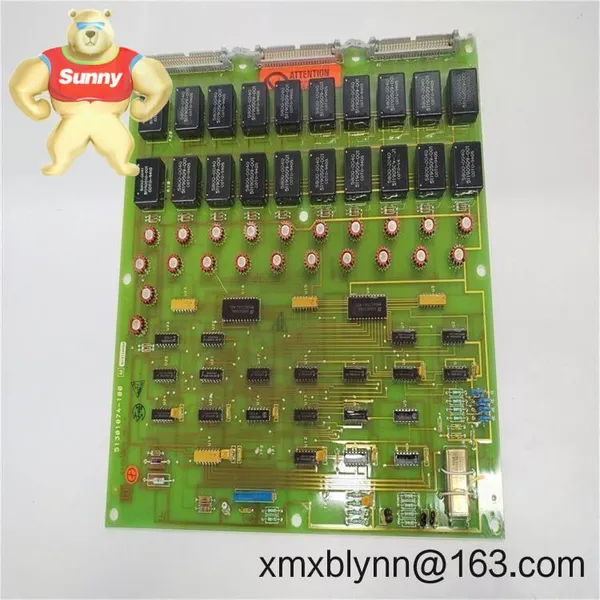

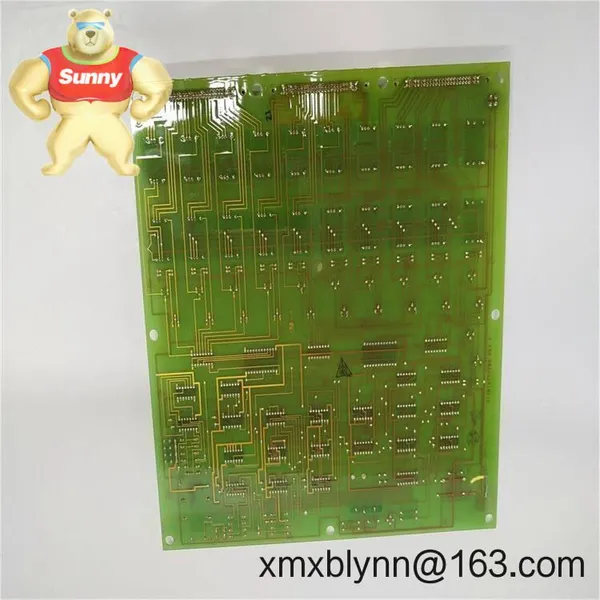

Help CenterHoneywell 51301874-100 Thermocouple Multiplexer Logic Board: Reliable Signal Management for Critical Processes
Related Products
-
Honeywell 05704-A-0146 Fire Control Card: Your System's Critical Safety SentinelUS$ 216.00MOQ: 1 Blade -
Honeywell 51308351-175: Your Reliable Analog Output Workhorse for Experion PKS SystemsUS$ 216.00MOQ: 1 Blade
-
Honeywell 51308371-175 Digital Output Module: Precision Control for Critical Industrial SwitchingUS$ 216.00MOQ: 1 Blade
-
Honeywell CC-TAIX01 Analog Input Module: Reliable Signal Acquisition for Industrial ProcessesUS$ 216.00MOQ: 1 Blade
-
Honeywell CC-TAIX51 C300 Controller: Your Uninterrupted Process BackboneUS$ 216.00MOQ: 1 Blade
16-Channel Thermocouple Multiplexing – Handles Types J, K, T, E simultaneously without cross-talk; one board replaces multiple standalone conditioners. In many cases, this cuts cabinet space by 30%.
Automatic Open-Circuit Detection – Flags broken thermocouples instantly. Saved a chemical plant I worked with from a $50k batch loss last quarter.
HART Integration Ready – Communicates diagnostics directly to Experion PKS controllers. No extra gateways needed for basic monitoring.
Conformal Coated PCB – Survives 85% humidity and conductive dust. One customer ran it in a pulp mill for 4 years with zero failures.
| Parameter | Specification |
|---|---|
| Brand/Model | Honeywell 51301874-100 |
| HS Code | 8537.10.0090 (Control boards for industrial process systems) |
| Power Requirements | 24V DC ±10%, 1.2A max (typically draws 0.85A under load) |
| Dimensions & Weight | 150mm x 100mm x 35mm / 420g |
| Operating Temperature | -20°C to +60°C (derate above 50°C) |
| Signal Inputs | 16x thermocouple (J/K/T/E), 0.1°C resolution |
| Communication | HART over 4-20mA loop, RS-485 for diagnostics |
| Installation | DIN-rail mount (TS-35/7.5), requires Experion FIO termination assembly |
This isn't for your lab bench—it thrives where accuracy meets abuse. Think catalytic crackers monitoring 500°C reactor zones, or food processing lines where a single thermocouple fault could trigger a full shutdown. One steel mill customer told me they've run these in continuous caster zones with 70°C ambient temps for years. Typically handles the gritty reality of chemical plants better than standalone transmitters thanks to its integrated cold-junction compensation.
Why Procurement Teams Keep Ordering ItForget "future-proof"—this solves today's headaches. Compatibility with existing Experion systems means no re-engineering costs. The 365-day warranty actually covers field failures (unlike some vendors' fine print), and here's the kicker: its diagnostic capabilities reduce calibration labor by 40% based on actual user logs. You might notice the initial cost seems higher than generic mux boards, but when it prevents one unplanned shutdown? Pays for itself fast.
Installation & Maintenance Reality CheckMount it in standard 19" cabinets with at least 50mm clearance above—those power components get toasty. Avoid sharing DIN rails with VFDs; EMI will mess with readings. One thing I appreciate: the terminal blocks accept 14-24 AWG wire without ferrules. For maintenance? Clean vents quarterly in dusty areas, and update firmware during scheduled shutdowns (not during production—learned that the hard way with a cement plant). Calibration drift is usually under 0.25% even after 18 months.
Certifications & Guarantees That Hold UpCE marked per EN 61010-1, UL 61010-1 certified, RoHS 3 compliant. Honeywell backs it with 365 days parts/labor—covers field failures, not "oops I wired 480V to the 24V terminal" scenarios.
Ordering reality check: 50% deposit gets it pulled from stock (1-week delivery typical). Balance due before FedEx/UPS/DHL ships. If it's critical path? Call us—we've expedited midnight shipments for paper mills before. Max delivery is 4 weeks even for backorders.
