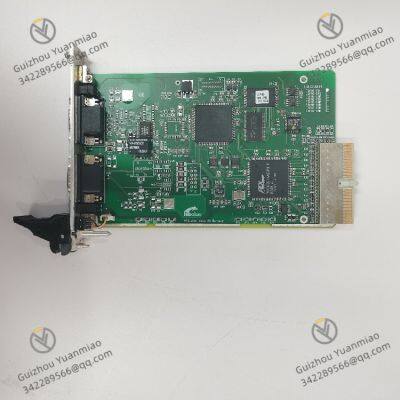

HILSCHER CIF80-PB Communication Interface

I. Overview

II. Technical Specifications

(I) Communication Performance Parameters

(II) Hardware and Reliability Parameters

(III) Software Compatibility Parameters

III. Functional Features

(I) Dual-Mode Communication, Balancing Real-Time Performance and Flexibility

• DP Mode Prioritizes Real-Time Control: For distributed I/O and servo drives in production lines, it achieves I/O data interaction with a cycle of ≤ 1ms to meet the precise control needs of equipment;

• FMS Mode Supports Message Interaction: Used for equipment parameter configuration (such as servo speed setting) and diagnostic data reporting (such as slave fault information), meeting both control and operation and maintenance needs.

(II) High-Reliability Design, Adapting to Industrial Scenarios

• Hardware Protection: Optical isolation + wide-temperature design + EMC certification, resisting high temperatures in workshops, electromagnetic interference, and power fluctuations, with a high Mean Time Between Failures (MTBF);

• Redundancy and Fault Tolerance: Supports dual-card hot backup (master-slave switchover ≤ 100ms) and cache overflow protection, avoiding production downtime caused by communication interruptions.

(III) Flexible Expansion and Integration

• Hardware Expansion: Supports multi-card cascading to adapt to large-scale slave networking; some models support hot-swapping to reduce maintenance downtime;

• Software Integration: Compatible with test software such as LabVIEW and MATLAB, supporting seamless connection with PLCs (e.g., Siemens S7-1500) and PXI test systems.

IV. Application Fields

(I) Automotive Electronics Testing Field: PXI ECU Test Bench

• Application Scenario: In the testing of automotive ECUs (Electronic Control Units), connect 16 channels of PROFIBUS-DP slaves (analog loads, signal acquisition modules) to implement ECU command issuance (such as motor control) and signal acquisition (such as sensor feedback), requiring a communication delay of ≤ 2ms and an accuracy rate of ≥ 99.99%;

• Core Value: DMA transmission ensures accurate test timing, and fault diagnosis quickly locates offline slaves to avoid invalid test data.

(II) Industrial Automation Field: Factory Distributed Control

• Application Scenario: In food packaging production lines, as an expansion interface for the Siemens S7-1500 PLC, connect 24 channels of distributed I/O (temperature and speed acquisition) and 8 servo drives to implement I/O monitoring (cycle of 5ms) and online adjustment of servo parameters;

• Core Value: The dual DP+FMS mode balances real-time control and parameter configuration, and dual-card hot backup ensures continuous production.

(III) Semiconductor Testing Field: Device Detection Equipment

• Application Scenario: In semiconductor discrete device test benches, connect PROFIBUS-interfaced probe stations and temperature chambers to implement probe positioning control (accuracy ±0.1mm) and ambient temperature adjustment, requiring a communication response of ≤ 1ms;

• Core Value: The compact design adapts to the dense layout of clean workshops, and the wide-temperature performance copes with local temperature rise of equipment.

V. Operation Guide

(I) Installation Steps

Hardware Installation:

1. Confirm that the PXI system has a CompactPCI slot, clean the gold fingers of the card, insert it vertically, and fasten the panel screws;

2. Use shielded twisted-pair cables for on-site wiring, connect 120Ω terminal resistors at both ends of the bus, and ground the shield layer at one end (master side, grounding resistance ≤ 4Ω).

Driver Installation:

1. Download the driver package (Windows/Linux) matching the operating system and complete the installation according to the wizard;

2. If the driver installation fails, check the compatibility between the system version (e.g., Windows 10 64-bit) and the driver model.

(II) Parameter Configuration (Based on SyCon Software)

Basic Configuration:

1. Open the SyCon software, add the CIF80-PB device, and set the master address (0x01-0x0F is recommended) and communication rate (selected based on wiring length, e.g., 1.5Mbps for 50m);

2. Scan and add slave devices, and configure the data mapping table (e.g., associate I/O signals with register addresses).

Optimized Configuration:

1. Enable DMA mode to reduce CPU usage, set the communication timeout (500ms is recommended) and automatic reconnection function;

2. Save the configuration file, download it to the card online, and restart communication to verify the connection status.

(III) Daily Maintenance and Troubleshooting

Daily Maintenance:

1. Check the on-board LEDs weekly (steady power light and blinking bus light indicate normal operation) and clean dust from the heat dissipation holes;

2. Test the communication delay (required to be ≤ 50μs) and data accuracy rate (required to be ≥ 99.99%) through SyCon every 3 months;

3. Check for firmware updates annually and back up the configuration file before upgrading.

Common Troubleshooting:
