Medical Centrifuge Calibration device made in China
Parameters and Configuration
I. Technical Parameters
Speed Parameters
★ Speed Measurement Method: Non-contact laser vibration measurement method, no need for any sensor to contact the measured equipment;
Measurement Range: (100~100,000) r/min, resolution 0.001 r/min;
★ Measurement Accuracy: ≤10,000 r/min: better than 0.2%; ＞10,000 r/min: better than 0.1%;
Timing Error: Better than ±0.1s;
Laser Aiming: Supported;
Wireless Testing Distance: (200~1,000) mm;
Real-time Graphs: Supports display of time-domain, frequency-domain, and historical speed graphs;
★ Operating System: Android; System Storage: 3GB (system memory) + 32GB (internal storage);
★ Communication Method: Wireless communication, supporting WiFi/4G cellular network;
Human-Computer Interaction: LCD touch screen (720×1440);
Integrated wireless operation, no computer or any data cable connection required during operation;
Power Supply Mode: Built-in rechargeable battery.
Temperature Parameters
Probe Quantity: 4 units (including two lengths, compatible with (1.5~300) mL rotors);
Temperature Measurement Range: (-40~85) ℃;
System Accuracy: ±0.10 ℃;
Temperature Resolution: 0.01℃;
Timing Error: Better than ±0.1s;
Offline Storage: Supported, each probe supports storage of no less than 100,000 sets of data;
★ Main Body Diameter: No more than 16mm, supporting built-in operation inside the rotor (speed not less than 20,000 rpm);
★ Communication Method: Wireless real-time transmission;
Power Supply Mode: Battery-powered, supporting wireless charging;
Waterproof and Dustproof: Supported.
II. Configuration List

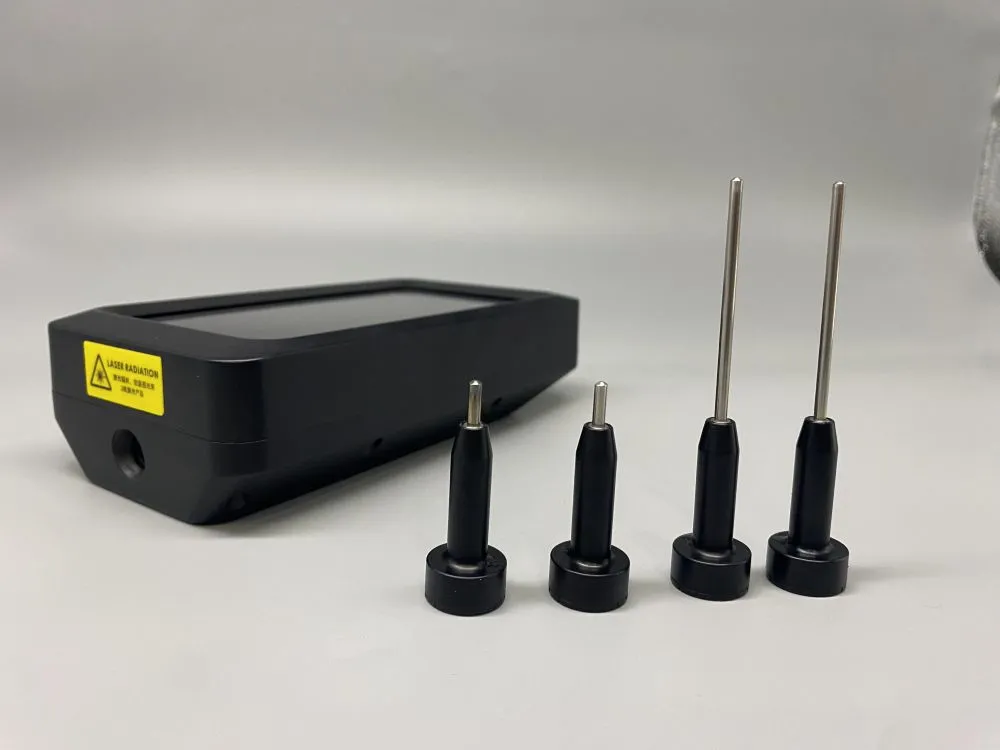

Intelligent Tachometer × 1 unit
Wireless Real-time Probe × 4 units
Dedicated Data Processing Device × 1 unit
Calibration Certificates (one each for temperature, speed, and time) — Optional Item
