medical centrifuge calibration device
Product Introduction
medical centrifuge is mainly used for purification, concentration and separation of body fluid solution. It is a kind of regular equipment for separating serum, plasma and precipitated protein in clinical examination. It is widely used in clinical and laboratory. In 2022, the State Administration of Market Supervision approved the issuance of the JJF2004-2022 "Medical
Centrifuge Calibration Specification", which stipulates the need to measure and calibrate the speed accuracy, speed relative error, speed stability, speed rise and fall rate, timing accuracy, temperature, temperature deviation, temperature rise and fall rate and other parameters of medical centrifuges.
The medical centrifuge calibration device independently developed conforms to the JJF2004-2022 "Medical Centrifuge Calibration Specification". The product is small in size and easy to use. It can meet the internal space limitation of instruments from different manufacturers. It adopts non-contact measurement and supports laser optical vibration measurement and photoelectric method. It can test and calibrate parameters such as temperature and rotation speed of centrifuges (including
ultra-high speed centrifuges) with and without observation windows.
Product Features (Temperature)
test range, high precision, small size, powerful;
probe is small in size and suitable for (1.5~300)mL rotor;
Widely adapt to different brands and models of centrifuge rotor internal space;
data real-time wireless transmission, real-time wireless view of temperature changes;
The product works independently and is not restricted by observation windows, etc;
Dual-probe operation and automatic weight trim balance;
Meet the requirements of medical centrifuge calibration specification.
Product features (speed)
product is small and portable, safe and convenient on-site operation;
non-contact measurement, while supporting laser optical vibration measurement and photoelectric method;
support the whole installation-free, free wiring, free reflective strip;
Solve the detection pain points in scenarios such as no observation window and ultra-high speed;
support Bluetooth, WiFi, 4G networking;
support online upgrade and remote assistance;
Meet the requirements of medical centrifuge calibration specification.
medical centrifuge calibration device

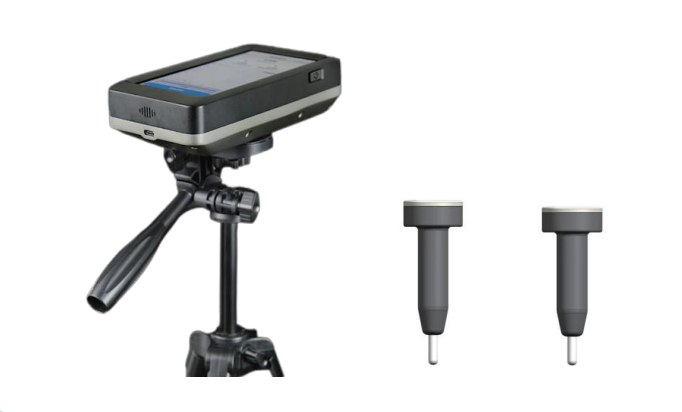

Product Picture
Product specifications (temperature)
Product Model |
MED2004TS |
MED2004TL |
Description |
Short head |
Long head |
Calibration Object |
centrifuge rotor (1.5-7.0ml) temperature |
Centrifuge rotor (10-300ml) temperature |
probes |
1 temperature measurement +1 counterweight |
1 temperature measurement +1 counterweight |
probe length |
9mm |
48mm |
probe diameter |
2.5mm |
2.5mm |
Temperature Range |
-40~85 ℃ |
-40~85 ℃ |
temperature accuracy |
± 0.10 ℃ |
± 0.10 ℃ |
Temperature Resolution |
0.01 ℃ |
0.01 ℃ |
sampling interval |
0.2s~24h |
0.2s~24h |
Offline Record |
support |
support |
Record Length |
100000 group |
100000 group |
waterproof and dustproof |
support |
support |
transmission mode |
wireless real-time |
wireless real-time |
Power supply mode |
battery, rechargeable |
battery, rechargeable |
dimensions (diameter x height) |
D16mm x L45mm |
D16mm x L84mm
|
product specifications (speed)
Product Model |
MED2004RS
|
|
|
Name |
intelligent vibration (speed) meter (host) |
photoelectric module |
Calibration Object |
Centrifuge speed |
Centrifuge (with observation window) speed |
Test Method |
non-contact optical vibration measurement |
non-contact photoelectric method
|
optical aiming |
support |
support |
support resolution frequency |
0.001Hz; speed: 0.01 r/min |
0.01 r/min |
Measurement range |
100-100000 r/min |
1-99999 r/min |
measurement accuracy |
(,≧ 10000 r/min, better than 0.1 |
better than 0.1 percent |
Test Distance |
400-1000mm |
50-200mm |
real-time curve |
support (time domain, frequency domain) |
support (speed-time)
|
Power supply mode |
rechargeable lithium battery |
AAA battery (1.5V) x 3 |
dimensions (length x width x height) |
169mm x90mm x45mm |
185mm x56mm x34mm
|
Weight |
520g |
100g |
synchronous timing |
support |
support |
Timing Accuracy |
better than ± 0.05s |
better than ± 0.05s |
operating system |
Android |
|
System Storage |
3GB (system memory) +32GB (internal storage)
|
|
wireless communication |
WiFi/4G Cellular |
|
Display |
5.5-inch LCD(720 × 1440) |
|

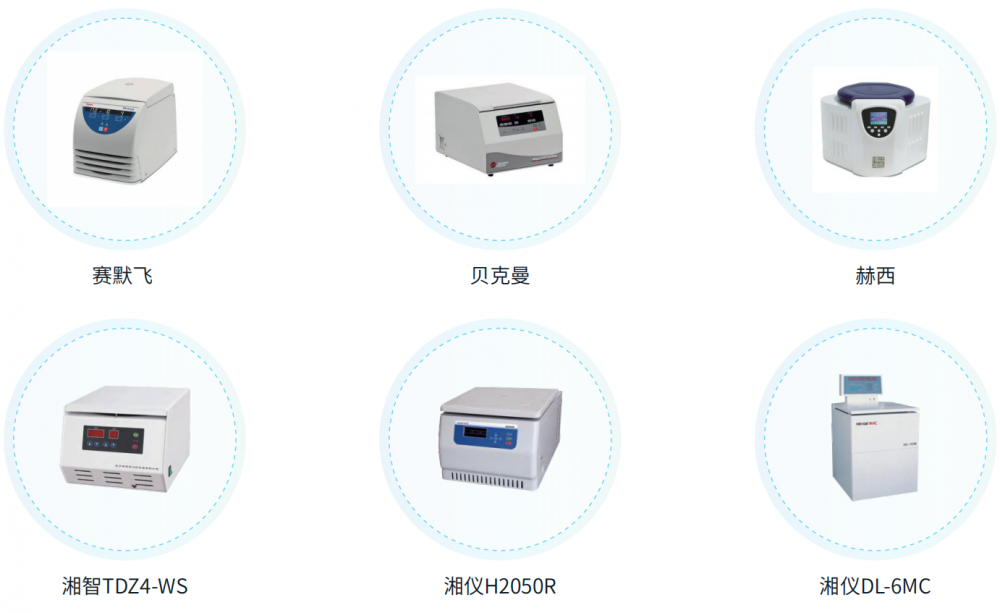

Adapted instrument
