qPCR instrument temperature calibration device
Product Introduction
LFTTC series high-precision PCR instrument temperature calibration system is a professional and serialized product independently developed by us. for PCR instrument temperature test and calibration application, which conforms to JJF 1527-2015 "Polymerase Chain Reaction Analyzer Calibration Specification".
products adopt innovative integrated design, which is light and portable while meeting high-precision temperature acquisition. It can perform real-time temperature acquisition and calibration on PCR instruments of different models and different hole numbers (384/96/60/48/32/16/8/single hole, etc.) from domestic and foreign PCR instrument manufacturers, meeting the requirements of measurement calibration institutions, biological laboratories and instrument manufacturers for temperature testing and calibration of PCR instruments.
Product Features
temperature measurement range (0~120 )°C, accuracy ± 0.05°C,Resolution 0.01 ℃

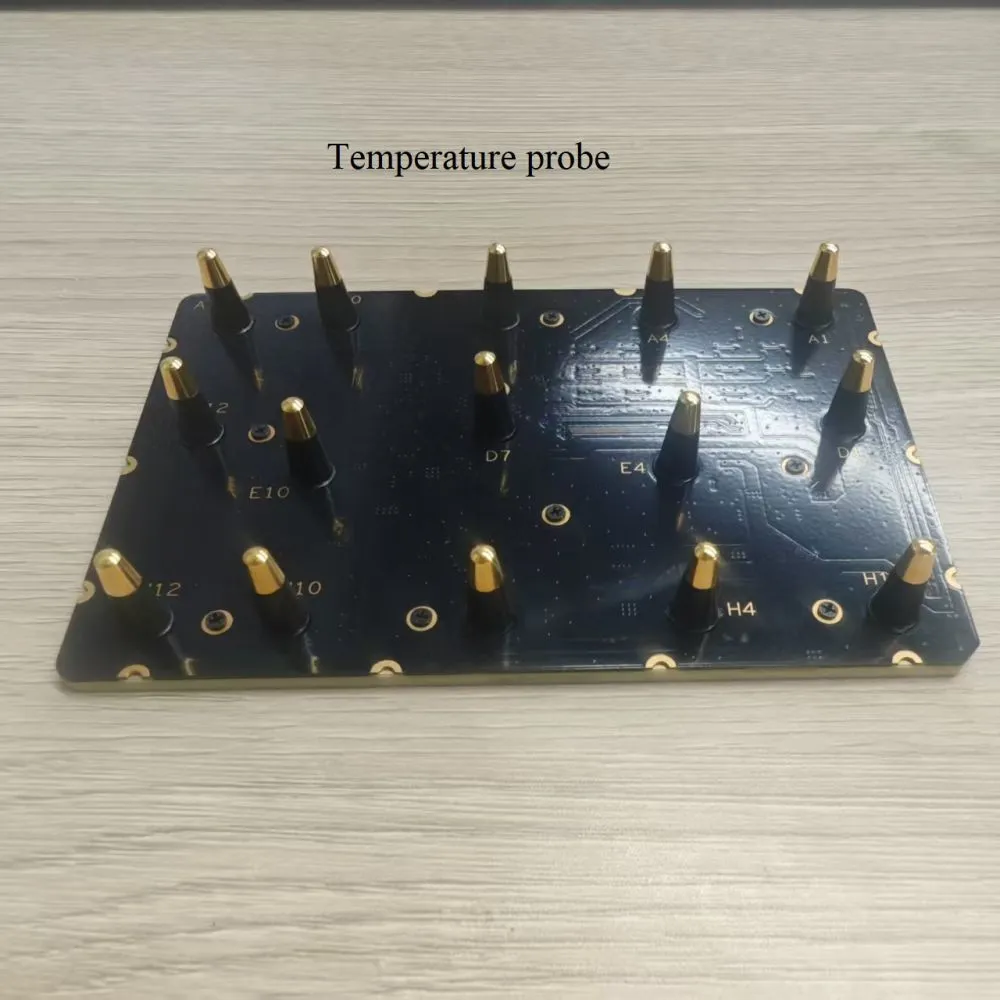

full range of temperature probes, full instrument compatibility
supports 384/96/60/48/32/16/8/single-hole PCR instrument
rich product portfolio solutions to meet different types of customer needs
better professional software that supports automatic generation of calibration reports
Complies with JJF 1527-2015 Polymerase Chain Reaction Analyzer Calibration Specification
Product Specifications
|
PCR calibrator specification sheet
| ||||||
|
Product Model
|
LFTTC96A
|
LFTTC96i
|
LFTTC48A
|
LSTTC48i
|
LFTTC32ix
|
LFTTC16ix
|
|
Calibration Object
|
96-well PCR instrument (outgoing line in any direction)
|
96-well PCR instrument (outgoing line in any direction)
|
48-hole PCR instrument (outgoing line in any direction)
|
48-hole PCR instrument (outgoing line in any direction)
|
32-hole PCR instrument (outgoing line in any direction)
|
16/32/48 hole PCR instrument
|
communication mode |
Wired |
Wireless, wired
|
wired
|
Wireless, wired
|
Wireless, wired
|
Wireless
|
|
Number of temperature measuring probes
|
15
|
15
|
12 |
12 |
8 |
4/8/12/16
|
|
hot cover temperature measurement
|
support
|
support
|
support
|
support
|
support
|
support
|
probe length |
15mm |
15mm
|
15mm
|
15mm
|
17mm
|
17mm
|
|
Temperature measurement range
|
0 to 120°C
|
0 to 120°C
|
0 to 120°C
|
0 to 120°C
|
0 to 120°C
|
0 to 120°C |
|
accuracy
|
± 0.05°C |
± 0.05°C |
± 0.05°C |
± 0.05°C |
± 0.05°C |
± 0.05°C |
|
Temperature Resolution
|
0.01°C |
0.01°C
|
0.01°C
|
0.01°C
|
0.01°C
|
0.01°C
|
|
Power supply mode
|
USB 5V/500mA
|
high temperature battery
|
USB 5V/500mA
|
high temperature battery
|
high temperature battery
|
high temperature battery
|
|
Raw Data Export
|
support
|
support
|
support
|
support
|
support
|
support
|
|
Output Report
|
support
|
support
|
support
|
support
|
support
|
support
|
