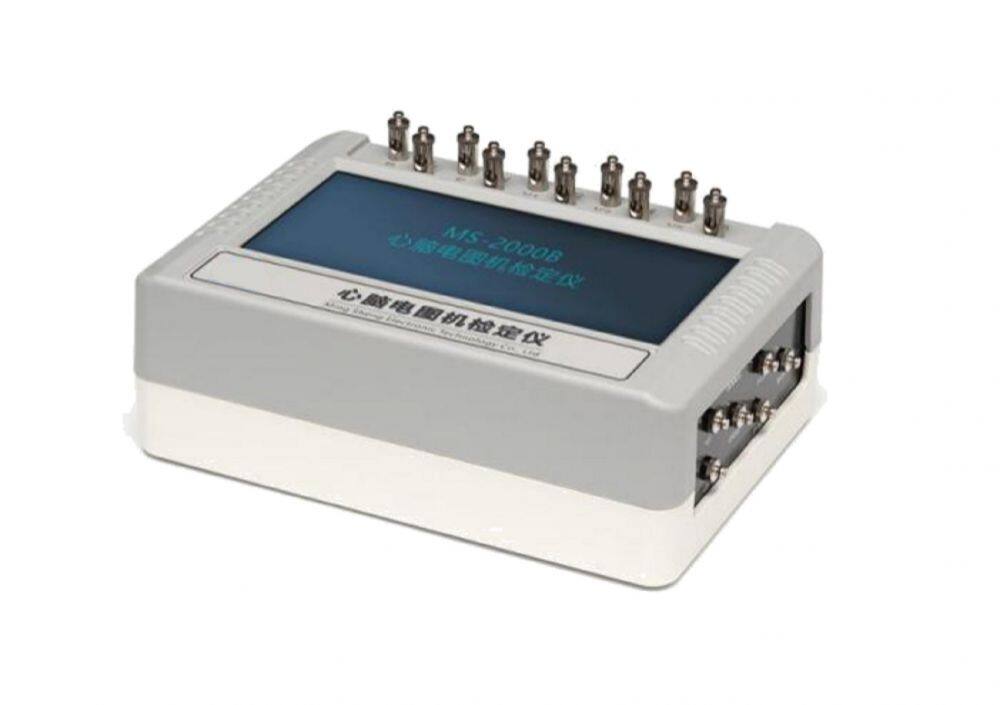

MS-2000B
Machine appearance and weight
Instrument size: 20cm*13.95cm*6.95cm (L * W * H)
Net weight: 888g0.888Kg
Packing: Exquisite leather packing
Function introduction
l Ecg basic waveform output and EEG basic waveform output, waveform synchronous output on the LCD screen, easy to observe the shape of the waveform.
l Integrated verification procedures, can be divided into items, steps for rapid detection, and to interpret the rules. It can directly output the detection signal required in the regulation, and can quickly output the verification signal to improve the detection efficiency. The integrated procedures are: JJG1041, JJG954, JJG1043, JJG1163, JJG543, JJG760, JJG1042.
l Internal integration 1000:1 signal attenuator for EEG signal detection.
l Built-in skin analog impedance and input impedance two kinds of resistance-capacitance network.
l 7 inch color display, full capacitive touch screen operation,
IPS display HD, large Angle display.
l Portable light weight, large battery capacity, conducive to hand-held operation.
l Eeg and ECG signals are independently output for easy detection.
l Ecg database file and EEG database file can be selected
Perform digital waveform output.
l You can choose up to more than 60 abnormal waveform output.
Parametric Performance
1, waveform type: square wave, sine wave, triangle wave
Waveform amplitude: 1uV~5V, amplitude error ≤1%
Frequency range: 0.01Hz~1000Hz, frequency error ≤1%
2, standard heart rate signal: 10bpm~300bpm error ≤1% or 1bpm greater
3, 1000:1 attenuator: error ≤0.3%
4, resistance and capacitance network: error ≤2.5%
ECG basic waveform type
No. | Type of waveform | Introduction |
1 | Ecg waveform | Ecg waveform that simulates the human body |
2 | Square Wave | It is used to test the curve scanning speed and time constant performance of ECG equipment |
3 | Sine wave | Used to detect amplitude-frequency characteristics and other related properties |
4 | Triangular waveforms | Used to detect amplitude-frequency characteristics or related parameters such as scanning speed |
5 | Calibrating waveforms | A standard amplitude signal used to calibrate the amplitude of ECG equipment |
6 | Sharp Corner waveform | A waveform with variable bottom width and direction for measuring heart rate accuracy and heart rate range |
7 | QRST waveform | It is used to simulate the QRST wave shape of the instrument body and detect the related performance of ST segment, T wave and R wave |
8 | Pacemaker pulse | Detection of pacing signal suppression by ECG equipment and recognition after superimposed sinusoidal waveform |
9 | Synchronous pacing | Detection of pacing signal suppression and recognition by ECG equipment |
10 | Asynchronous pacing | Detection of pacemaker signal suppression and recognition by ECG equipment |
11 | PQRST waveform | The individual components of the ECG waveform can be set separately for the signal simulation of the parameters |
12 | Superimposed signal | A superimposed composite waveform of two different waveforms of sine, triangle and QRS |
13 | Anomalous waveforms | Many types of abnormal waveforms |
14 | Waveform files | Multiple ECG database files read and output analog signals |
15 | Custom library | Multiple databases of ECG abnormal waveforms that capture the human body |
16 | Irregular heart rate | 4 Irregular heart rate detection waveforms in the mitBih database |
17 | Simulation ECG | Using a variety of waveform synthesis simulation ECG waveform |
