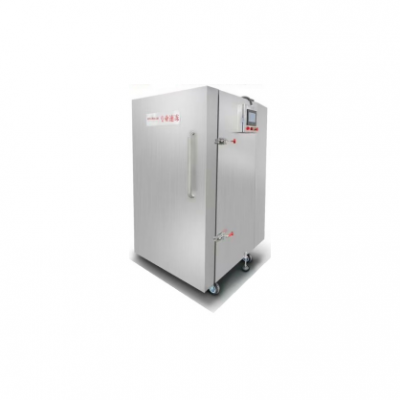

Single Cabinet Liquid Nitrogen Quick Freezer Fast Freezing Machine

Liquid nitrogen freezing is a mature food freezing technology. Liquid nitrogen quick freezer uses the ultra-low cooling capacity of liquid nitrogen at -196℃ to quickly freeze food. The fast cooling generates small and uniform ice crystals and the cell walls of food will not be destroyed. Liquid nitrogen blast freezer has a fast freezing speed and less water loss in frozen food, which completely preserves the original flavor, freshness and quality of the food, realizing the real low-temperature quick freezing of food.

Specifications:

Product name: Single cabinet liquid nitrogen quick freezer

Model No.: LNF-S1

Cabinet quantity: 1

Estimated freezing capacity: 100-200kg/h

Power: 1.5kw, 3P 380/50Hz

Working pressure: 0.5-0.8Mpa

Working temperature: RT ~ -190℃

Cooling speed: ≤20℃/min (adjustable)

Temperature control accuracy: ±‌2℃

Total tray quantity: 22

Tray size: 400*600mm

Tray gap: 5cm

Internal dimension: 600*700*1400mm

External dimension: 1190*1110*2055mm

Main body: 304 stainless steel and Polyurethane high pressure foam insulation

Control system: Touch screen PLC automatic program control

Refrigeration system:  Multi-point atomization evaporation system

More specifications are available.

Liquid nitrogen fast freezer freezes food quickly, creating fine and uniform ice crystals that do not damage cell walls of food, the original flavor, freshness and quality of the food is well preserved, for more details +8615928354487
