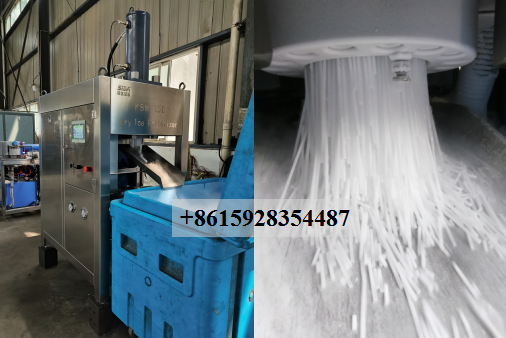

180kg/h dry ice pelletizer machine with exclusive vertical design
1. Model No.: KBM-180 dry ice pellet maker machine (exclusive vertical design, all stainless steel panels)
2. Raw material: liquid CO2 (stored in cryogenic CO2 tank, water content less than 60ppm)
3. Dry ice size: φ3mm,φ19mm
4. Capacity:
5. Dry ice density: ≥1500 kg/m3
6. Conversion rate: 40-43% (100kg Liquid CO2 can produce 40-43kg dry ice according to temperature and pressure of raw material liquid CO2)
7. Motor power: 7.5kw, 3phase 380V 50Hz
8. Run: fully automatic hydraulic operation
9. Volume of hydraulic oil tank: 110L
10. Size (L*W*H): 1150*800*1965mm
11. Weight: 650kg
Main feature:
The dry ice generator extrusion adopts a vertical arrangement, which will not produce eccentric wear. Compared with the horizontal extrusion structure, it avoids the gravity friction wear of the piston and the defect of pulling the dry ice cylinder when the horizontal cylinder moves horizontally, greatly extending the life of the dry ice cavity, piston and seals.
