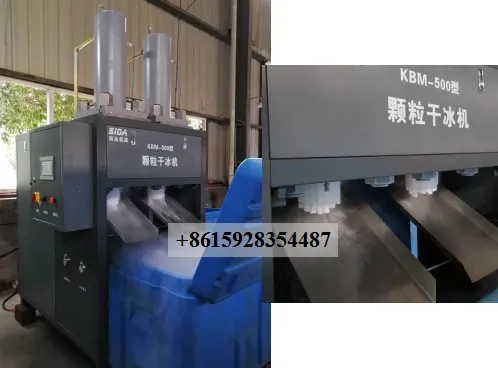

500kg/h vertical dry ice making machine with double head
Technical parameter:
1. Model No.: KBM-500 dry ice production machine (exclusive vertical design, double head)
2. Raw material: liquid CO2 (stored in cryogenic CO2 tank, water content less than 60ppm)
3. Dry ice size: φ3mm,φ19mm
4. Capacity:
5. Dry ice density: ≥1500 kg/m3
6. Conversion rate: 40-43% (100kg Liquid CO2 can produce 40-43kg dry ice according to temperature and pressure of raw material liquid CO2)
7. Motor power: 11kw, 3phase 380V 50Hz
8. Run: fully automatic hydraulic operation
9. Volume of hydraulic oil tank: 300L
10. Size (L*W*H): 1400*1100*(1670+700)mm
11. Weight: 2200kg
Main feature:
1. The dry ice generator extrusion adopts a vertical arrangement, which will not produce eccentric wear. Compared with the horizontal extrusion structure, it avoids the gravity friction wear of the piston and the defect of pulling the dry ice cylinder when the horizontal cylinder moves horizontally, greatly extending the life of the dry ice cavity, piston and seals.
2. Due to the vertical design, the combination layout of the dry ice pelletizer machine and dry ice block pressing machine is more reasonable and safe in a full auto dry ice production and packaging line.
