Small Dry Ice Maker Machine for Making 3-14mm Dry Ice Pellet

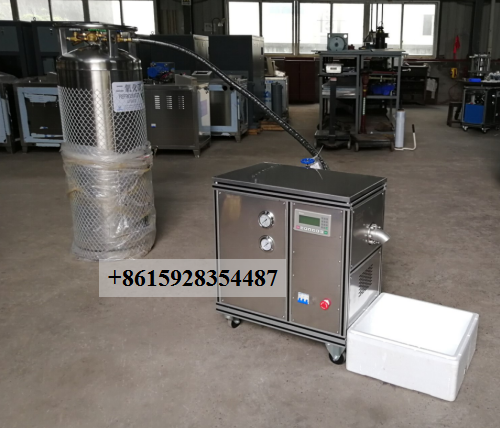

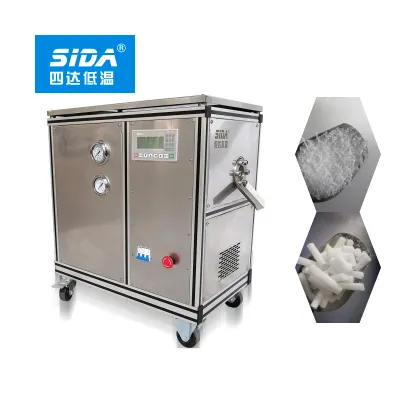

Small dry ice pellet maker machine 30kg/h

1. Model No.: KBM-30 small dry ice pellet maker (the third generation improvement version)

2. Raw material: liquid CO2 (stored in cryogenic CO2 tank or cryogenic CO2 insulated bottle, water content is less than 60ppm, carbon dioxide in steel cylinders shall not be used)

3. Dry ice size: φ3mm,φ14mm

4. Capacity:<30kg/h

5. Dry ice density: ≥1500 kg/m3

6. Conversion rate: 40-43% (100kg Liquid CO2 can produce 40-43kg dry ice according to temperature and pressure of raw material liquid CO2)

7. Motor power: 2.2kw, 3phase 380V 50Hz or 1phase 220V 50Hz

8. Run: fully automatic hydraulic operation

9. Volume of hydraulic oil tank: 20L

10. Size (L*W*H): 700*435*680mm

11. Weight: 110kg (with casters, easy to move)

Main feature:

1) The hydraulic system of this dry ice maker is designed with advanced components and imported parts. No need external cooling, the hydraulic oil temperature is also below 40℃, the hydraulic components have a long life, can run continuously for 24 hours, and the running sound is smaller than that of a washing machine, which does not affect the work of others.

2) This dry ice machine is patented by our company and is the third generation of improvement. It has eliminated previous defects and is very reliable.
