Auto Beer Filling Machine Plastic Refreshing Keg Draught Beer Keg Washer Machine
This machine characteristics :
This machine is designed for the washing and sterilizing work of all kinds of beer refreshing containers ( including stainless steel refreshing keg and draught beer keg ) . And this machine can do the works washing , sterlizing and CO2 pressure preparing automatically .

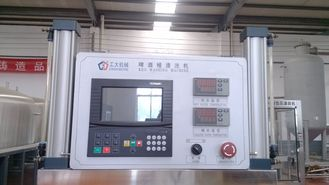

The control unit of this machine uses the LS Programmable controller and WEINVIEW human-computer interface . All of the controls parameters ( time value ) can be adjusted when it is running . This machine is easy to operate . It can wash different refreshing kegs and draught beer kegs by switch selector and changing cleaning head .
This machine is electricity saving and water saving type , it can save 50% water .
1. Technical parameter
1.1 Specification and size and main technical parameter :
Worktable size(mm): 525x640
Worktable height(mm): 660
Machine outside measurement(mm):900 x1530 x1950
Piston maximum stroke(mm): 300
Net weight(Kg): 160
Ability : 30-70 kegs/hour(10L keg)
Air consumption: 4-11.5m3/hour(10L keg)
Water consumption:0.5-1.5 m3/hour(10L keg)
Power: 1500W
Washing style: Inverted washing
Kegs’ size(mm):Diameter:ф250-500
Height:400-600 mm
:
1.2 Technical requirements :
Air pressure: 0.6 - 0.8Mpa
Cylinder pressure: 0.4 - 0.5Mpa
CO2 pressure: 0.2 - 0.3Mpa
Steam pressure: 0.15 - 0.2Mpa
Hot alkaline water temperature: 40-80℃
Hot water temperature: 40-80℃
Oxyful consistency: 0.5％
Alkaline water consistency: 1.5％
VCC: AC220V 50HZ
2． Primary structure :
Plastic keg cleaning head Stainless steel keg vleaning head
This machine is made up of stander , electric control casing , solenoid valve , pneumatic element , air blast system and water flow system etc. parts . There are two kinds of cleaning heads , one is used for cleaning stainless steel kegs , the other one is used for cleaning plastic kegs
3．Working routine :
3.1 The control unit of this machine uses theLS Programmable controller and WEINVIEW human-computer interface with time sequencing . The working routine and time have been set . Clients can adjust time parameter according to different needs . Not need one part of the working routine , please adjust relevant time parameter to 0 . Notice part 7 to know more about adjusting time parameter .
3.2 Stainless steel keg washer setting :
Compress→ →clean with clean water→ air blast →clean with hot alkaline
water→ air blast(recycle to alkaline water tank)→clean with hot water→ air blast(recycle to clean water tank)→steam sterilize→ steam pressure maintaining→ clean with sterile water→ air blast to hot water tank →CO2 preparation→ cylinder return
Compress→ →clean with clean water→ air blast →clean with hot alkaline
water→ air blast(recycle to alkaline water tank)→clean with hot water→ air blast(recycle to clean water tank)→ clean with sterile water→ air blast to hot water tank →CO2 preparation→ cylinder return
