12Oz 14Oz 16Oz Beer Bottle Capping Machine , Ss304 Bottle Filling Equipment
Can Filling-sealing 2-1 unit Machine

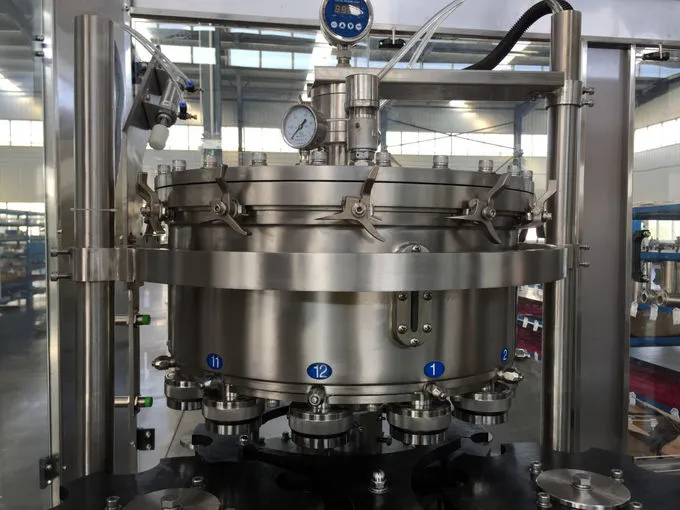

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.
The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high efficiency, low noise and smooth operation. It adopts frequency conversion stepless speed regulation and is controlled by PLC industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a same working pace.
As to sealing machine, the machine has the control system that caps only come down when there are cans and caps will not come if there is no can below to ensure the machine run normally and reduce the cover loss rate.
It's an economic equipment of basic technology but of constructive quality and professional design, that can be assembled easily by means of the labeling of its components and once assembled and connected it is plug and play, to be operated with ease in the brewing and CIP cleaning processes.
2) Technology parameter
Production capacity |
1000CPH |
Number of Filling valve |
12 |
Number of sealing valve |
1 |
Power of machine |
3KW |
Compressed air consumption |
1.2m3/h(0.3Mpa) |
Sterile air consumption |
1.8m3/h(0.4Mpa) |
Water consumption |
0.2m3/h |
PLC |
Mitsubishi or Simens |
Pneumatic control components |
AIRTAC |
Bearing Sealing Machine |
NTN |
Valve spring,Seals |
HALLITE |
Pneumatic control valves,Butterfly |
made in Taiwan |
Bearing |
FAG Germany |
Net weight |
2200 Kg |
Packed gross weight |
2500 Kg |
Measurements |
7.2CBM |
Size of the machine |
2000*1400*2100mm |
