CGET, an internationally-known brand for brewery equipment and package line.
High Capacity Beer Filling Machine Brewery Bottling Line Power AC50Hz 220V
Characteristics :

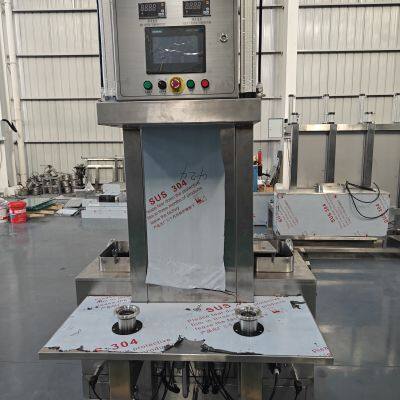

This machine is specially used for filling different kinds of beer refreshing vessel(including stainless steel, plastic refreshing keg and draught beer keg) and it can finish the filling process automatically.
The machine control unit adopts Logo of small field-programmable devices from Germany's Siemens and can experience full-process control. All control parameters (time value) can be adjusted without stopping.
main dimension and technical requirements
1.1 main dimension
Worktable size 500mm x 500mm
Worktable height 120mm
Machine outside measurement 500mm x575mm x1500mm
Piston maximum stroke 300mm
Net weight 106kg
Filling method 30~70keg/h
Keg size diameter: ф250～500mm
Height: 410～650mm
Technical parameters
Beer pressure 0.2 ---- 0.3Mpa
Air pressure 0.6 ---- 0.8Mpa
Co2 pressure 0.2 ---- 0.3Mpa
Power AC50Hz 220V
Main structure :

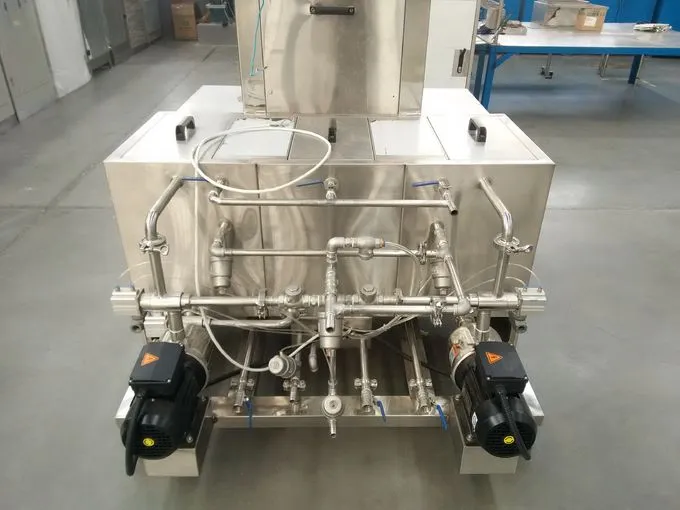

This machine includes mainly machine frame, electric control system, Solenoid valves, pneumatic component and beer recycling system. .
Working routine
The machine control unit adopts Logo of small field-programmable devices from Germany's Siemens and can experience full-process control. All control parameters (time value) can be adjusted without stopping.
3.2 The working routine: start→CO2 pressure boosting →filling →counting
