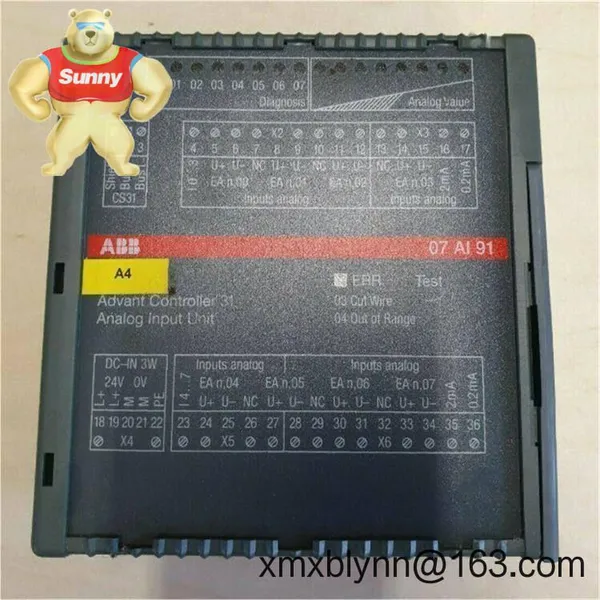

The ABB 07AI91, order code GJR5251600R4202, is an analog input module designed for ABB AC31/CS31-based control systems. It’s typically used to bring field analog signals—like 4–20 mA transmitters or 0–10 V sensors—cleanly into the controller with stable sampling and reliable filtering. From my experience, it’s a practical drop-in when you need dependable analog acquisition in legacy Advant/AC31 architectures without reworking the cabinet.
Key Features8-channel analog input (commonly 4–20 mA and 0–10 V) – Well-suited for pressure, temperature, flow, and position transmitters; channel type is typically configurable per application.
Stable, industrial-grade conversion – The module is known for consistent readings with noise-reduction that works well in grounded cabinets and mixed-signal panels.
CS31/AC31 system compatibility – Integrates with ABB 07KT9x controllers and distributed I/O over the CS31 bus, which many brownfield sites still run.
DIN-rail mounting with field-friendly terminals – Straightforward wiring and labeling reduce commissioning time in cramped panels.
Diagnostics and channel health indicators – You might notice the module makes fault-finding quicker when a loop is open or a transmitter drops out.
Long lifecycle support – In many cases, plants standardize on 07AI91 to keep mature AC31 assets productive without a full DCS/PLC migration.
| Brand / Model | ABB 07AI91 (Order code: GJR5251600R4202) |
| Function | Analog input module for AC31/CS31 distributed I/O systems |
| Signal Input Types | Commonly 4–20 mA and 0–10 V analog inputs (per-channel configuration is typical) |
| Channels | 8 AI (grouped), industrial noise immunity |
| Communication Interfaces | CS31 bus to AC31 controllers (e.g., 07KT9x series) |
| Power Requirements | Typically 24 VDC supplied via the CS31 backplane/segment |
| Operating Temperature | Commonly 0…55 °C for cabinet-installed modules |
| Installation Method | DIN-rail mount in control cabinet; screw-clamp terminal wiring |
| Typical Resolution | 12-bit class A/D conversion (typical for this series) |
Plants still running ABB AC31/Advant architectures use the 07AI91 broadly across utilities and discrete process areas. You’ll commonly see it:
Water & wastewater skids – Level, flow, and chlorine analyzer inputs where 4–20 mA is standard.
OEM machinery – Servo/position feedback and load-cell conditioning via external transducers.
HVAC & building utilities – Temperature loops and differential pressure across filters and coils.
Power generation balance-of-plant – Lube oil temperature, tank levels, and valve position monitoring.
Food & beverage lines – CIP temperature and conductivity transmitters that benefit from steady sampling.
Drop-in continuity – Keeps AC31/CS31 assets productive; no re-engineering of I/O maps in most cases.
Procurement-friendly – Availability for maintenance spares helps reduce unplanned downtime costs.
Compatibility – Works with established ABB toolchains and existing CS31 wiring; predictable commissioning.
Measurable reliability – Sites typically report stable readings and fewer nuisance trips after replacing aging AI cards.
Lifecycle strategy – A practical choice when a full platform migration isn’t budgeted this year.
Customer note: “Swapping in the 07AI91 brought our flow loops back within tolerance. No rewiring, and the CS31 controller recognized it immediately.”
ABB 07KT9x CPU modules – Core AC31 controllers that interface to CS31 I/O including 07AI91.
ABB 07AO9x analog output modules – For 4–20 mA/0–10 V control signals to valves and drives.
ABB 07DI/07DO digital I/O – Discrete input/output modules used alongside 07AI91 for mixed-signal panels.
CS31 bus couplers and power distribution – Ensures stable 24 VDC supply and clean bus segments.
Cabinet environment – Mount on DIN rail in a ventilated enclosure; keep away from high-frequency VFD cables where possible.
Power & grounding – Use a clean 24 VDC supply; bond the cabinet and maintain a single-point ground to reduce analog noise.
Wiring practices – Shielded twisted pairs for low-level signals; land shields at one end; separate analog and high-voltage wiring.
Transmitter loops – For 4–20 mA, verify loop power and polarity; open-loop detection is helpful but shouldn’t replace a loop check.
Commissioning – Scale inputs in the controller, run a two-point check with a calibrator, and log baseline readings.
Routine care – Annual terminal re-torque, dust cleaning, and a quick trend review of key loops; firmware updates are handled on the controller side.
Safety – De-energize before wiring; observe ESD handling; avoid hot-swapping unless the controller’s maintenance manual explicitly allows it.
CE compliant for EMC and safety (series-wide).
UL/cUL listing is available on many hardware revisions (check module label for exact marking).
Manufactured under ISO 9001 quality systems.
RoHS status can vary by revision and year; most later revs align with RoHS directives.
Standard 12‑month hardware warranty is typical for new or refurbished industrial spares.
If you’re refreshing a loop pack or holding critical spares for an AC31 system, the ABB 07AI91 GJR5251600R4202 seems to be the safe, low-risk choice—especially when you want predictable behavior without editing the whole I/O map.
