Help CenterABB 086339-501 – Field-Replaceable Industrial Control Module for Legacy ABB DCS Racks
Related Products
-
ABB 086345-004 – Replacement Control Module for Legacy ABB Bailey DCS RacksNegotiableMOQ: 1 Combo -
ABB 086348-001 – Legacy DCS Module for Bailey INFI 90 System SustainmentNegotiableMOQ: 1 Combo
-
ABB 086370-001 – Legacy Bailey INFI 90 Spare Module for Stable DCS MaintenanceNegotiableMOQ: 1 Combo
-
ABB 100472-012 – Plug-in Control Board for Legacy ABB Drive and DCS CabinetsNegotiableMOQ: 1 Combo
-
ABB 1MRB150003R0002 – Control/Feedback Board for ABB Drive and Motor SystemsNegotiableMOQ: 1 Combo

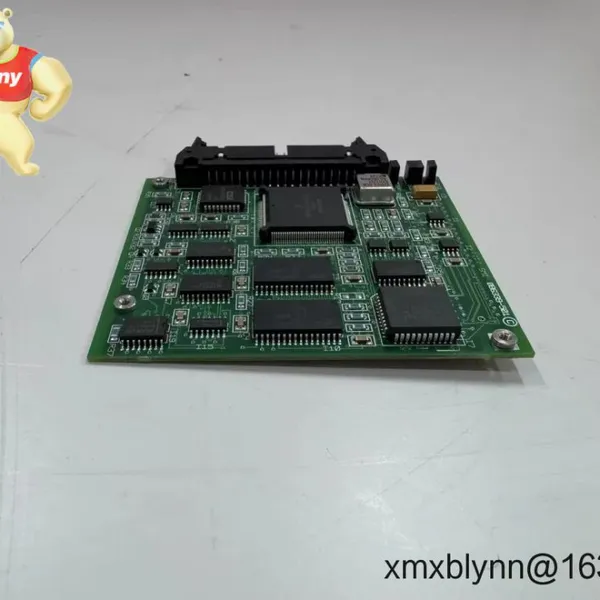

The ABB 086339-501 is a plug-in control module typically used as a like-for-like spare within legacy ABB distributed control system racks. From my experience, teams keep this part on hand to shorten downtime during planned turnarounds or unexpected trips, especially in plants running mature Symphony/INFI-90 era cabinets.
It’s designed for rack mounting with backplane power and system-bus communication, so integration is straightforward: remove the faulty card, insert the 086339-501, and restore the process with minimal reconfiguration—assuming firmware and hardware revisions match your installed base.
Key FeaturesDirect replacement form factor – Fits standard ABB DCS rack slots; no mechanical modifications in most cases.
Backplane-powered design – Draws power from the system backplane, reducing wiring clutter inside the cabinet.
System-bus connectivity – Interfaces through the proprietary ABB rack bus for fast swap-outs and consistent diagnostics.
Status indication – You might notice clear front-panel LEDs (varies by revision) that simplify troubleshooting on the floor.
Service-friendly – Field-replaceable unit; typically hot-swap is supported only when the host system allows it—most plants still perform controlled power-downs.
Long-term lifecycle support – Frequently supplied as new surplus or fully tested remanufactured stock to keep legacy systems running.
| Brand / Model | ABB 086339-501 |
| Power Requirements | Backplane-powered (supplied by ABB rack power supply; no external feeder) |
| Form Factor | Rack-mounted plug-in module (field-replaceable unit) |
| Operating Temperature | Typically 0 to +55°C (consult your cabinet specification) |
| Signal I/O Types | Varies by hardware revision; interfaces via the system backplane and cabinet termination assemblies |
| Communication Interfaces | Proprietary ABB rack/system bus |
| Dimensions & Weight | Standard ABB DCS card length; typical single-slot width (weight dependent on board revision) |
| Installation Method | Slides into card guides; secures to the rack front with captive screws |
Plants running legacy ABB DCS platforms tend to standardize on part-number-based replacements like the 086339-501 to keep instrumentation strategies intact. You’ll typically see it in:
Power generation (steam turbines, balance-of-plant)
Oil & gas (upstream and downstream units that prefer like-for-like spares)
Chemicals and petrochemicals (continuous process lines)
Pulp & paper, metals, and mining (legacy control cabinets with scheduled modernization roadmaps)
Operational continuity – Drop-in replacement helps avoid re-engineering or re-loop checkout.
Lower downtime risk – Fast swap during maintenance windows; technicians know the form factor and procedure.
Cost control – In many cases, tested surplus or reman variants reduce lead time and total cost of ownership.
Compatibility – Designed to work within ABB rack ecosystems; wiring and termination typically remain unchanged.
Supportability – Access to test reports and revision checks makes it easier to meet site QA requirements.
Installation tips
Power down the affected rack unless your specific system procedure certifies live swap; many facilities still choose a controlled shutdown.
Use ESD protection; handle the card by edges and align firmly with card guides before seating into the backplane.
Verify backplane connector cleanliness and cabinet earthing; poor ground seems to be a common root cause of intermittent faults.
Match firmware/hardware revisions where required by your controller strategy; keep a record in your CMMS.
Routine maintenance
Quarterly cabinet inspection for dust and airflow; keep filters clean and maintain recommended ventilation.
Check front-panel LEDs or diagnostics during rounds; log any sporadic faults for trend analysis.
Firmware policy: update only if required for compatibility or security; otherwise, keep the same rev as the installed base.
Quality & CertificationsOriginal ABB manufacturing standards; CE conformity is typical for modules in this class.
UL cabinet installation practices generally apply; RoHS status may vary by vintage.
Units are usually supplied fully tested with a functional test report; warranty coverage is commonly 12 months for refurbished stock and varies for new surplus.
One thing I appreciate is how predictable the swap time is—most teams can replace an 086339-501 during a short outage window. A maintenance supervisor at a combined-cycle plant shared that keeping two spares per cabinet felt “just right” for their reliability targets, especially when supply chains tightened.
Send Inquiry to This Supplier
