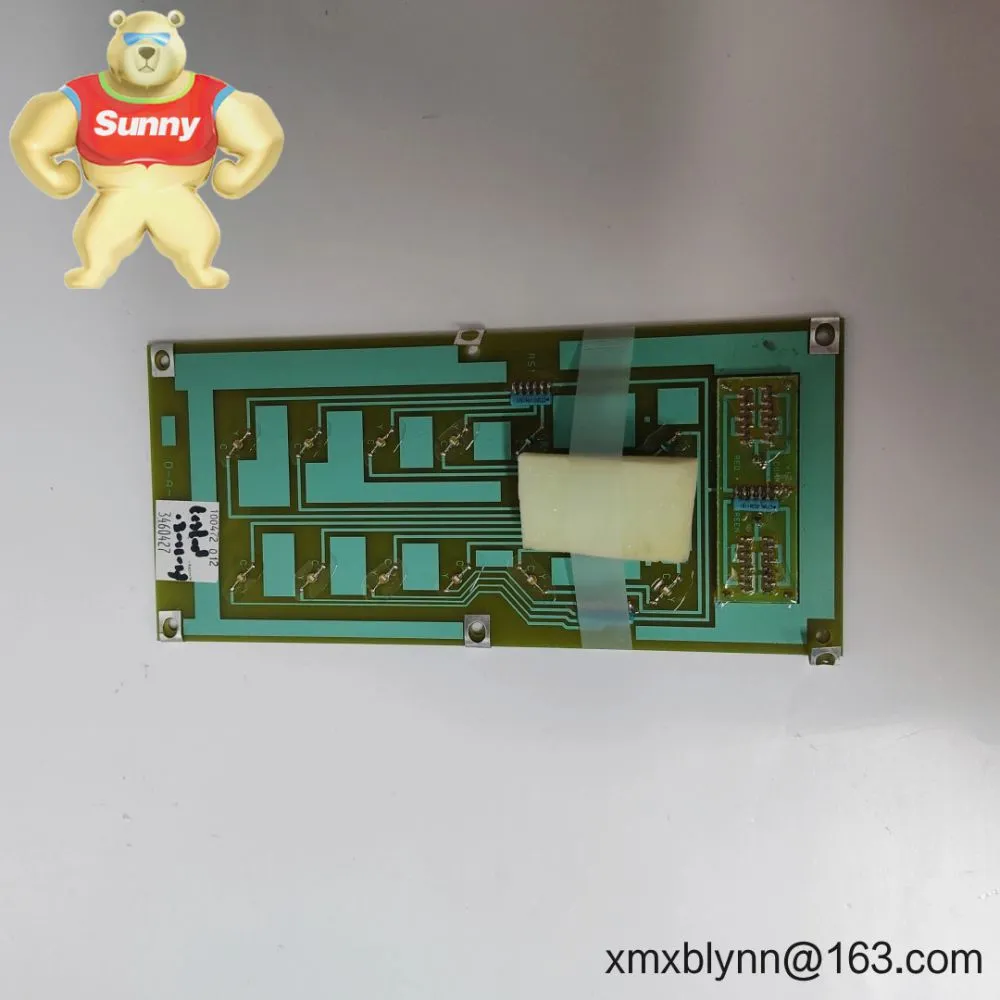

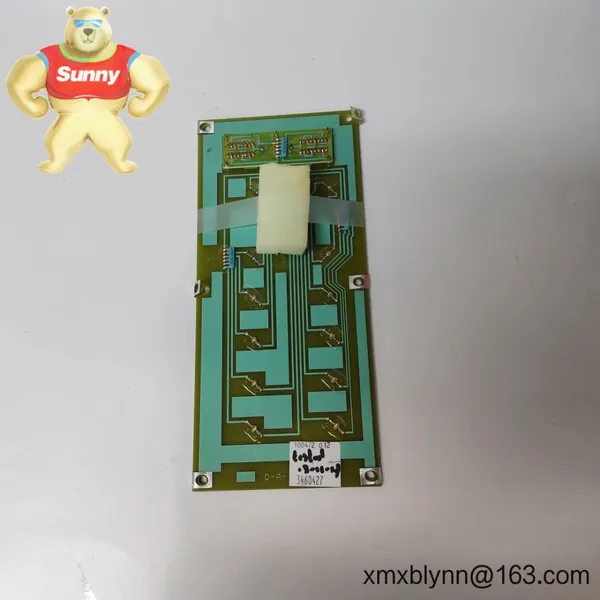

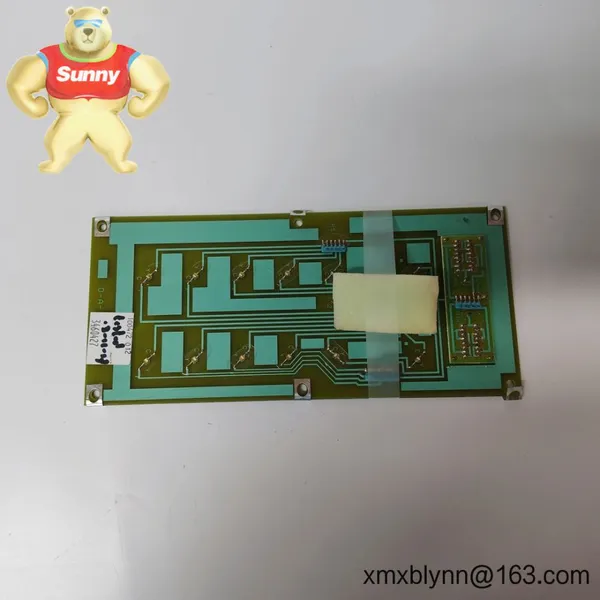

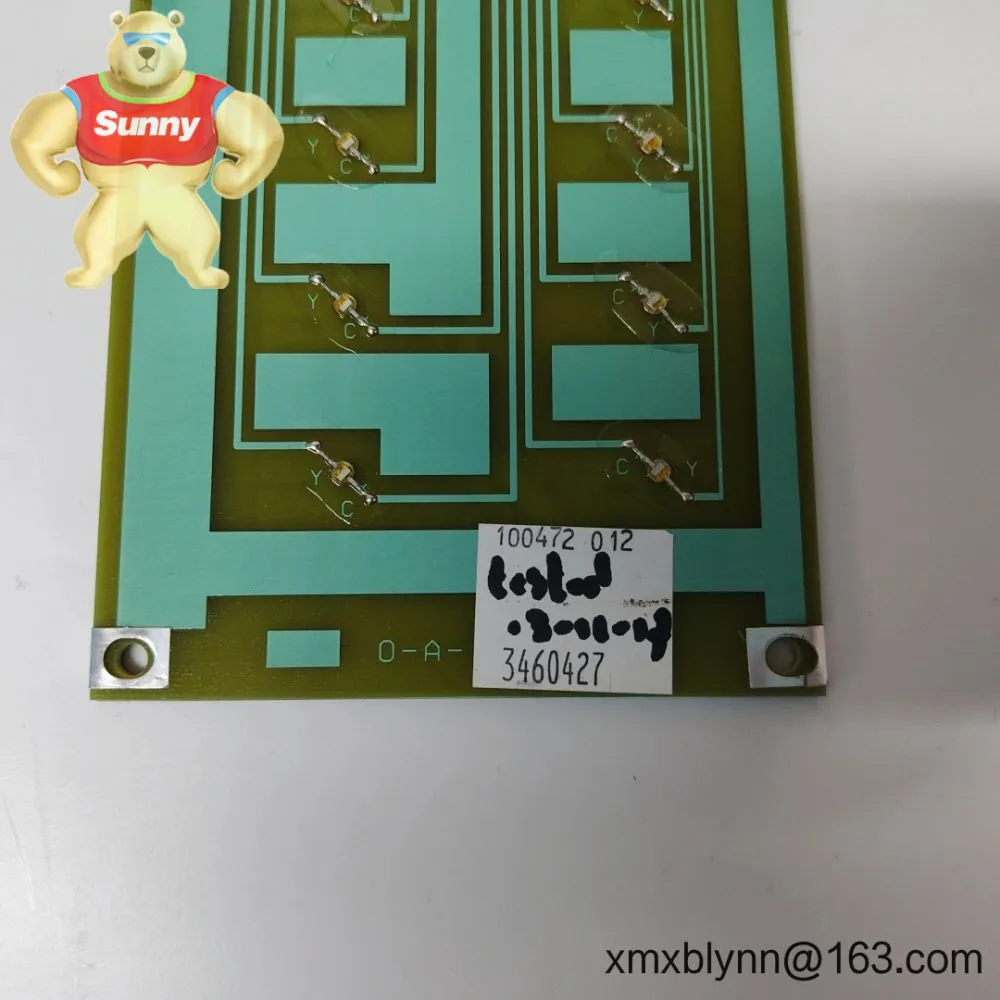

The ABB 100472-012 is a plug-in board assembly used as a form-fit-function replacement in many legacy ABB control, drive, and cabinet-based automation systems. From my experience, plants keep this part in inventory to cut unplanned downtime and avoid costly rewiring when a slot-level board fails. It typically slides into an existing backplane, draws power from the rack, and restores the original signal/logic function without process changes.
Key FeaturesForm-fit-function compatibility – Designed as a direct replacement for the original ABB slot without modifying the cabinet or field wiring.
Backplane-powered – No external PSU needed; power is supplied via the host rack (in most cases 5 VDC and/or ±12 VDC, depending on revision).
Integrated diagnostics – Status indicators and test points are commonly available, helping technicians verify board health quickly.
ESD-safe construction – Assembly is designed for industrial environments; handle with grounding straps during installation.
Traceable part coding – Board/assembly labels and revision codes simplify documentation and future replacements.
Drop-in lifecycle support – Useful for extending the service life of ABB legacy systems where a full upgrade is not immediately practical.
| Brand / Model | ABB 100472-012 |
| Category | Plug-in control/IO interface board for ABB cabinet systems (legacy spare part) |
| Power Requirements | Backplane supplied; 5 VDC typical (exact rails may vary by system slot and revision) |
| Signal I/O Types | Backplane bus and edge connector; board function depends on the cabinet position and system configuration |
| Communication Interfaces | Proprietary ABB backplane interface (no external network ports on the board face in most cases) |
| Operating Temperature | 0 to 55 °C typical control cabinet environment (follow host cabinet spec) |
| Installation Method | Slide-in card; retained by faceplate screws or latches; ESD precautions required |
| Dimensions & Weight | Compact plug-in module; Eurocard-style form factor is common (specifics vary by revision) |
Plants typically deploy the ABB 100472-012 to keep mature ABB control platforms productive without a cabinet redesign. You might notice that it’s often stocked by maintenance teams who run 24/7 processes and can’t afford lengthy migrations.
Metals and rolling mills – drive cabinet board replacement during planned outages
Pulp & paper – maintaining DCS and drive interface integrity in distributed racks
Chemicals & refining – sustaining interlocks and IO conditioning in hazardous-area rated cabinets (follow site certification rules)
Power generation – life-extension of excitation/aux systems where the original slot-based hardware is still in service
Material handling & intralogistics – quick board swaps to minimize conveyor downtime
Minimized downtime – Drop-in replacement helps restore operations fast; no field rewiring in most cases.
Risk reduction – Keeping function identical to the original slot lowers the risk of software revalidation.
Lifecycle continuity – Extends service life of legacy ABB systems while you plan migrations on your timeline.
Quality assurance – Units are typically available tested with full traceability; lot and revision data aid compliance.
Spares strategy – Affordable stocking option for critical lines; many sites keep one board per cabinet as a hot spare.
A maintenance supervisor at a steel plant summed it up well: “We swapped the 100472-012 during a night shift, powered up, and were back in spec in under an hour.”
Installation & MaintenanceCabinet environment – Install in a clean, ventilated industrial enclosure; maintain ambient within the host system’s rated temperature and humidity.
ESD handling – Use wrist straps and antistatic packaging; avoid touching components and connector pins.
Power-down procedure – Isolate cabinet power and discharge residual energy before removing the old board.
Slot verification – Match slot position and part/revision code with site documentation; some systems require firmware or configuration alignment.
Wiring & backplane – Inspect edge connectors for contamination; clean with approved contact cleaner if required.
Routine care – Quarterly visual checks, dust removal with dry air, and periodic connector reseat during planned downtime keep contacts reliable.
Spares policy – Store a sealed spare in controlled conditions; record serial and revision in the CMMS for traceability.
Typically conforms to CE and RoHS directives when supplied through standard channels
Production and test processes aligned with ISO 9001 quality management (supplier dependent)
UL/cUL usage depends on the host cabinet certification and installation context
Warranty: commonly offered 12 months for repair/replace coverage (terms vary by supply source)
If you can share your cabinet type, firmware expectations, or the original slot’s function, we can verify compatibility of ABB 100472-012 against your installed base and confirm the exact revision you need.
