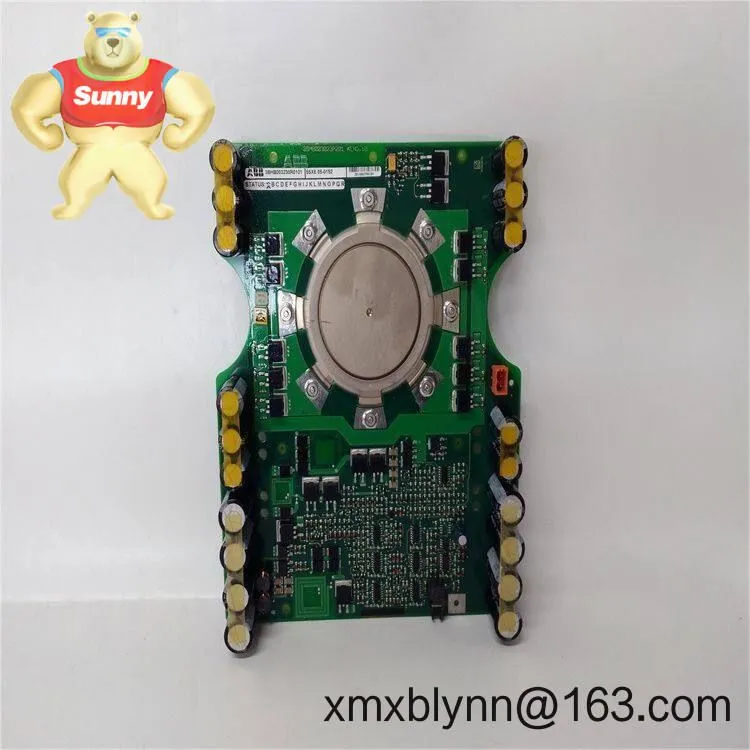

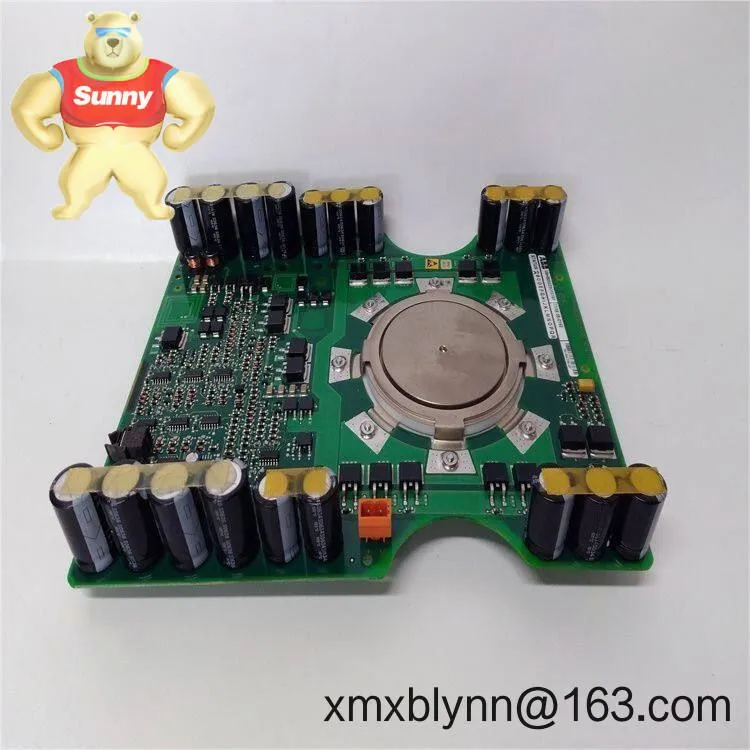

The ABB 5SHY35L4522 is a dedicated IGCT gate unit engineered for reliable switching of ABB press-pack IGCTs in medium-voltage drives and high-power converters. From my experience, it’s chosen when teams need robust fiber‑optic command, precise turn‑on/turn‑off control, and stable protection behavior under heavy load conditions. It typically fits into existing ABB IGCT stacks as a form‑fit‑function spare, minimizing downtime during maintenance or retrofit work.
Key FeaturesDedicated IGCT drive control – Provides the high gate current and tailored drive profiles an IGCT needs for fast, clean switching and safe turn‑off.
Fiber‑optic command and feedback – You might notice that fiber links greatly reduce EMI susceptibility in MV cabinets and simplify isolation.
Integrated protection logic – Fault detection, interlocks, and a coordinated soft turn‑off sequence help the stack ride through abnormal events.
24 VDC auxiliary supply (nominal) – Common control voltage in MV drive panels; simplifies spare part logistics in many plants.
Rugged, serviceable design – Built for heated, dusty environments found in steel, mining, and marine applications, with practical connectors for fast swap‑outs.
Form‑fit‑function spare – In many cases, drops into ABB IGCT converter assemblies with minimal rework, supporting fast MTTR.
| Brand / Model | ABB 5SHY35L4522 |
| Product Type | IGCT Gate Unit (gate driver for press‑pack IGCTs) |
| Power Requirements | 24 VDC nominal auxiliary supply (typ.). Use a clean, regulated source. |
| Signal I/O Types | Fiber‑optic Rx/Tx for firing/feedback; low‑inductance gate connection to IGCT; discrete power/monitoring connectors. |
| Communication Interfaces | Fiber‑optic interface for robust, galvanically isolated control in MV environments. |
| Installation Method | Panel/cabinet mounting, positioned close to the press‑pack IGCT stack to minimize loop inductance; follow ABB stack hardware guidance. |
| Operating Temperature | Typical control‑cabinet ambient 0…+50 °C; verify exact limits in the ABB datasheet for your build. |
| Dimensions & Weight | Compact board‑level module designed for integration alongside IGCT stacks; consult mechanical drawing for exact footprint. |
| Compatibility | ABB IGCT converter assemblies (4.5 kV‑class common); match to your specific IGCT type and stack configuration. |
Medium‑voltage drives for oil & gas, metals, mining, cement – especially where uptime and predictable protection behavior matter.
Traction and marine propulsion converters, where fiber‑optic control and rugged design are valued.
Grid‑facing power electronics (STATCOM/FACTS, HVDC sub‑assemblies) that demand low noise susceptibility.
Large wind turbine converters and test benches using IGCT stacks for high cyclic loads.
Reliability under stress – The 5SHY35L4522 is built for the kinds of transients that MV systems see during grid and load events.
Lower risk in spares strategy – Form‑fit‑function replacement for installed ABB systems typically shortens outage windows.
Interoperability – Fiber‑optic triggering plays nicely with existing ABB control racks and reduces EMI headaches.
Lifecycle support – Access to ABB documentation, proper test procedures, and service routines cuts commissioning time.
Cost of ownership – Stable switching and protection behavior can extend IGCT stack life, which seems to be where real savings show up.
“We swapped in 5SHY35L4522 units during a planned stop on a metals line. No re‑engineering, just clean connectors and fiber check. Start‑up current spikes dropped and trips disappeared,” noted a maintenance lead at a steel mill. That mirrors what we’ve seen in several retrofit cycles.
Installation & MaintenanceCabinet environment – House the unit in a closed, ventilated MV cabinet. Keep ambient within typical control limits and avoid conductive dust buildup.
Wiring and layout – Route the gate lead with minimal loop area. Maintain correct creepage/clearance, and respect fiber‑optic bend radius.
Grounding/EMC – Star‑point grounding and short bonding straps help. Separate power and signal harnessing when possible.
Power quality – Use a clean 24 VDC supply with adequate hold‑up and filtering; brownouts can trigger nuisance trips.
Routine checks – Inspect connectors, fiber ends, and cooling airflow quarterly. Lightly clean dust; avoid solvents on conformal coat.
Functional tests – Perform firing tests during planned outages. Update firmware if applicable to your board revision and keep a record of parameter sets.
Safety – Lockout/tagout, discharge DC link, and follow ESD precautions. IGCT stacks retain energy even after shutdown—wait the recommended time.
Manufactured under ISO 9001 quality systems.
Typically compliant with CE directives for EMC and safety when installed per ABB guidelines.
RoHS alignment for electronic assemblies, as commonly applied to ABB control modules.
Warranty: standard manufacturer warranty terms apply; many users plan for 12 months on spares—confirm the exact policy with your order.
If you’re matching the 5SHY35L4522 to a specific IGCT type or drive family, share the converter rating, IGCT part code, and cabinet layout. We can double‑check fiber pinouts, auxiliary supply details, and mounting clearances so it works right the first time.
