Conical Fermentation Tank Conical Brewing System Beer Brewing Equipment
CGET, over 20 years brewery equipment manufacturing history.
big large brewery turnkey brewery complete brewery whole plant

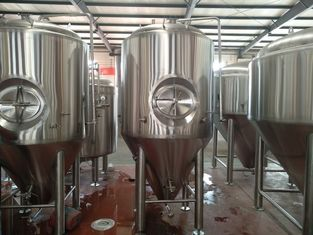

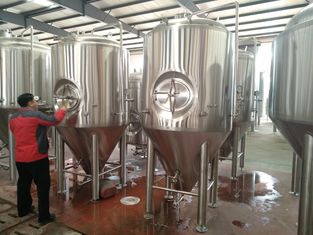

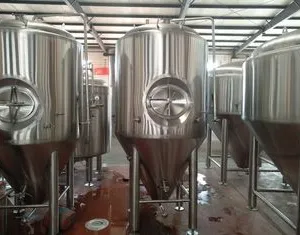

Fermentation tank, conical tank, pressurized
bright beer tank for maturation, jacketed, glycol cooling, stainless steel
Take a 25HL fermenter as example, its specifications is as follows:
1. Working volume:25HL, with 25% head space ;
2. Material SUS304
3. Design pressure 30 psi , using pressure:15psi;
4. Racking Arm and discharge port with butterfly valve and fittings;
5. PLC control, dimple plate cooling jacket.
6. Insulation thickness: 100mm; Inner tank thickness: 3mm;
7. CIP arm and spray ball

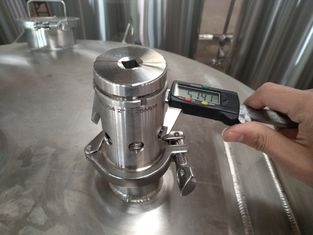

8. Release and breath valves
9. Side manway
10. Pressure gauge & Thermometer & Sample valve.
11. Dual zone dimple cooling jacket with glycol inlet and outlet;
12. Four legs with brace and adjustable bolt;
13. Interior of tank is mechanical polished, inner body polishing ratio ≦0.4μm. Out plate surface protection welding line Belt Sander Polished.
14. With valves and accessories matched.
15. TIG welding with inert gas ARGON 100% -
16. All the pipes and pieces in direct contact with the product will be SUS304 stainless steel sanitary grade food. -
17. All connections between pipes and tanks will be Tri clamp
18. Four stainless steel legs, with feet for leveling and height adjustment, base plate with two holes for fixing to the floor; with reinforcements between the legs. -
19. With lifting lug on top of tank
Control system specification:
1. Display degree together
2. Siemens Brand PLC and touch screen
3. PLC control system;
4. Control the temperature of the fermetner and bright beer tanks;
5. Control the temperature of the cooling system
6. Control the chiller for glycol tank
7. Brewkettle temperature control
8. Mash tank temperature control
9. Lauter plow motor VFD
10. Hot liquor tank temperature control
11. All pump and motor controls
12. Vessel light controls
