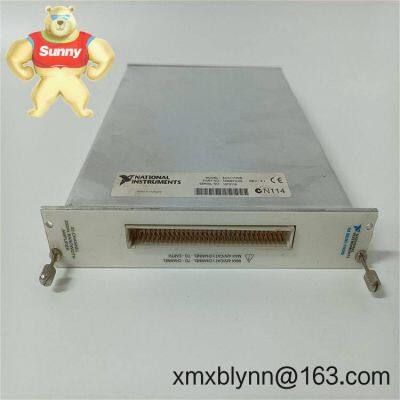

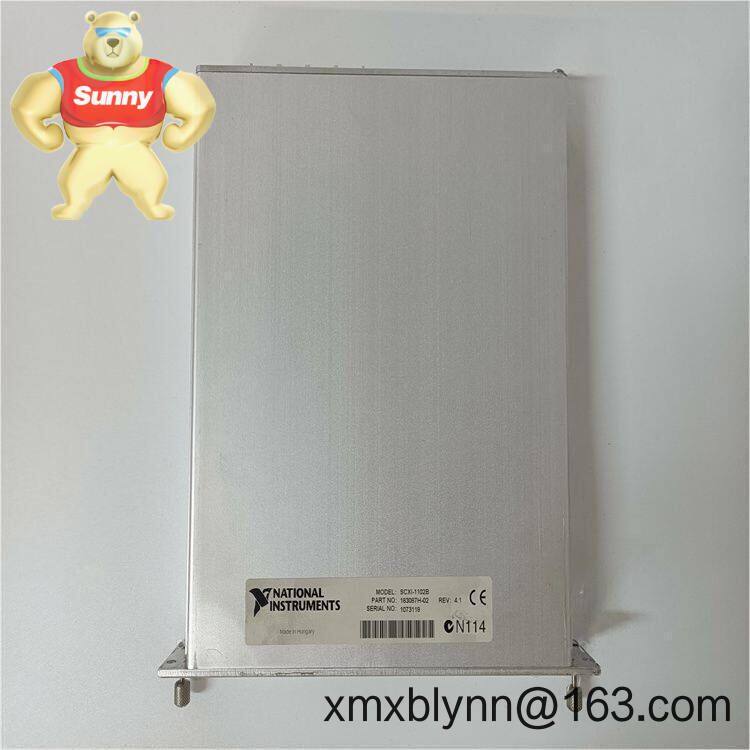

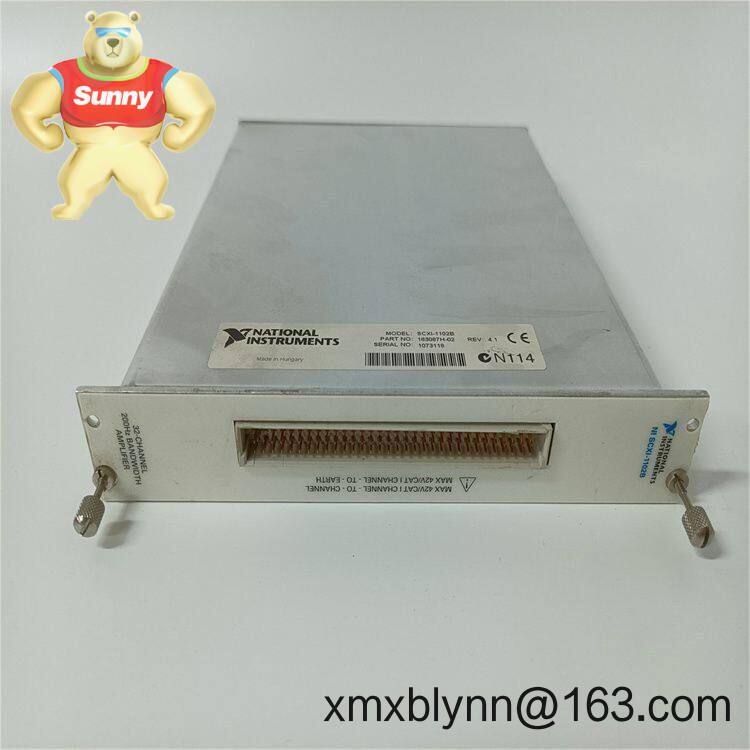

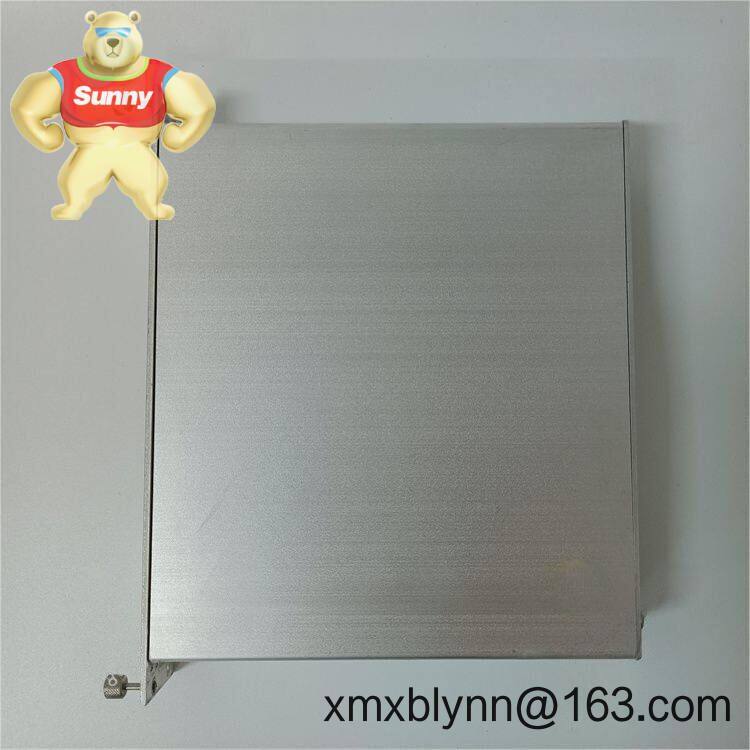

National Instruments SCXI-1102B – 32‑Channel Thermocouple/Low‑Level Input Module for SCXI Systems

The SCXI‑1102B is a 32‑channel analog input module designed for temperature and low‑level voltage measurements within NI’s SCXI chassis. It pairs especially well with isothermal terminal blocks for stable thermocouple readings and offers built‑in filtering to help tame power‑line and environmental noise. From my experience, it’s a practical choice when you need high channel density without rebuilding your DAQ stack.

Typical use cases include multi-point temperature mapping on test stands, environmental chambers, battery pack monitoring, and general R&D where mV‑level signals need clean, multiplexed acquisition routed to your DAQ device.

• 32 analog input channels – High channel density for thermocouple arrays and other low‑level signals in a single SCXI slot.

• Optimized for thermocouples – Works seamlessly with isothermal terminal blocks (e.g., SCXI‑1303) for stable junction temperature and CJC, which, in many cases, improves accuracy.

• Per‑channel lowpass filtering – Helps reduce 50/60 Hz interference and high‑frequency noise so slow‑changing temperatures aren’t buried under electrical chatter.

• Multiplexed to your DAQ – The module conditions and routes signals to the DAQ device via the SCXI backplane; sampling throughput depends on your chassis and DAQ card.

• Front‑end signal conditioning – mV‑level measurement capability with instrumentation‑grade amplification for small signals that typically come from thermocouples.

• Flexible terminal block options – Choose general‑purpose (SCXI‑1300) or isothermal/CJC (SCXI‑1303) depending on accuracy and wiring needs.

• Tight SCXI ecosystem integration – Compatible with SCXI‑1000/1001/1000DC chassis and common DAQ interfaces, including E/M/X Series via the backplane or SCXI‑1600 USB.

•


• Automotive and battery testing – Multi‑point pack temperature and fixture thermal profiling during charge/discharge cycles.

• Environmental chambers – Chamber mapping with dozens of thermocouples for product qualification or HALT/HASS‑type runs.

• Process monitoring – Furnaces, ovens, and reactors where slow‑changing temperatures demand noise‑reduced readings.

• R&D labs and academia – Flexible, budget‑friendly channel expansion when you already run NI DAQ hardware.

•


• Channel density – 32 channels per slot reduces cabinet footprint and wiring complexity compared with scattered stand‑alone loggers.

• Noise performance – Integrated filtering and instrumentation‑grade front end typically deliver steadier traces in electrically busy labs.

• Ecosystem fit – Works with existing SCXI chassis and NI DAQ cards; you can extend systems without retraining teams or rewriting everything.

• Total cost – In many cases, leveraging your current NI stack (LabVIEW, DAQmx) keeps integration costs and risk down.

• Field‑proven – A test engineering lead told us they swapped two racks of mixed gear for one SCXI chassis with SCXI‑1102B modules and cut debug time “by half” thanks to simpler wiring and cleaner signals.

• Cabinet & chassis – Mount in an SCXI‑1000/1001/1000DC chassis with adequate airflow. Keep ambient within the typical 0–50 °C range.

• Terminal blocks – For thermocouples, the SCXI‑1303 isothermal block with CJC usually yields more stable readings; the SCXI‑1300 suits general wiring or mixed signals.

• Wiring practices – Use thermocouple‑matched extension wire, avoid ground loops, and route high‑voltage lines away from low‑level signal bundles. Twisting pairs often helps.

• Calibration – Calibrate on a regular cycle (many labs choose annual). If you swap terminal blocks or rewire extensively, a quick verification helps catch offsets early.

• Software & firmware – Keep your NI‑DAQmx driver and, where applicable, chassis/USB interface firmware current for best stability and channel scanning performance.

• Cleaning – Lightly dust front terminals and ensure screw connections stay tight; oxidation and loose lugs are common sources of drift in long runs.

• Typically conforms to CE and RoHS for electronic test equipment; UL safety compliance may apply at the chassis level.

• Manufacturer’s standard warranty is commonly one year; extended calibration and service plans are available in many regions.

• Traceable calibration options support regulated industries (you can align intervals with your quality system).

One thing I appreciate is how the SCXI‑1102B keeps legacy systems productive: you can add channels without changing your DAQ card or abandoning existing test code. If that’s the kind of incremental upgrade you’re planning, this module tends to be a safe bet.
