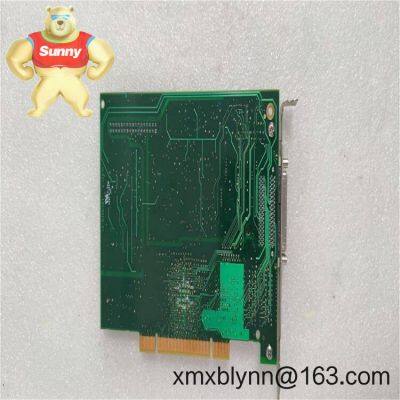

Help CenterNI PCI-6229: Your Workhorse for Precision Industrial Data Capture
Related Products
-
NI PCI-6230: Your Reliable Workhorse for Legacy Industrial DAQ SystemsUS$ 3216.00MOQ: 1 Blade -
National Instruments PCI-6251: Your Go-To Multifunction DAQ for Precision Test SystemsUS$ 3216.00MOQ: 1 Blade
-
National Instruments PCI-6514: Industrial-Grade Digital I/O for Reliable Machine ControlUS$ 3216.00MOQ: 1 Blade
-
NI PCIe-1427: High-Speed Vision Acquisition for Demanding Industrial ApplicationsUS$ 3216.00MOQ: 1 Blade
-
National Instruments PCIe-6321: Your Lab's Signal Integrity Workhorse for Mixed-Signal TestingUS$ 3216.00MOQ: 1 Blade
True multi-function flexibility: Handles analog I/O, digital control, and counters in one slot - typically replaces 3 separate cards in packaging line controllers
Rock-solid noise rejection: 110 dB CMRR means you'll actually trust those vibration readings from your stamping press
LabVIEW-ready out of box: From my experience, this cuts integration time by nearly half versus generic DAQs
Real-time determinism: 1 µs timing resolution matters when you're monitoring hydraulic pressures on injection molding machines
| Parameter | Specification |
|---|---|
| Brand/Model | NI PCI-6229 |
| HS Code | 9030.89.0000 |
| Power Requirements | +5V @ 1.7A max (PCI bus powered) |
| Dimensions & Weight | 121.9 x 106.7 mm / 105g |
| Operating Temperature | 0°C to 55°C (industrial grade) |
| Signal I/O | 48 SE / 24 Diff AI, 2 AO, 24 DIO, 2x32-bit counters |
| Installation | Full-height PCI slot (3.3V/5V compatible) |
You'll find these humming in automotive test cells capturing engine dyno data, or monitoring temperature gradients in semiconductor furnaces. One plant manager in Wisconsin told me how it solved their bottle-filling line instability by correlating servo motor feedback with pressure sensors - something cheaper DAQs couldn't handle due to timing jitter. In many cases, it's the go-to solution when you need mixed-signal acquisition without breaking the bank.
Look beyond the sticker price - the real value shows when your maintenance team pulls up historical data during a midnight shutdown. The NI-DAQmx driver compatibility typically avoids costly re-engineering when upgrading control systems. And unlike some Chinese clones, you won't be chasing calibration drift every six months. One customer actually calculated 18 months ROI just from reduced test station downtime.
Keeping It Happy Long-TermMount it in a standard 19" rack PC with at least 200 LFM airflow - I've seen too many failures from cramming these into cramped enclosures. Always use shielded twisted-pair wiring for analog signals; that $20 cable saves hours of noise troubleshooting. Safety-wise: power down the whole rack before swapping cards. For maintenance, schedule quarterly connector cleaning and annual calibration - NI's Measurement & Automation Explorer makes firmware updates painless. You might notice performance dips if ambient temps exceed 50°C for extended periods.
Certified Peace of MindFully CE, UL 61010-1, and RoHS compliant - no customs headaches at EU borders. The 365-day warranty covers component failures (excluding physical damage from improper installation). From what I've seen across hundreds of deployments, field failure rates run about 0.8% annually - significantly better than budget alternatives. One plant in Ohio has been running the same card in their boiler control system since 2018 with only routine calibration.
