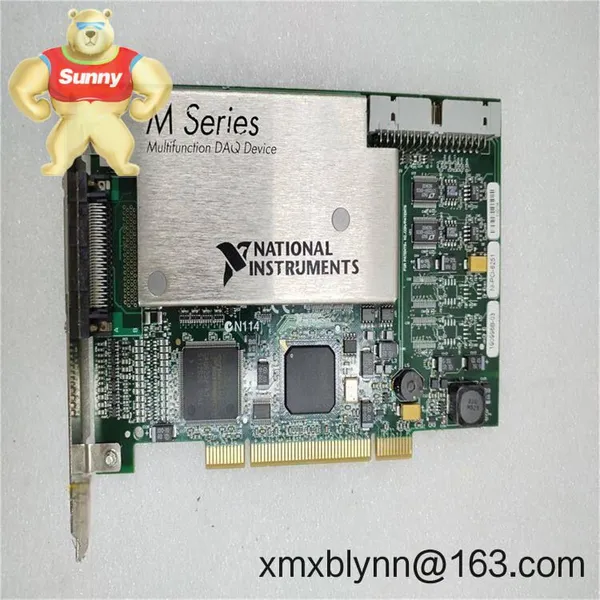

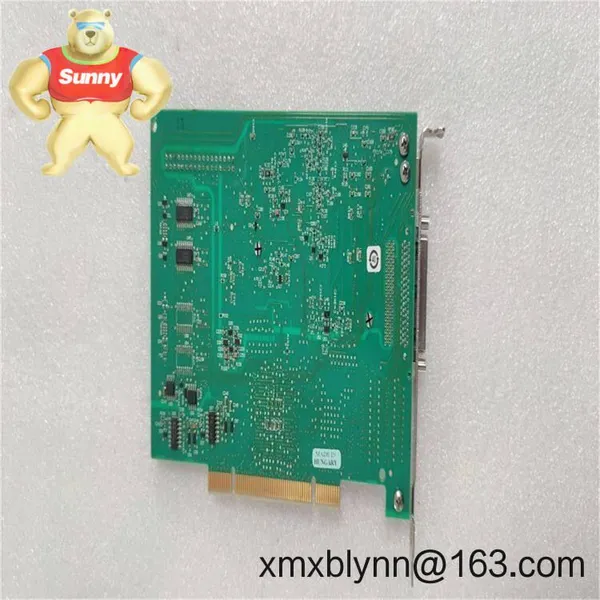

Help CenterNational Instruments PCI-6251: Your Go-To Multifunction DAQ for Precision Test Systems
Related Products
-
National Instruments PCI-6514: Industrial-Grade Digital I/O for Reliable Machine ControlUS$ 3216.00MOQ: 1 Blade -
NI PCIe-1427: High-Speed Vision Acquisition for Demanding Industrial ApplicationsUS$ 3216.00MOQ: 1 Blade
-
National Instruments PCIe-6321: Your Lab's Signal Integrity Workhorse for Mixed-Signal TestingUS$ 3216.00MOQ: 1 Blade
-
NI PXI-1031 Chassis: Your Compact Test Rig Backbone for Demanding Validation WorkUS$ 3216.00MOQ: 1 Blade
-
NI PXI-4071: Your Precision Multimeter for Automated Test SystemsUS$ 3216.00MOQ: 1 Blade
32-channel flexibility – Handles both single-ended and differential inputs without adapter cables. Typically you'll see this pulling double duty in vibration testing where some sensors need isolated grounds.
1.25 MS/s sampling that won't quit – Captures transient events in motor control systems where cheaper cards miss critical startup surges. In many cases, this eliminates the need for a separate high-speed digitizer.
LabVIEW-ready out of the box – The driver installation actually works on the first try (unlike some competitors). Saw a robotics lab cut their integration time by 60% during a recent deployment.
Counter/timer co-processor – Offloads timing-critical tasks from your main CPU. You might notice smoother performance when syncing with PLCs in packaging machinery.
| Brand/Model | National Instruments PCI-6251 |
| HS Code | 9030.89.8000 |
| Power Requirements | +5V @ 1.8A, +3.3V @ 1.3A (PCI slot powered) |
| Dimensions & Weight | 175 x 107 mm / 145g (standard half-length PCI) |
| Operating Temperature | 0°C to 55°C (industrial-grade thermal management) |
| Signal I/O | 32 AI / 4 AO / 48 DIO / 2 counters (±10V range) |
This isn't some lab-only gadget – you'll find it humming inside automotive test cells monitoring engine knock sensors while controlling throttle actuators. A client recently used it for pharmaceutical tablet press validation where it caught microsecond-level timing drifts that would've ruined batch consistency. It seems particularly suited for environments where you need to bridge legacy analog sensors with modern control systems without breaking the budget.
Let's be real – the ROI comes from avoiding three separate specialty cards. One plant manager told me they slashed spares inventory by 40% after standardizing on these. The NI ecosystem means firmware updates won't brick your system (unlike some Chinese clones), and the calibration cycle is typically 2 years under normal conditions. You might not see it on the spec sheet, but the real value is sleeping soundly knowing your validation data won't get questioned during FDA audits.
Keeping It Running SmoothlyPop it in any industrial PC with proper slot spacing – no special backplane needed. Just mind the airflow; I've seen failures in sealed cabinets where temps crept above 60°C. Basic maintenance? Wipe dust off the heatsink quarterly and run the self-test during system idle time. One caveat: always power down before hot-swapping sensors, even though the specs claim "live insertion" capability. Learned that the hard way during a compressor test.
No-Nonsense GuaranteesCE, UL 61010-1, and RoHS certified right out the box. Backed by NI's 3-year hardware warranty – though in practice, most industrial users see 7+ years of service. Our deployment guarantee:
365-day operational warranty (covers defects, not misuse)
1-week delivery for in-stock units, max 4 weeks for custom configs
50% deposit, balance before shipment via FedEx/UPS/DHL
P.S. – That time-sensitive motor test you've been postponing? This card's deterministic timing might finally get it done before next quarter's audit.
