Roller Belt Type Sand Blasting Machine, Tumble Belt Automatic Sand Blaster
This tumble sand blasting machine is suitable for surface cleaning and strengthening of medium or small size castings, forge pieces and a variety of hardware.
Rubber continuous belt sand blasting clean-up machine has advantages of advanced design, rational construction, low-power. It is for different production capacity, the machine can be used not only as a single machine, but also as a part of a line.
Working principle of the rubber belt sand blasting machine:
The sand blasting machine is not powered by compressed air, but is powered by an electromechanical sand blasting machine, and uses the high-speed projectile thrown by the sand blasting machine to clean or strengthen the surface of the metal workpiece.
Application

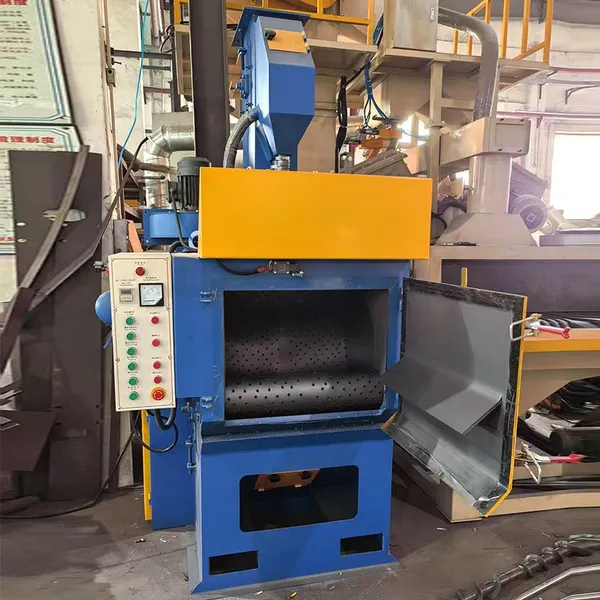

Rubber belt sand blasting machine is good application for high volumes of small components. Components are gently tumbled at constant speed under an electric powered sand stream on a perforated abrasion resistant rubber belt.
Details Images
Rubber Belt sand Blasting Machine Features
1. Uniquelly designed with double-disc impeller for high-flow and high-speed projectile throwing, it is directly driven by a reliable electric motor with long service life.
2. Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance.
3. The sand blasting chamber is steel and plate riveted welding structure and laid with alloy guard plates, all peform wear-resistant, impact-resistant and long lifespan.
4. Equipped with safety protection devices to ensure safe and effective work, and can be equipped with automatic filling and automatic emptying systems.
5. Each sand blasting machine can be customized and manufactured depending on the size, weight and daily number of parts to be blasted.
Technical parameter
| Style | Q324 | Q326 | Q328 | Q3210 | Q3210 Automatic |
| Productivity (t/h) | 0.3-0.6 | 0.6-1.2 | 1.2-2.0 | 2.0-2.8 | 2.0-2.8 |
| Max workpiece weight (kg) | 5 | 10 | 15 | 25 | 25 |
| End plate diameter (mm) | 400 | 600 | 800 | 1000 | 1000 |
| Effective volume (m3) | 0.05 | 0.15 | 0.2 | 0.3 | 0.3 |
| Blast quantity (kg/min) | 40 | 150 | 220 | 250 | 250 |
| Air quantity (m3/h) | 2000 | 2200 | 2600 | 3500 | 3500 |
| Total power (kw) | 6 | 13 | 19 | 21 | 26 |
FAQ
Q1: How to choose blast machine type?
A: Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q2: How to choose abrasive?
A: Various kinds abrasive with different size: steel sand, cut wire sand, stainless steel sand, etc. Choose according to workpiece.
Q3: How long is the quality warranty? A: 1 year for whole machine.
Q4: Is foundation pit essential?
A: Up to machine size and workshop.
Q5: How many workers to operate the machine?
A: 1-2, up to the machine.
Q6: After sale service?
A: Full stock for spare parts, regular after sale service.
Q324 track shot blasting machine, how many workpieces can be processed in approximately one hour? The production rate of Q324 track shot blasting machine is 600 kilograms per hour for ordinary welding parts processing. It should be noted that productivity is related to the shape of the workpiece, and the surface area of the workpiece cleaned per minute generally does not exceed 0.5 square meters. In addition, the equipment can process 100 kilograms of workpieces at a time and is suitable for shot blasting treatment of a small number of workpieces. If you need a more specific number of workpieces to be processed, it may be necessary to calculate based on the actual weight and shape of the workpieces. Specific situations should be analyzed on a case by case basis, and cannot be generalized. 1. Firstly, for casting, rough casting should be carried out for 30-40 minutes to shake off the shell on top of the casting, and then fine casting should be carried out for 20 minutes to fully meet the requirements. 2. It's a welded part, usually it takes about ten minutes to throw normally; 3. If it's just about removing floating dust or burrs, it can take 2-5 minutes. The specific time required for throwing once also depends on the specific condition or degree of corrosion of the workpiece before throwing. And the specific application requirements after throwing. Yancheng Ruigang Machinery Co., Ltd. answers your questions!
