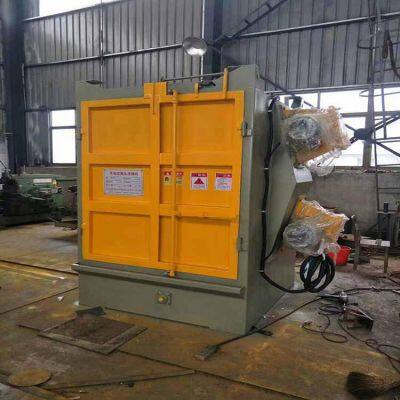

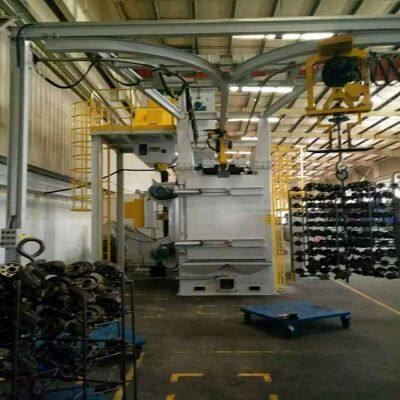

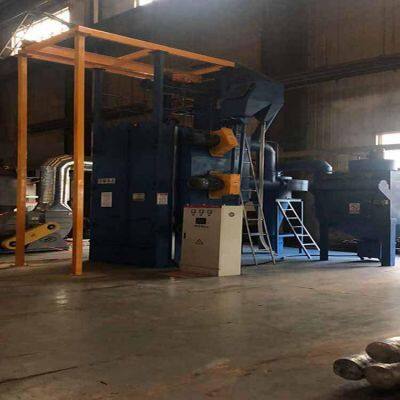

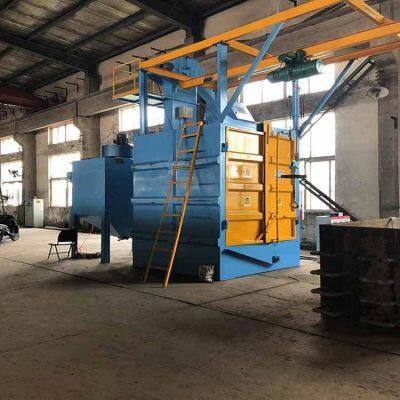

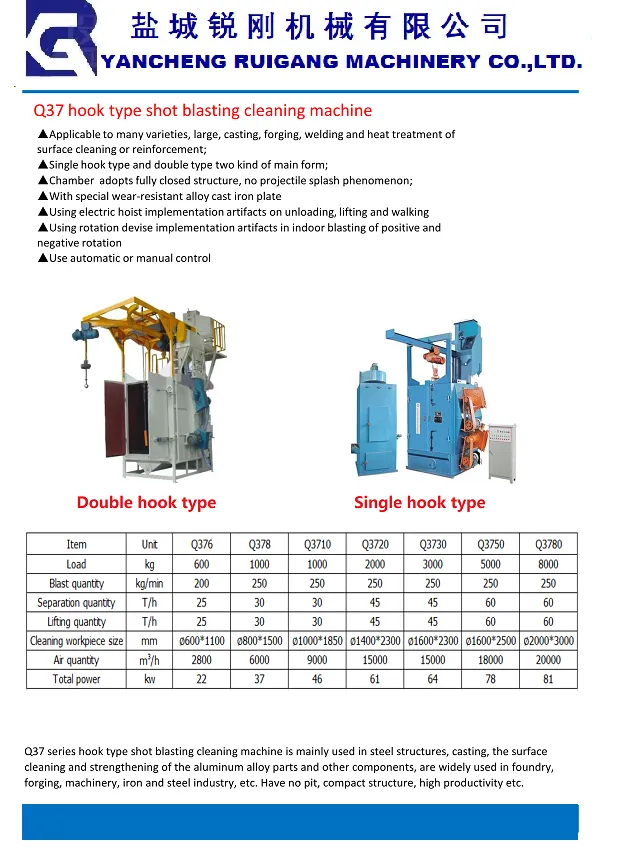

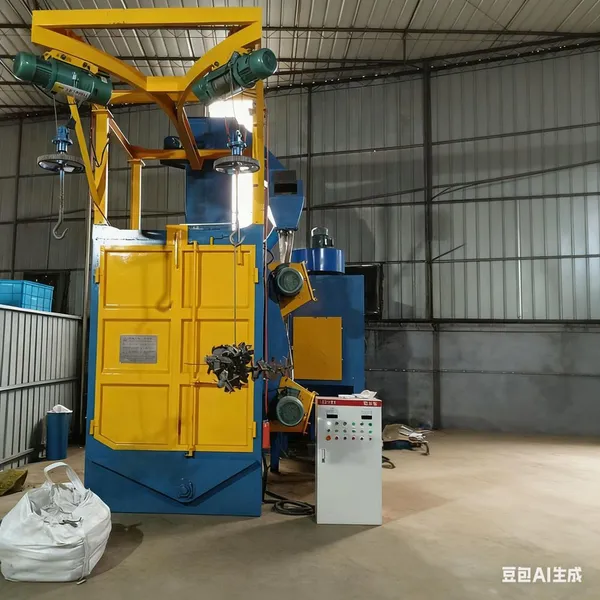

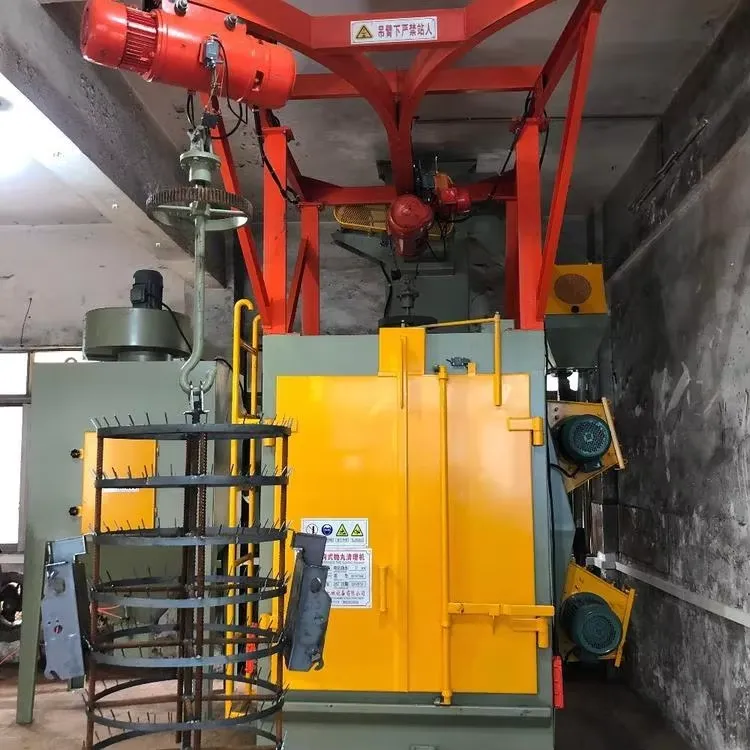

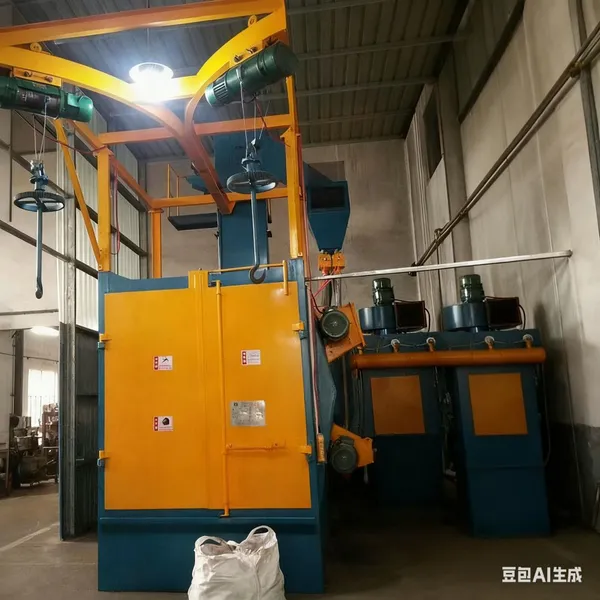

Hook shot blasting machine is a hook type cleaning equipment, mainly composed of a shot blasting cleaning room, a hoist, a separator, a screw conveyor, two shot blasting wheel assemblies, a shot control system, a hook walking track, a hook system, a rotation device, a foundation, a dust removal system, and an electrical control part, including models Q376, Q378, Q3710, Q3720, etc
The diameter range of the working cylinder of the equipment is Φ 900- Φ 1300 millimeters, with a maximum bearing capacity of 10000 kilograms and a single cleaning cycle of 5-7 minutes. It is suitable for surface treatment of castings, forgings, weldments, and wind power equipment components.
This equipment uses 0.2-0.8mm pellets for shooting, with a shot blasting capacity of up to 2 * 220kg/min (Q3720 model parameters), equipped with the fourth generation cantilever centrifugal shot blasting device and a pit free structural design
Some models integrate intelligent control systems with temperature and humidity monitoring functions, which can meet the requirements of constant temperature and humidity processes in the wind power industry

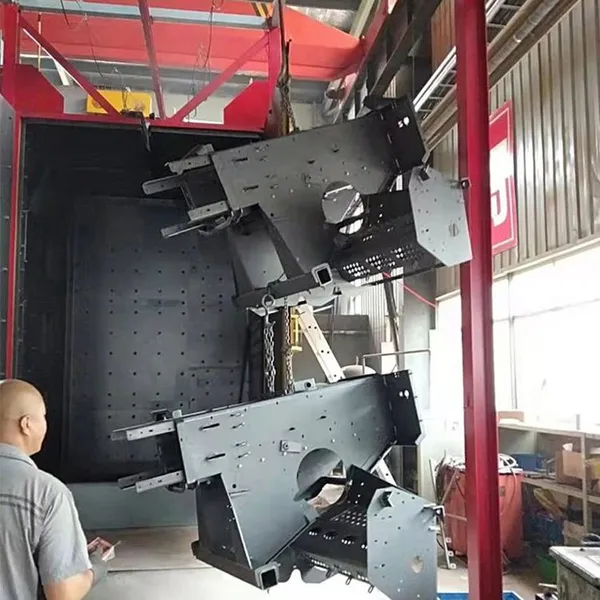

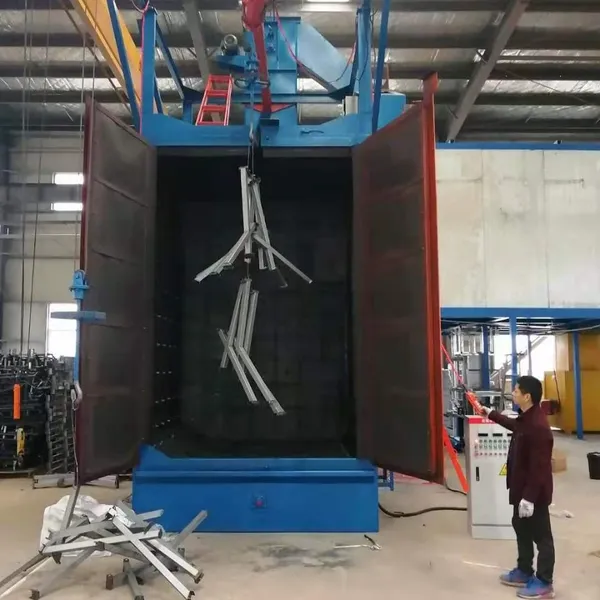

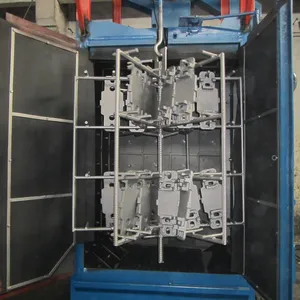

The core components adopt a double hook design to improve work efficiency, and the workpiece is cleaned in all directions through the hook rotation device.
What is the purchase price of shot blasting machine?
The purchase price of shot blasting machines is influenced by various factors. The following are the price ranges for shot blasting machines based on different types and configurations:
From economical small equipment to high-end customized industrial models:
The price difference is significant, ranging from economical small equipment (such as Yancheng Ruigang Machinery Co., Ltd. factory price: Q324 track type shot blasting machine, 12800 yuan) to high-end customized industrial models (such as Yancheng Ruigang Machinery Co., Ltd. factory price: Q376 hook type shot blasting machine, 50000 yuan); Passing shot blasting machine Q0808-2, 85000 yuan.
Technical parameters: Shot blasting volume, power, automation level and other technical parameters have a significant impact on price.
For example, the price of shot blasting at 100kg/min is about 13000 to 36000 yuan (one set of shot blasting equipment), while the price of shot blasting at 200kg/min is about 29000 yuan or more; A small 7kW machine costs about 13000 yuan, while a medium 21.7kW machine costs about 29000 yuan; The human-machine interface control+automatic pill supply system is 30% -50% more expensive than manual operation models.
Additional configurations: Additional configurations such as dust removal system and wear-resistant materials will also affect the price.
For example, secondary dust removal (cyclone+filter cartridge) has a premium of 15% -20% compared to standard air selection, and high chromium alloy protective plates have a cost 10% -25% higher than ordinary steel plates.
Stone shot blasting machine:
The price is roughly divided into the following ranges: small basic models (60000 to 120000 yuan) are suitable for narrow width boards (≤ 800mm), small batch processing, thin boards (15-30mm), and artificial stones.
In summary, the procurement price range of shot blasting machines is relatively wide, and the specific price depends on factors such as equipment type, specifications, brand, configuration, and additional functions. Yancheng Ruigang Machinery Co., Ltd. suggests making clear choices based on actual needs and paying attention to implicit costs and service terms.
Purchase recommendation
Clear requirements: Choose track type for small workshops, hook type or through type for batch processing
Pay attention to implicit costs:
Freight: The cross provincial logistics cost within China is approximately 3000-8000 yuan (FOB cost)
Installation fee: charged based on the complexity of the equipment
Service terms: Priority is given to brands with a 1-year warranty and lifetime maintenance for the entire machine
