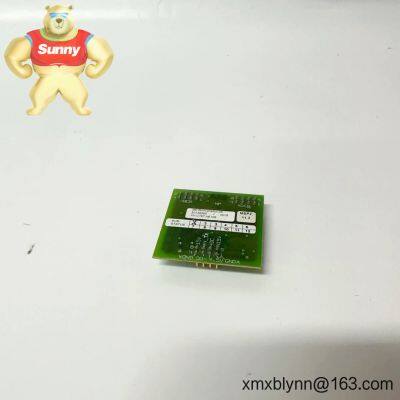

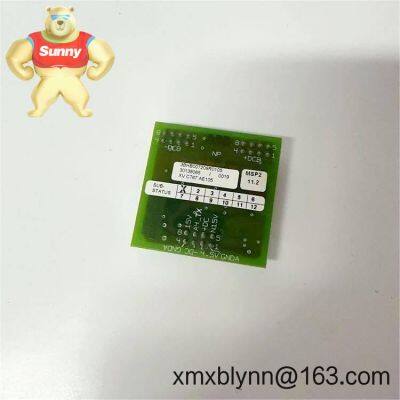

ABB XVC767AE105 (3BHB007209R0105) – Control Board for ACS800/Multidrive Systems

• Warranty: 365 days

• Lead time: 1 week if in stock; no more than one month at the latest

• Payment: 50% advance payment; full payment prior to delivery

• Express delivery options: FedEx, UPS, DHL

• OEM ABB control board – Designed for ACS800/ACS800 Multidrive systems for reliable, drop-in replacement.

• DDCS fiber-optic links – Robust internal communication to gating units and companion boards with strong EMI immunity.

• Protection and timing control – Coordinates interlocks, fault handling, and gate signals in the drive section it serves.

• 24 VDC internal power – Powered from the drive’s control supply; no external PSU needed.

• Service-friendly – Clearly keyed connectors and consistent board layout support fast changeover during downtime.

• Factory-matched variant – XVC767AE105 (3BHB007209R0105) aligns with specific ACS800 configurations to avoid parameter mismatches.

You’ll typically find the XVC767AE105 in ABB ACS800 single drives and Multidrive line-ups used in steel and metals processing, pulp & paper, marine propulsion/auxiliaries, mining and aggregates, cranes, oil & gas, and general factory automation. A maintenance customer in a steel pickling line told us the board swap brought the regenerative supply back online in under two hours, largely because all fiber links and mounting points were exact matches.

• Compatibility – Genuine ABB variant alignment (AE105) reduces commissioning risk and avoids unexpected firmware mismatches.

• Reliability – Purpose-built for the ACS800’s internal DDCS architecture with solid noise immunity in high-EMI cabinets.

• Reduced downtime – Drop-in fit and clear connector labeling help maintenance teams finish replacements faster.

• Lifecycle support – Works with standard ABB diagnostics; easy to integrate within existing spare-parts strategies.

• Cost control – Less time on site and no panel redesign usually means lower total repair cost.

• Environment – Install inside a clean, ventilated ACS800 cabinet. Keep ambient within the drive’s specified range and maintain airflow paths.

• Wiring & fibers – Route fiber-optic DDCS leads with gentle bend radius; keep them away from high-current busbars where practical.

• ESD safety – Wear a grounded wrist strap, power down fully, and allow DC bus discharge before handling the board.

• Commissioning – After installation, run the drive’s self-tests and verify interlocks, fiber link status, and fault logs. Parameter verification is recommended if a board revision changed.

• Routine care – Periodically inspect connectors, clean dust with dry, oil-free air, and check firmware compatibility notes in ABB service bulletins when performing broader drive updates.

ABB manufactures ACS800 components under ISO 9001 quality systems. CE and UL/CSA certifications apply to the complete drive assembly; the board is intended for use within that certified system. RoHS compliance typically applies to the PCB and components used.

Warranty coverage is 365 days. If you need help matching the AE105 variant to your exact ACS800 code, share the drive type label or module code and we’ll cross-check compatibility before shipment.
