Oil-Immersed Submersible Motor Pump (MDP)

Oil-Immersed Submersible Motor Pump (MDP) photo-1

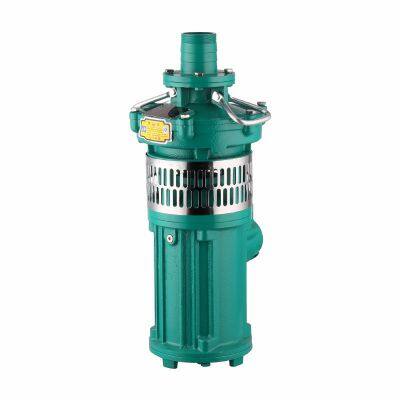

Oil-Immersed Submersible Motor Pump (MDP) photo-2

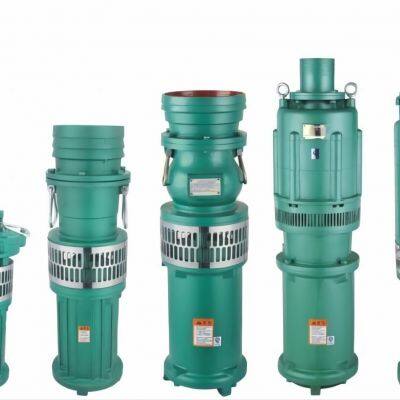

Oil-Immersed Submersible Motor Pump (MDP) photo-3

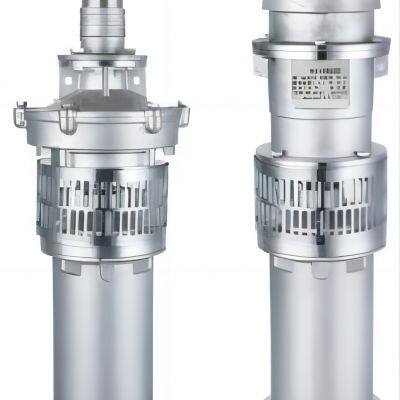

Oil-Immersed Submersible Motor Pump (MDP) photo-4
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Cast Iron
Application:
Submersible Pump, Sewage Pump
Structure:
Single-stage Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Cast Iron
Application Submersible Pump, Sewage Pump
Structure Single-stage Pump
Theory Other, Oil-Immersed Submersible Motor Pump
Power Electric
Industry Other, Oil-Immersed Submersible Motor Pump
Performance Other, Oil-Immersed Submersible Motor Pump
Max.Head Other, 10~200m
Max.Capacity Other, 8.5~500m³ / h
Start Up Electric Pump
Type Other, Oil-Immersed Submersible Motor Pump
Media Other, Clean river and lake water
Driving Type Motor

Oil-Immersed Submersible Motor Pump

Product Overview:

MDP series oil-filled submersible pump, composed of water pump, seal, motor three parts. The motor is located in the lower part, divided into single-phase and three-phase asynchronous motor. Double end mechanical sealing is used between the water pump and the motor, and each sealing seal is sealed with O-type oil-resistant rubber sealing circle for static seal. The mechanical sealing of key parts is made of carbide carbide and high quality silicon carbide.


Parameter range:

Flow rate: 8.5~500m³ / h

Head stage: 10~200m

Material: cast iron, stainless steel is optional

Medium temperature: not more than + 50℃;

 Medium containing solid impurities: the volume ratio does not exceed 0.1%, the particle size is not more than 0.2mm;

Diving depth: not more than 5m.


Use:

1. Discharge system of urban sewage treatment plant.

2. Subway, basement, civil air defense system drainage station.

3. Sewage drainage stations of enterprises, factories, hospitals and residential areas.


Matters need attention:

1. This series of electric pumps can not extract sewage, suitable for the extraction of clean river water and lake water.

2. If there is a trip phenomenon in the process of use, professionals should be asked to check in time

3. Check whether the water pump and motor part is short circuit or defective.


Product Tags: oil filled submersible pump , submersible pump oil , submersible motor pump
