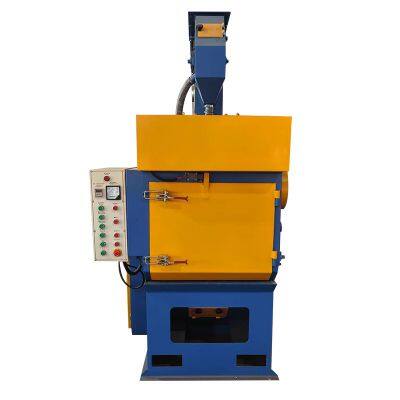

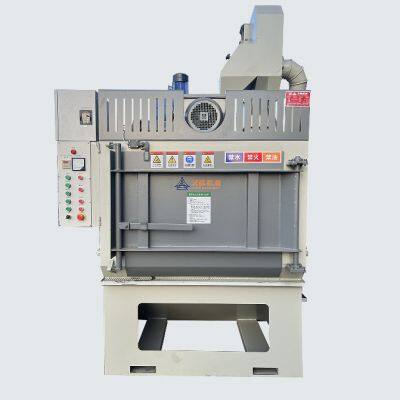

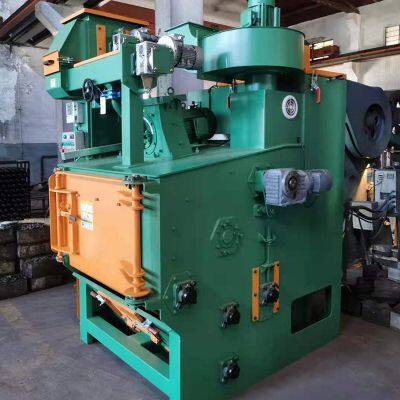

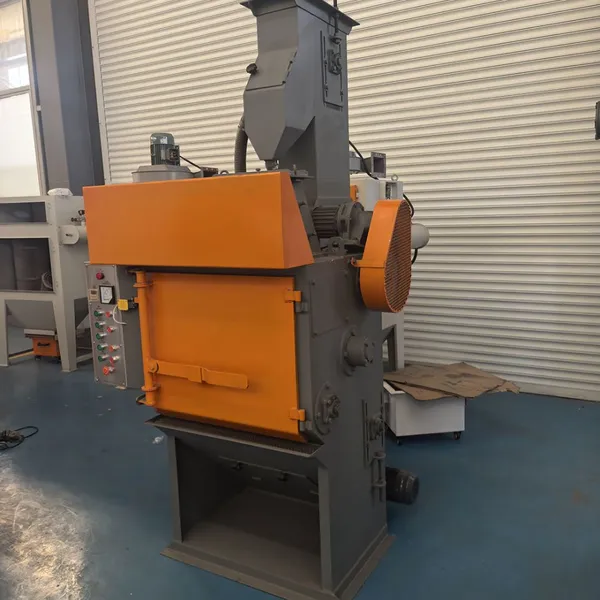

Help CenterQ326 Tracked Shot Blasting Machine, Small Workpiece Shot Blasting Cleaning Machine, Supports Non-standard Customization
Related Products
-
Q326 Tracked Shot Blasting Machine, Small Workpiece Shot Blasting Cleaning Machine, Supports Non-standard CustomizationUS$ 3000MOQ: 1 Set -
Burr Cleaning Automatic Roller Sandblasting Machine Through Type Multi Spray Gun Sandblasting Machinery FactoryUS$ 20000MOQ: 1 Set
-
Q326 Integrated Crawler Shot Blasting Machine Small Cleaning Machine Dust Removal and Rust Removal Surface Cleaning Equipment ManufacturerUS$ 3000MOQ: 1 Set
-
The Rust Removal Roller Conveyor for Die-casting Parts Has a Tight Structure and a Short Delivery CycleUS$ 20000MOQ: 1 Set
-
Q69 Series Rust Removal and Cleaning Metal Surface H-beam Ball Bearings Roller Conveyor Through Shot Blasting MachineUS$ 20000MOQ: 1 Set
Roller Belt Type Sand Blasting Machine, Tumble Belt Automatic Sand Blaster
This tumble sand blasting machine is suitable for surface cleaning and strengthening of medium or small size castings, forge pieces and a variety of hardware.
Rubber continuous belt sand blasting clean-up machine has advantages of advanced design, rational construction, low-power. It is for different production capacity, the machine can be used not only as a single machine, but also as a part of a line.
Working principle of the rubber belt sand blasting machine:
The sand blasting machine is not powered by compressed air, but is powered by an electromechanical sand blasting machine, and uses the high-speed projectile thrown by the sand blasting machine to clean or strengthen the surface of the metal workpiece.
Application
Rubber belt sand blasting machine is good application for high volumes of small components. Components are gently tumbled at constant speed under an electric powered sand stream on a perforated abrasion resistant rubber belt.
Details Images
Rubber Belt sand Blasting Machine Features
1. Uniquelly designed with double-disc impeller for high-flow and high-speed projectile throwing, it is directly driven by a reliable electric motor with long service life.
2. Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance.
3. The sand blasting chamber is steel and plate riveted welding structure and laid with alloy guard plates, all peform wear-resistant, impact-resistant and long lifespan.
4. Equipped with safety protection devices to ensure safe and effective work, and can be equipped with automatic filling and automatic emptying systems.
5. Each sand blasting machine can be customized and manufactured depending on the size, weight and daily number of parts to be blasted.
Technical parameter
| Style | Q324 | Q326 | Q328 | Q3210 | Q3210 Automatic |
| Productivity (t/h) | 0.3-0.6 | 0.6-1.2 | 1.2-2.0 | 2.0-2.8 | 2.0-2.8 |
| Max workpiece weight (kg) | 5 | 10 | 15 | 25 | 25 |
| End plate diameter (mm) | 400 | 600 | 800 | 1000 | 1000 |
| Effective volume (m3) | 0.05 | 0.15 | 0.2 | 0.3 | 0.3 |
| Blast quantity (kg/min) | 40 | 150 | 220 | 250 | 250 |
| Air quantity (m3/h) | 2000 | 2200 | 2600 | 3500 | 3500 |
| Total power (kw) | 6 | 13 | 19 | 21 | 26 |
Product packaging
FAQ
Q1: How to choose blast machine type?
A: Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q2: How to choose abrasive?
A: Various kinds abrasive with different size: steel sand, cut wire sand, stainless steel sand, etc. Choose according to workpiece.
Q3: How long is the quality warranty? A: 1 year for whole machine.
Q4: Is foundation pit essential?
A: Up to machine size and workshop.
Q5: How many workers to operate the machine?
A: 1-2, up to the machine.
Q6: After sale service?
A: Full stock for spare parts, regular after sale service.

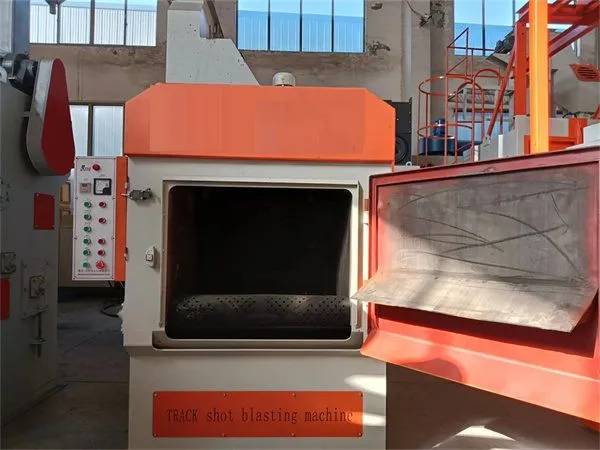

What is the process principle of track roller shot blasting machine?
Application and maintenance guide of the process principle of the track type shot blasting machine
Track type shot blasting machine is a commonly used surface treatment equipment in the industrial field, widely used in casting, machinery, automobile and other industries. Today, Saltcheng Ryugang Machinery Co., Ltd., will bring you in-depth understanding of its working principle, application scenario and daily maintenance points~
I. Core working principle
It throws the steel ball to the surface of the workpiece through the high-speed rotating wheel of the blasting machine, using the impact force generated by the impact of the steel ball to remove oxidation, rust and spurts. During the blasting process, the workpiece slowly rotates along the track to ensure that all sides are evenly handled. The thrown steel ball is reused after the separation device is recovered, saving energy and efficient ~
Typical application scenarios
1. Casting cleaning: remove the sand core of the surface of the casting, pouring hole and oxide skin (especially heavy castings such as engineering machinery, valves).
2. Mechanical parts pre-treatment: such as gear, shaft parts before processing rust removal oil, so that the subsequent coating adhesion is stronger.
3. Sheet steel treatment: in the steel sheet pre-treatment production line, continuous blasting can replace traditional sandblasting, reduce dust pollution.
This type of equipment is especially suitable for batches of small and medium-sized workpieces, which can simultaneously handle dozens or even hundreds of kilograms of materials.
Control of key process parameters
Focus on three parameters when operating:
- Blasting angle: generally adjusted to 30°-45°, to ensure the cutting force balance of the steel ball on the workpiece.
- Shooting time: according to the size of the workpiece and the degree of corrosion set, common 30-120 seconds / piece (such as ordinary castings 1-2 minutes).
- Steel ball specifications: it is recommended to choose a diameter of 0.8-2.5mm steel wire cutting ball, moderate hardness and not easy to break.
4. Daily maintenance and troubleshooting
1. Regular inspections:
- Check the track tension every 800 hours to avoid slipping or breaking;
- Monthly cleaning of the separator filter to prevent steel ball clogging affects the recovery efficiency.
2. Frequently asked questions:
- If there is a local leakage on the surface of the workpiece, check whether the blaster blade is worn and replace the blade in time;
- When the blasting effect is poor, the angle of the directional set of the blaster can be adjusted to expand the range of the blast.
5. Safety Operation Precautions
- Before starting, it is necessary to confirm that the protective door is closed, and it is strictly forbidden to open the cabin door when the equipment is in operation;
- Operators should wear protective glasses and dust masks to avoid steel ball splashes or dust inhalation.
Track type blasting machine through efficient blasting process, can greatly improve the surface quality of the workpiece, reduce the subsequent processing costs. Saltcheng Ryugang Machinery Co., Ltd. can allow you to reasonably maintain the equipment, not only to extend the service life, but also to ensure production safety and efficiency ~
#Blasting Machine Process #Industrial Equipment #Surface Treatment Technology
