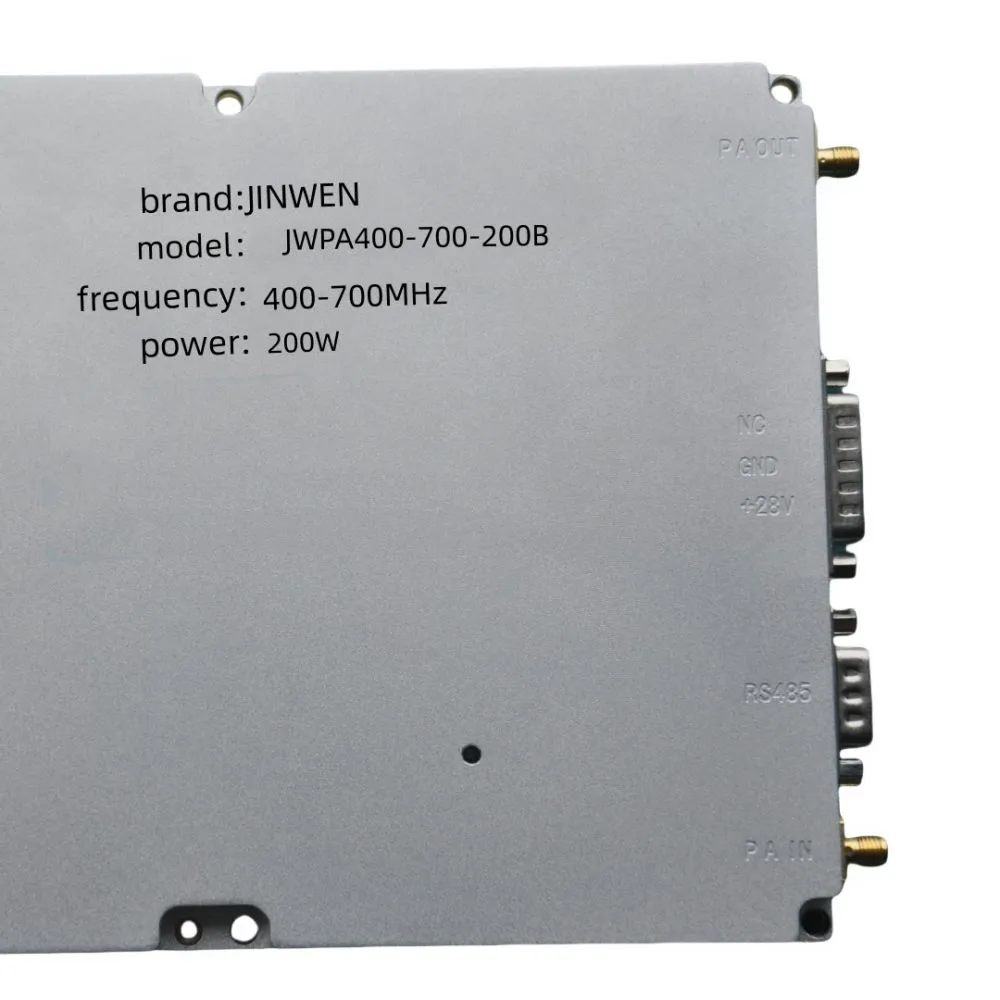

Jinwen RF Power Amplifier 400-700MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
US$ 1190
1 - 49 Unit
US$ 950
≥50 Unit
Key Specifications
Get Latest Price
Type:
Wireless
Usage:
Workstation, Server
Information Content:
Voice
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
35 days
Related Products
-
Jinwen RF Power Amplifier 700-1000MHz200 Watts Used for Unmanned Aerial Vehicle Jamming Electronic Countermeasures Etc Jammer AmplifierUS$ 950 - 1190MOQ: 1 Unit -
Jinwen RF Power Amplifier 1000-1200MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc Jammer AmplifierUS$ 950 - 1190MOQ: 1 Unit
-
Jinwen RF Power Amplifier 1200-1400MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 950 - 1190MOQ: 1 Unit
-
Jinwen RF Power Amplifier 1400-1700MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 950 - 1190MOQ: 1 Unit
-
Jinwen RF Power Amplifier 1900-2100MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 950 - 1190MOQ: 1 Unit
Type
Wireless
Usage
Workstation, Server
Information Content
Voice
Condition
New
Support Network
Ethernet
Trademark
jinwen
Origin
china
Technical specifications of 200W shielded amplifier (with isolator)
serial number |
indicator |
Indicator requirements
|
Remarks |
1 |
frequency |
||
The frequency can be customized according to the customer, with an output isolator, and the frequency is limited to 0.4-6GHz |
|||
400-700MHZ | |||
2 |
power |
200W |
|
3 |
voltage |
+28V |
|
4 |
Reference size |
Length * Width * Height 200 * 110 * 26mm (Excluding output connectors) |
|
5 |
output interface
|
N-F |
|
６ |
power supply interface |
7W2 |
|
７ |
Other functions |
Equipped with enablement, built-in sweep frequency source, power indicator light Fault indicator light, power indicator light, over temperature protection |
|
8 |
7W2 Pin Definition |
A1：GND A2：+28V Pin 1: Power indicator 2 Feet: Enable 3-pin: half power indicator 4-pin: Full power indicator 5 feet: Fault alarm indication |
|
9 |
mounting hole distance |
Length: 96 * 96mm Width: 104mm (M4 screw) |
