Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine

Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine thumbnail-1
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine thumbnail-2
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine thumbnail-3
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine thumbnail-4
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine thumbnail-5
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine photo-1
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine photo-2
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine photo-3
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine photo-4
Coil Spring Tensile Compression Tester Spring Tension and Compressive Tester Touch Screen Spring Compression Testing Machine photo-5
US$ 3500 - 3950 MOQ: 1 Set
Key Specifications
Get Latest Price
Warranty:
1 year
After-sales Service:
online support
Transport Package:
wooden box packaging
Contact Supplier Request Quote Chat Now
Jinan Zhongchuang Industrial Testing System Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao，shanghai，tianjin
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty 1 year
After-sales Service online support
Transport Package wooden box packaging
Specification about 470*380*570mm
Trademark ZhongChuang
Origin jinan

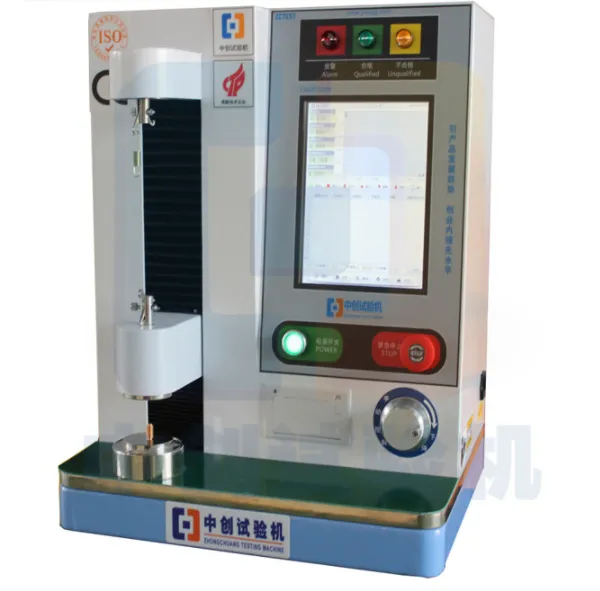

Spring Tension and Compression Load Testing Machine

Machine features:
According to different kinds of spring budget parameters, fast batch testing, high accuracy of testing force value, good repeatability of force value, manually placed spring interval, automatic testing.
Use place:
Production site, laboratory

Comprehensive touch screen, high-end precision models Capacity
10N、20N、30N、50N、100N、200N
Specification
Control type
Full touch screen model
Load unit
N,kN,gf, kgf, lbf, kip
Range
10N,20N,30N,50N,100N,200N
Min reading value of test force
0.001N
Load collection frequency
1000Hz
Test range
1%—100%FS
Test force resolution
1/1000000
Relative error of test force indication
±1.0%
Repeatability relative error of test
force indication

1.0%
Displacement resolution
0.001mm
Test space
190mm
Pressure plate diameter
60mm
Range of speed
0.01-500mm/min
Size
about 470*380*570mm
Weight
about 60kg
Power supply
AC 220V±10% 50Hz
Springs Endurance Tester
This machine is especially suitable for the detection of various precision grade coil springs, small disc springs, shrapnel and profiled springs. It is mainly used in laboratory precision testing of spring production enterprises, spring use enterprises, quality inspection, measurement, various mechanical laboratory of colleges and so on.
