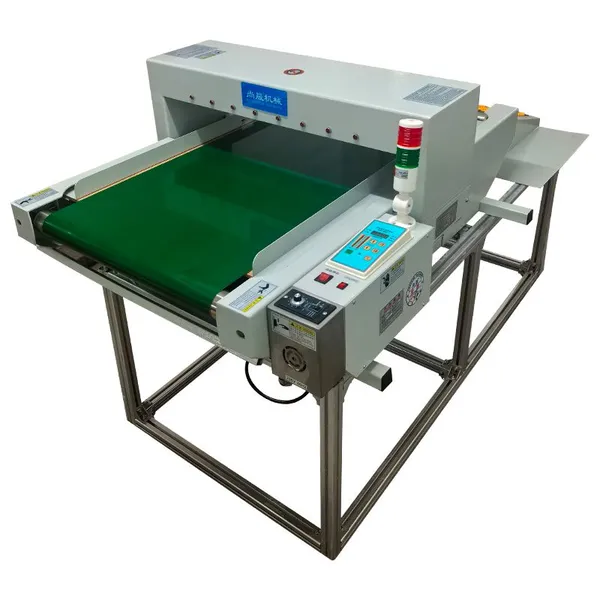

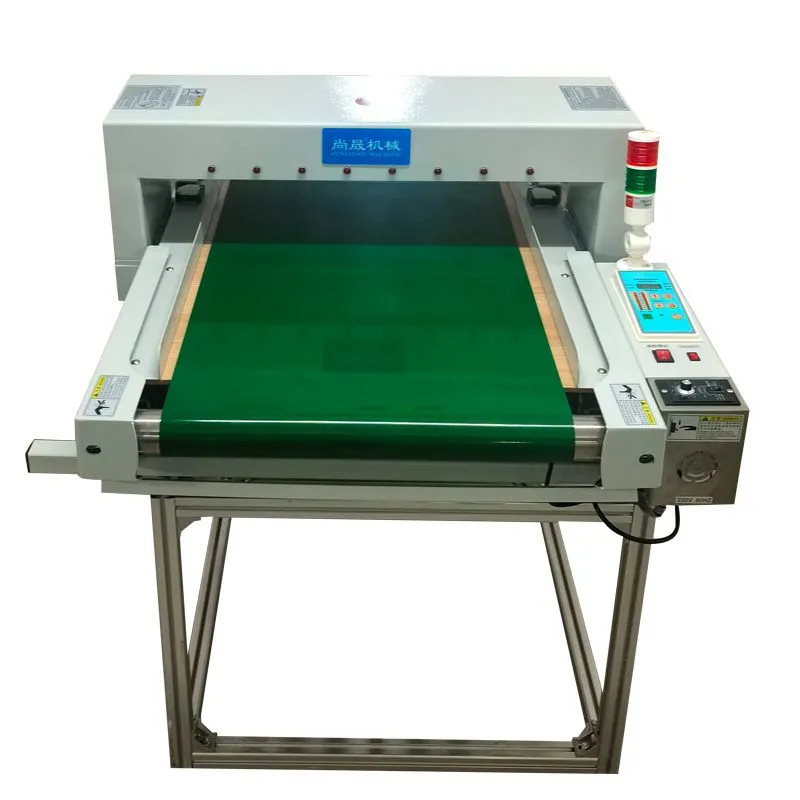

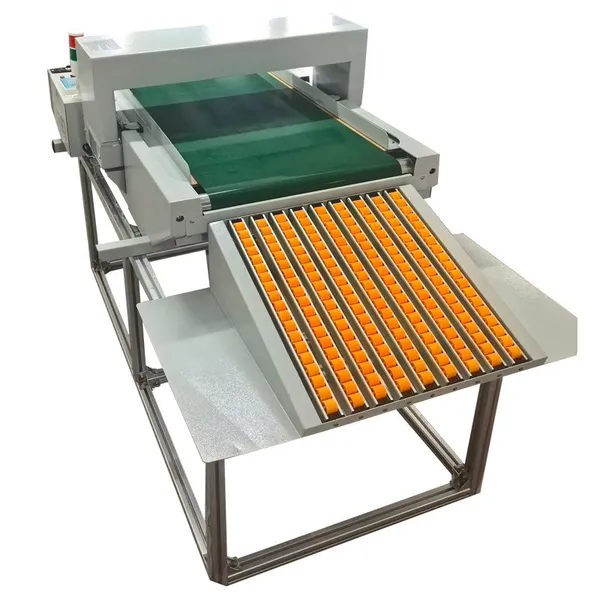

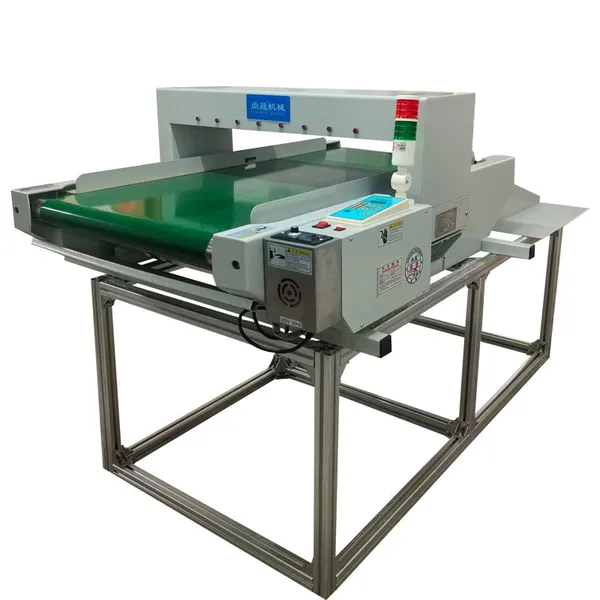

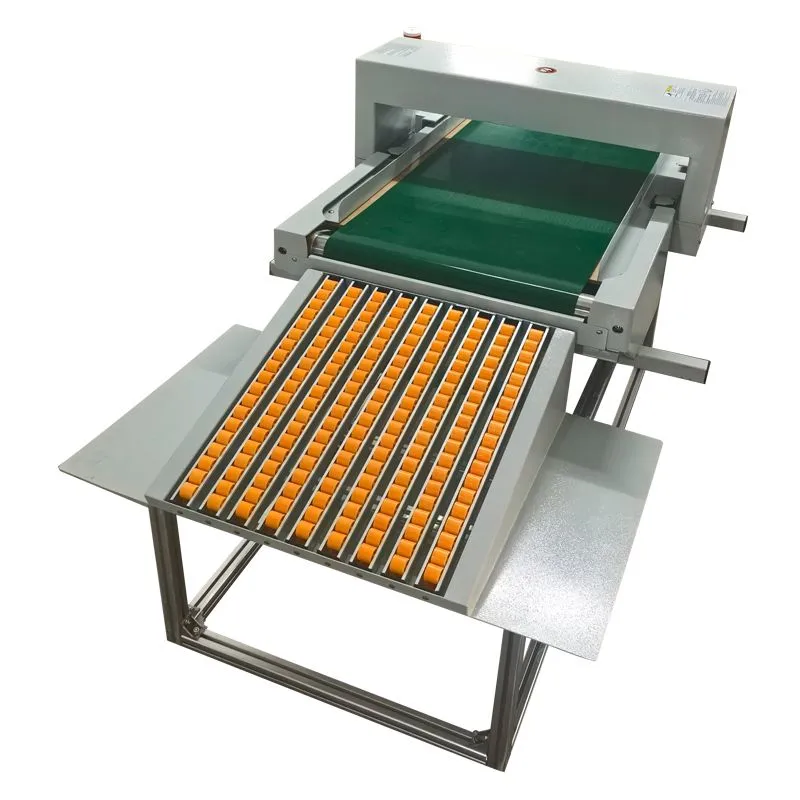

SC-736A Magnetic Induction Intelligent Needle Detector
Product brief introduction： |
SC-736A Magnetic Induction Intelligent Needle Detector is equipped with an imported anti-interference device and features high sensitivity. Under the conventional monitoring height of 10-15 cm, it can accurately identify iron balls with a diameter of 0.8-1.2 mm. It can be matched with factory assembly lines for automated operation. With digital signal processing applied to both data collection and motor control, it will automatically shut down within 10 minutes when the conveyor belt is empty. In case of defective products, the buzzer alarm will flash and the items will automatically retreat. It can accurately calculate the number of qualified products, defective products, and the total quantity. The height of the detection window is customizable, and it offers two functional options: manual and automatic control.
Technical Specifications: |
Model |
Voltage |
Power |
NW |
Machine Size |
SC-736A |
220V50HZ |
60-90W |
163KG |
1350*1030*90mm |
|
detectionwidth |
detection height |
detection sensitivity |
Sensitivity Adjustment |
the distance between the conveyor belt and the ground |
600mm |
80-200mm |
∅0.8mm-1.2mm （Steet ball） |
0-10 |
300mm |
