KT142S Voice Chip MP3 Player Module 3 Trigger I/O USB Update 0.5W Speaker Support DAC Output Sound IC for DIY Electronics Gift Christmas Jewel Case
US$ 1
≥1 Piece
Key Specifications
Get Latest Price
Technics:
Thin Film IC
Shape:
Other, SOP16
Conductive Type:
Bipolar Integrated Circuit
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
KT148A Sound Chip Voice IC One Wire UART Control 420s Built-in Memory Reprogrammable Alternative to OTP Alarm Box Audio Playback Voice Prompt AlarmUS$ 1MOQ: 1 Piece -
KT404A Programmable Sound Chip UART Control Voice Chip U Disk Flash TF Card Playback Charging Audio Board Music Playback Voice Prompt Alarm BroadcastUS$ 1MOQ: 1 Piece
-
KT142C Voice Chip Module Audio Sound Playbord Chip With Programmable 4 IO Ports MP3 Decoding USB Download UART Control 9600 BR Built-in 320KByte SpaceUS$ 1MOQ: 1 Piece
-
KT404C Voice Chip Sound IC Solution MP3 Decode USB Programmable With TTS Interruption Low-Cost Alarm Custom Audio TF Card U Disk SPI Flash PlaybackUS$ 1MOQ: 1 Piece
-
KT142A Voice Chip Built-in Flash Memory Support External Flash & TF Card & USB Disk Sound Playback UART Control Support PWM Drive Speaker or AmplifierUS$ 1MOQ: 1 Piece
Technics
Thin Film IC
Shape
Other, SOP16
Conductive Type
Bipolar Integrated Circuit
Integration
VLSI
Product Name

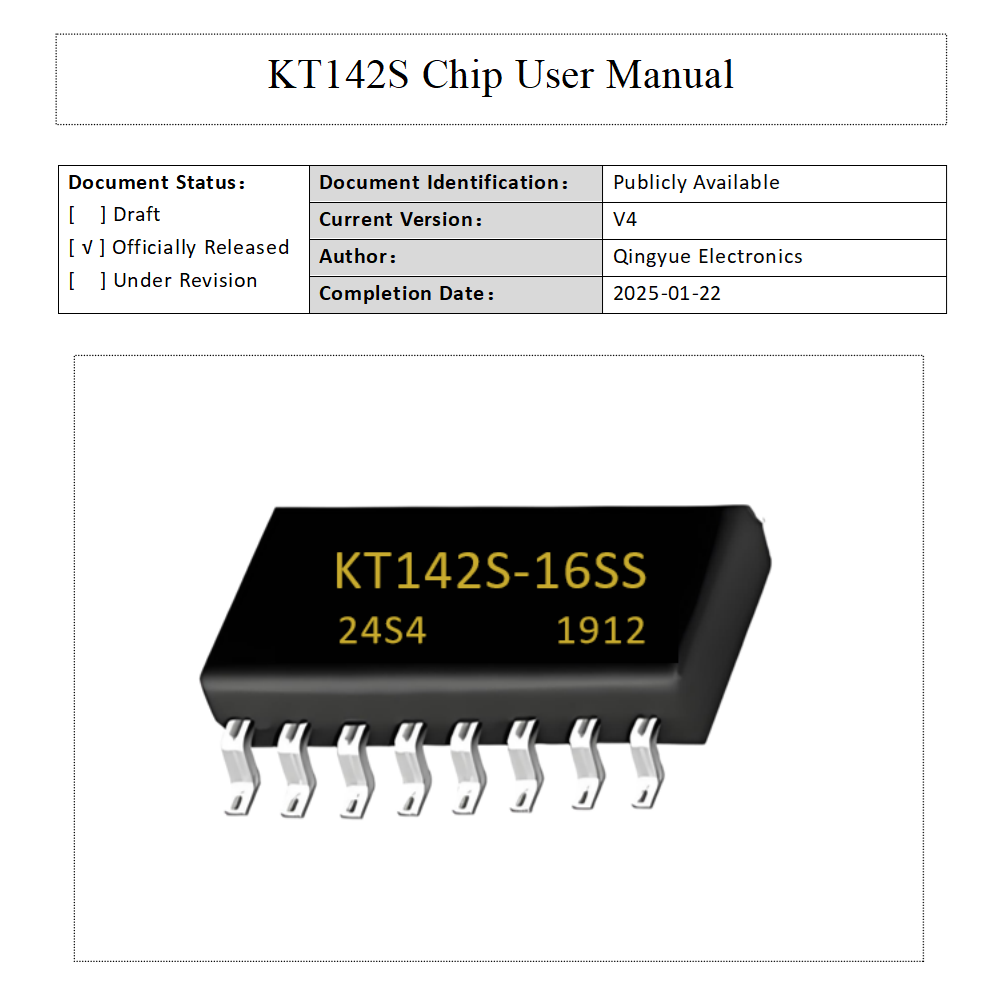

KT142S Voice Chip
Model
KT142S
IC Type
Alarm IC, Sound Prompt, Music Playback
Standard Current
10mA(static)
Low Power Current
< 50μA
Built in Speaker Drive
Direct drive for 8Ω 0.5W
Programmable
YES
TF Card Support
YES
U Disk Support
YES
External SPI Flash
YES
Transport Package
50pcs per tube
Specification
SOP16
Trademark
Qingyue Electronics
Origin
China

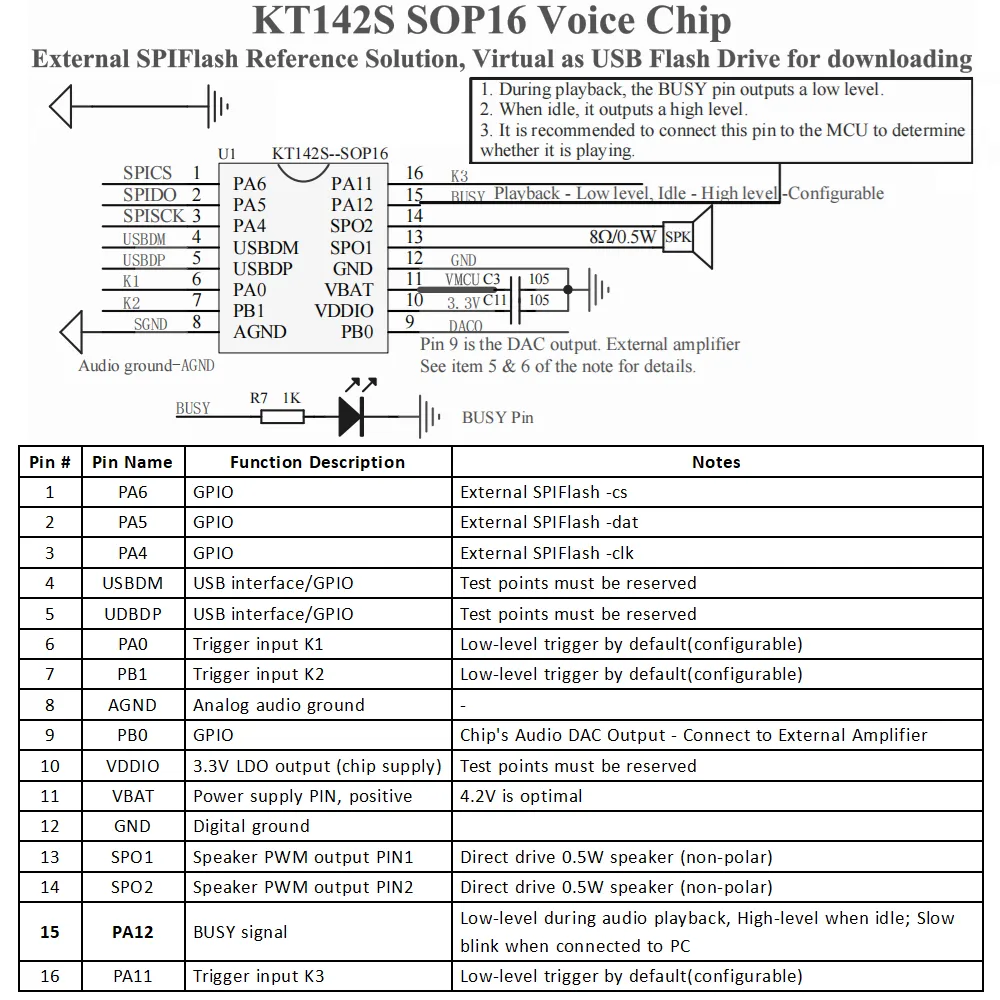

KT142S Voice Chip Complete Technical Resources/Documents Download Link：
/drive/folders/181SiXfSOqzyDZNQUcIp4XYRTRx1tp_qm?usp=drive_link
