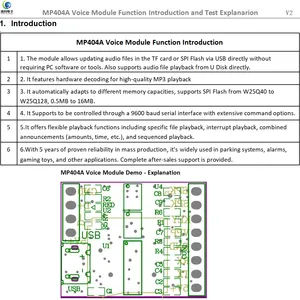

MP404A Micro USB Downloadable MP3/WAV Music Board Play Voice Module Sound Box for Plush Toys Christmas Birthday Creative Greeting Cards DIY Xmas Gifts
US$ 2
≥1 Piece
Key Specifications
Get Latest Price
Technics:
Other, SMT
Shape:
Other, Borad Module
Conductive Type:
Bipolar Integrated Circuit
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
KT1328A Bluetooth Chip Master-Slave Integrated Ver JieLi IC BLE Passthrough Serial Port AT Command Control by Arduino Nano SOP8 for Remote-controlledUS$ 1MOQ: 1 Piece -
KT6368A Bluetooth HID Dual-Mode BLE and SPP Version Module for Bluetooth Keyboard/Mouse Remote Controller and Selfie Shooter With AT Commands via UARTUS$ 1MOQ: 1 Piece
-
BT401 Dual-Mode Bluetooth Module 5.0 With Built-in Prompt Sound External SPI Flash TF Card USB Audio BLE Data Transmission UART AT Command ControlUS$ 1MOQ: 1 Piece
-
MP142A Voice Module Built-in MP3 Audio Flash Memory External Flash TF Card USB Disk Sound Playback UART AT Control PWM Drive Speaker or DAC AmplifierUS$ 4MOQ: 1 Piece
-
M49S Crystal Oscillator SMD Package Surface Mount 24.000MHz 12pF 10ppm High-Precision Mini 2PIN for JieLi Bluetooth Audio Chip JL IC Automotive GradeUS$ 1MOQ: 1 Piece
Technics
Other, SMT
Shape
Other, Borad Module
Conductive Type
Bipolar Integrated Circuit

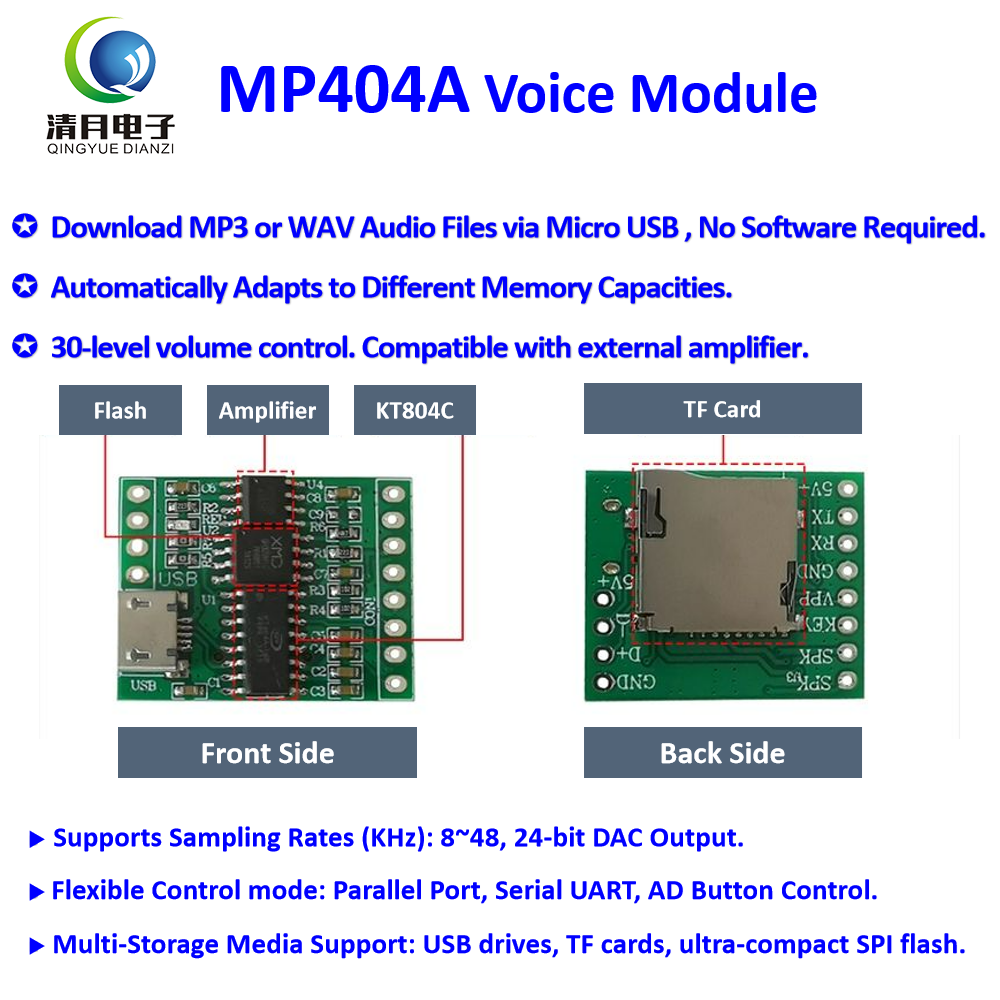

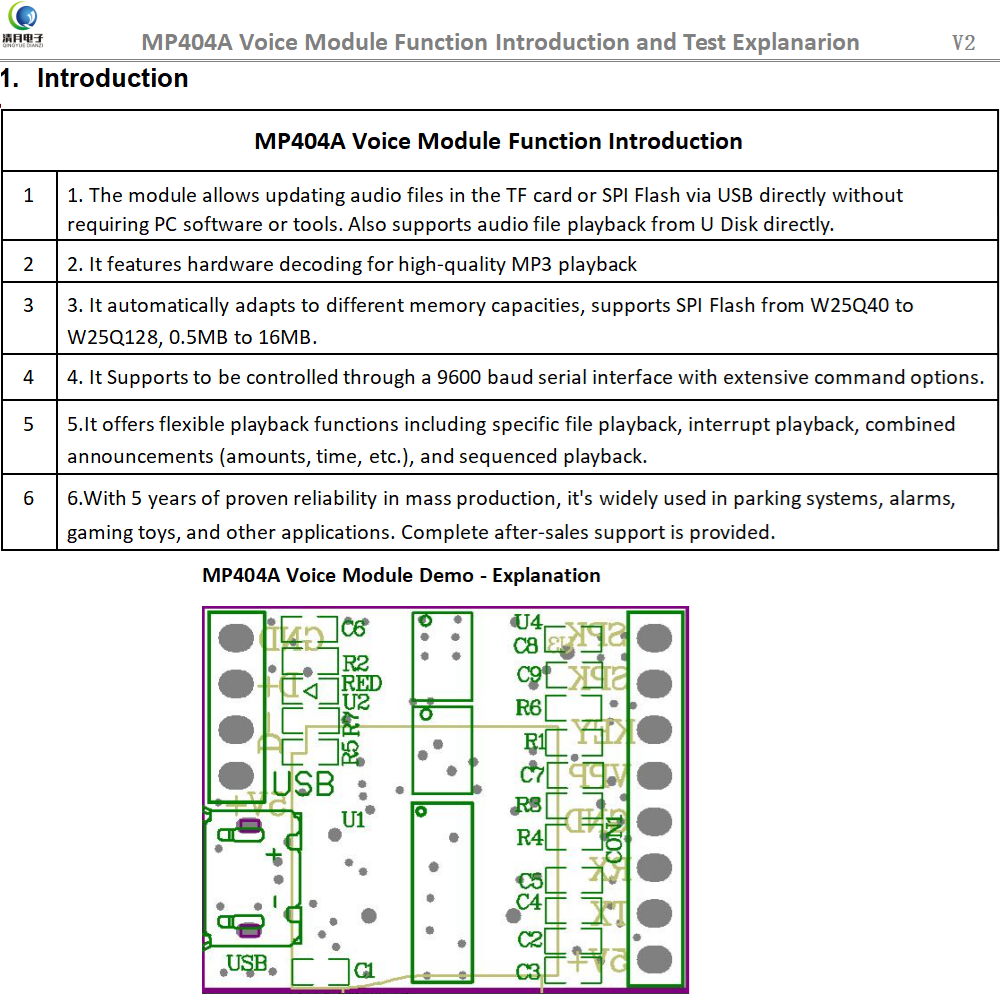

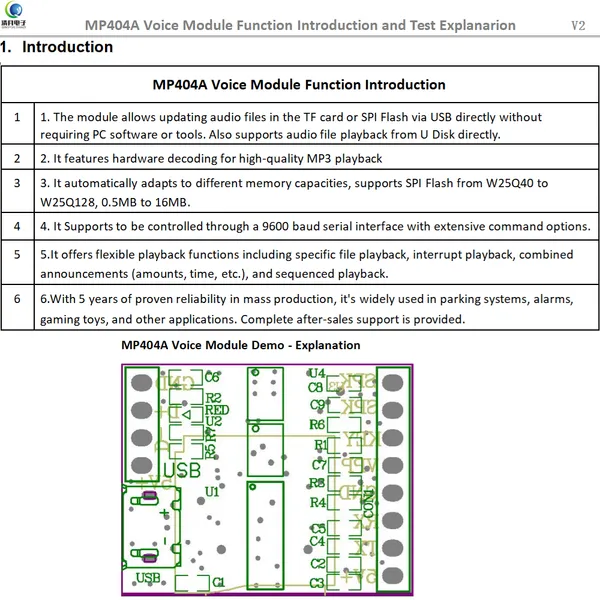

Product Name

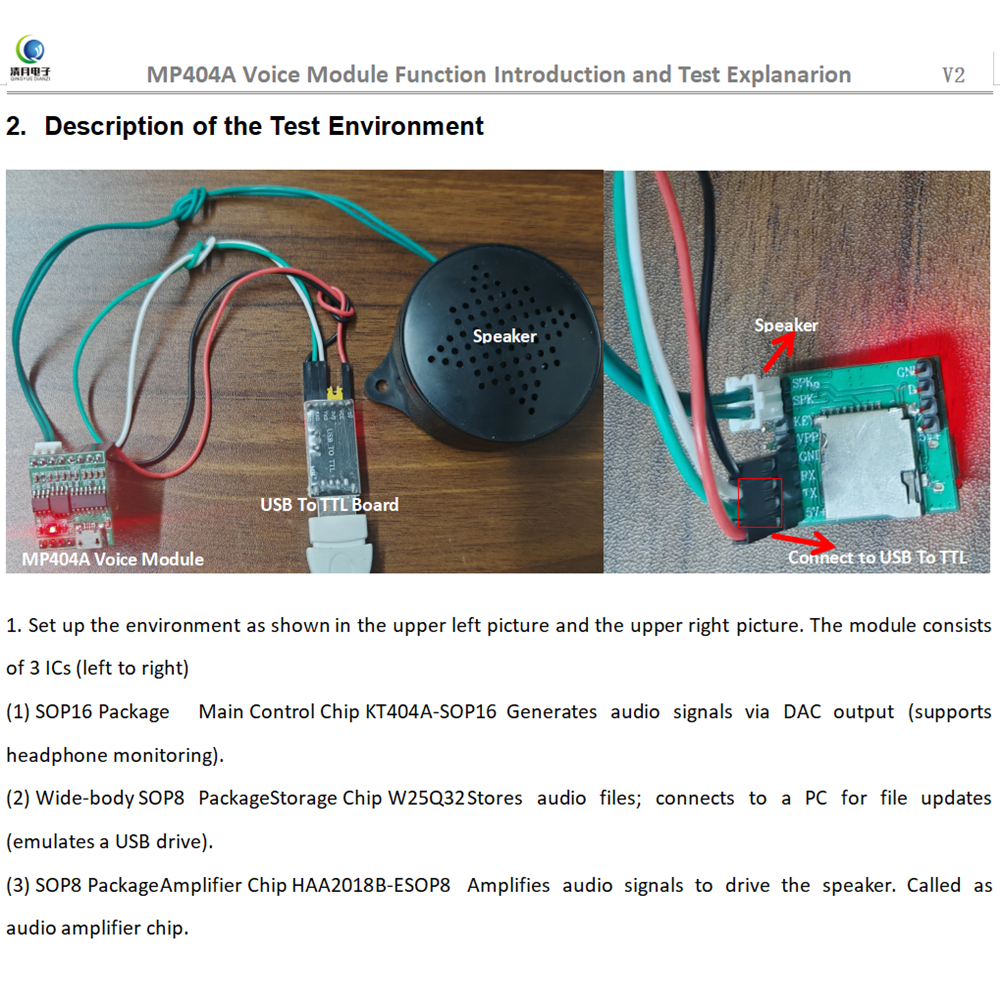

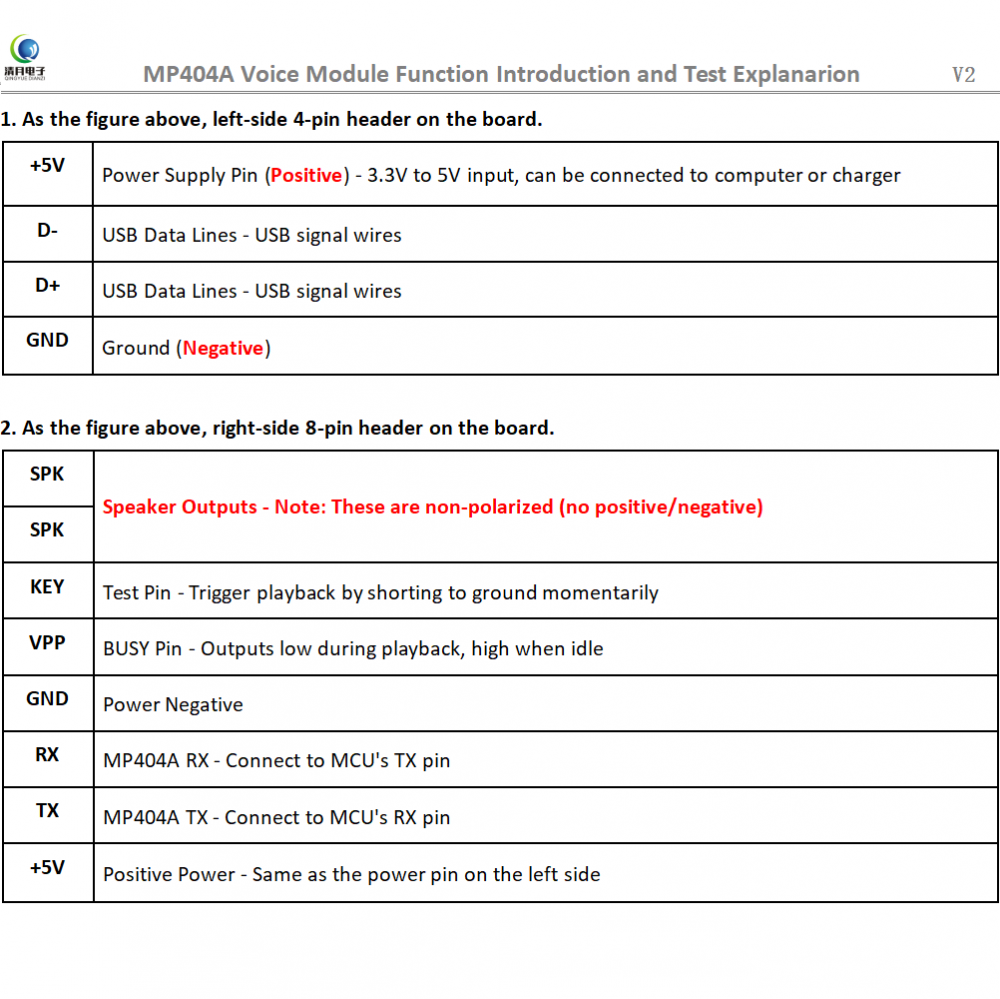

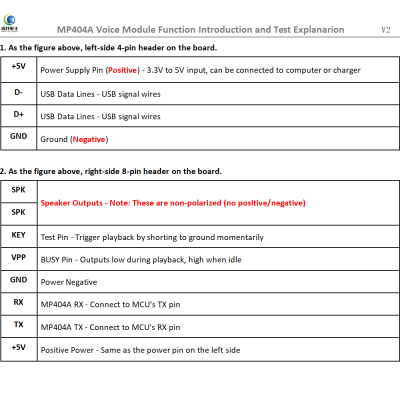

MP404A Voice Module
Model
MP404A
Supports Sampling Rates (KHz)
8~48

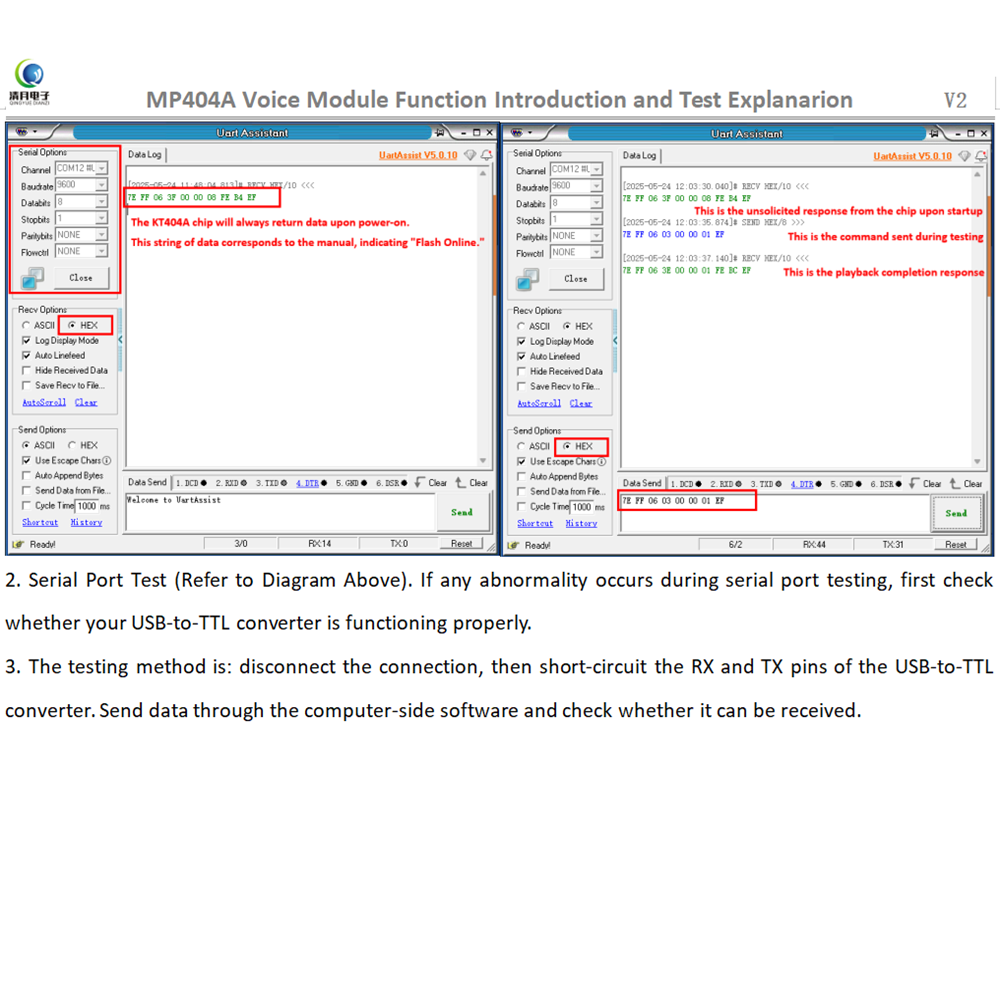

Control mode
Parallel port, Serial UART, AD button
Voice Updates
via MiniUSB, no software required
Volume Control
30-Level Volume Control
EQ Adjustment
5-Band EQ Adjustment
Programmable
YES
TF Card Support
YES
External SPI Flas
YES
Specification
Voice Module
Trademark
Qingyue Electronics
Origin
China

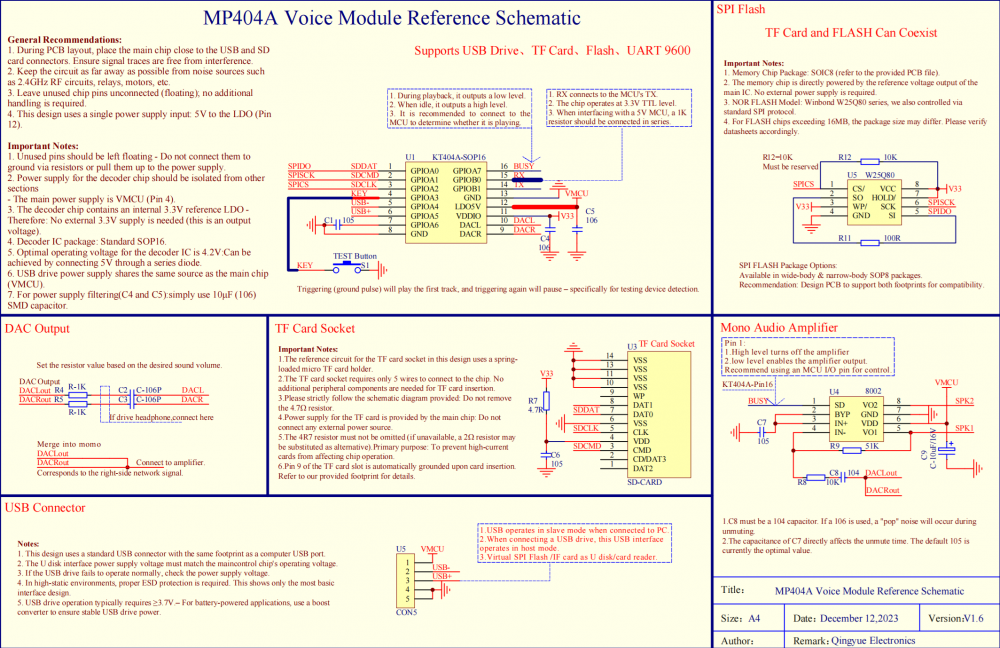

MP404A Voice Module Complete Technical Resources/Documents Download Link：
/drive/folders/1shSzhCq-E8cKD3izYhMe0BcZFdsvfqJs?usp=drive_link
