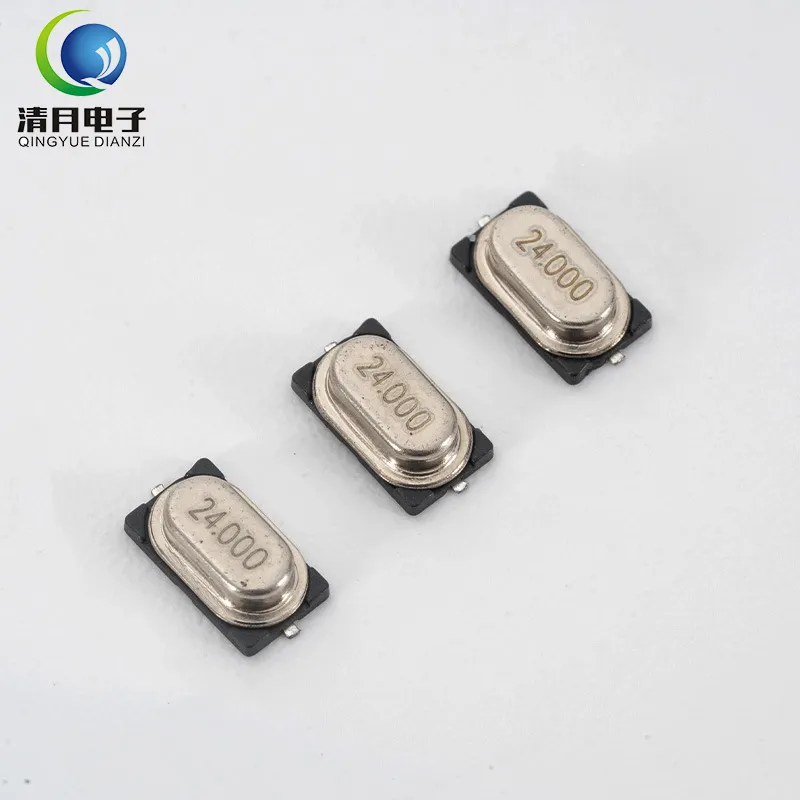

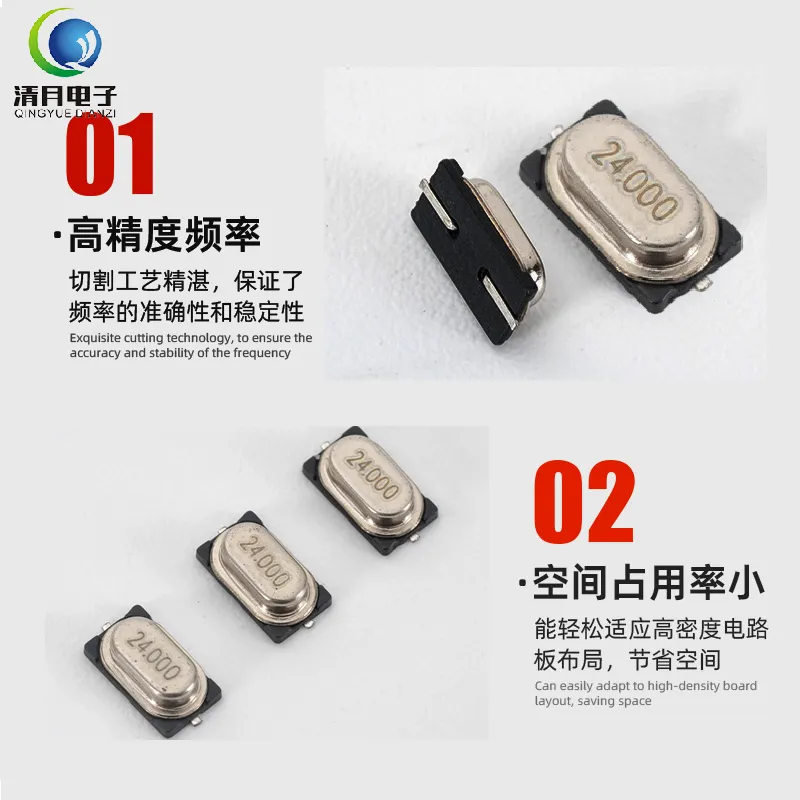

M49S Crystal Oscillator SMD Package Surface Mount 24.000MHz 12pF 10ppm High-Precision Mini 2PIN for JieLi Bluetooth Audio Chip JL IC Automotive Grade
US$ 1
≥1 Piece
Key Specifications
Get Latest Price
Material:
Quartz crystal
Type:
SMD
Aging:
5ppm/year
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
KT1025B BT301 Bluetooth 5.0 Audio Chip Support U-Disk TF Card SPIFLASH MP3 Decoder BLE SPP UART AT Command Control For Speaker DIY for Audio ReceiverUS$ 1MOQ: 1 Piece -
USB to TTL CH340G Flash Memory Board Module 3.3V/5V Universal UART Debugging Tool for MCU Arduino Nano Mini Pro ESP32 ESP8266 STC STM32 Raspberry PiUS$ 2MOQ: 1 Piece
-
KT6358M BLE Master Bluetooth Chip IC Auto Connect Slave Module Support AT Command UART Control by STM32MCU ESP32 Arduino SOP8 Transparent TransmissionUS$ 1MOQ: 1 Piece
-
3225 SMD Crystal Oscillator 24.000MHz 12pF 10ppm Matched for JieLi Bluetooth Chip IC JL Bluetooth Audio Module Wireless Device DIY Electronic SMT 4PINUS$ 1MOQ: 1 Piece
-
Voice Module MP142C 320KB Built-in Space 4 IO TTL or Serial Port Control PWM Directly Drive Speaker or DAC External Power Amplifier MP3 Sound PlaybackUS$ 2.5MOQ: 1 Piece
Material
Quartz crystal
Type
SMD
Aging
5ppm/year
Drive Level
10μW
Loading Capacitance
12pF

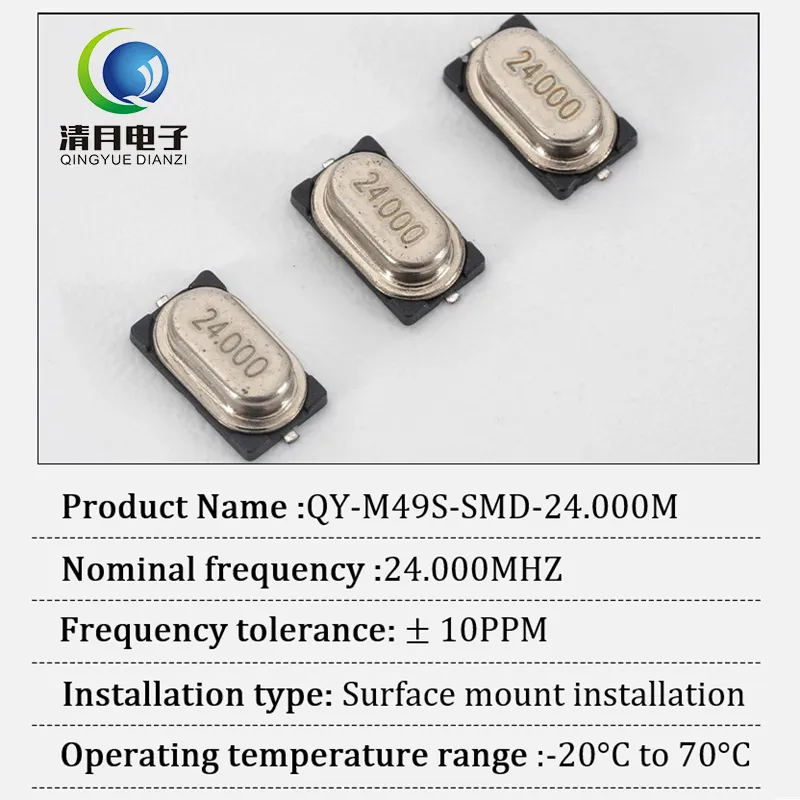

Model Number
M49S
Nominal Frequency
24.000MHz
Frequency Tolerance
± 10PPM
Temperature Tolerance
±30PPM
Equivalency Resistance
≤40Ω
Insulation Resistance
≥500MΩ at DC 100V±15V
Shunt Capacitance
≤7.0 pF
Mode of Oscillation
AT-cut FUND
Operating Temperature
-20°C to 70°C
Storage Temperature
-40℃ to +85℃
Transport Package
Tape and reel, 3000pcs/reel, 5 reels/box
Specification
SMD 2PIN
Origin
Mainland China
M49S Crystal Oscillator Technical Resources/Documents Download Link：
/drive/folders/1sqntovqI8CZb3-0yhsoeMWXWL26_toy0?usp=drive_link
