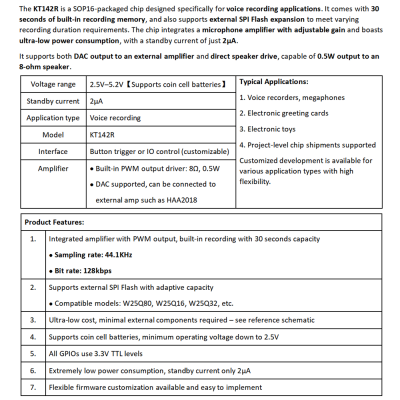

KT142R Voice Recording IC Programmable Sound Chip for Toys Stuffed Animals PWM Output Alternative to ISD1820 Low Power Flexible Firmware Bulit-in Mem
US$ 1
≥1 Piece
Key Specifications
Get Latest Price
Technics:
Thin Film IC
Operating Temperature:
-40℃ - 85℃
Shape:
Other, SOP16
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
10pcs HAA2018 Amplifier IC Small Speaker 4 Ohms 5W Audio Power Amplifier Chip SOP8 Voice Amplifier Circuit Replaces to 8002 Chip for Bluetooth SpeakerUS$ 1MOQ: 1 Piece -
KT142S Voice Chip MP3 Player Module 3 Trigger I/O USB Update 0.5W Speaker Support DAC Output Sound IC for DIY Electronics Gift Christmas Jewel CaseUS$ 1MOQ: 1 Piece
-
KT148A Sound Chip Voice IC One Wire UART Control 420s Built-in Memory Reprogrammable Alternative to OTP Alarm Box Audio Playback Voice Prompt AlarmUS$ 1MOQ: 1 Piece
-
KT404A Programmable Sound Chip UART Control Voice Chip U Disk Flash TF Card Playback Charging Audio Board Music Playback Voice Prompt Alarm BroadcastUS$ 1MOQ: 1 Piece
-
KT142C Voice Chip Module Audio Sound Playbord Chip With Programmable 4 IO Ports MP3 Decoding USB Download UART Control 9600 BR Built-in 320KByte SpaceUS$ 1MOQ: 1 Piece
Technics
Thin Film IC
Operating Temperature
-40℃ - 85℃
Shape
Other, SOP16
Conductive Type
Bipolar Integrated Circuit
Integration
VLSI
Product Name
KT142R Voice Chip
Model Number
KT142R
IC Type
Voice Recording IC
Function
Recordable,Sound Playback, Programmable
Application
Toys, Stuffed Animals, Recording Device
Low Power Current
2μA
Built in Speaker Drive
Direct drive for 8Ω 0.5W
Audio Format
MP3
Sampling Rate
44.1KHz
Bitrate
128kbps
Transport Package
50 PCS per tube
Specification
SOP16
Trademark
Qingyue Electronics
Origin
China
KT142R Voice Recording Chip Complete Technical Resources/Documents Download Link：
/drive/folders/11v8JFUaOTM-H0uN3vvCmaNVTl5o2du_s?usp=drive_link
