Home > Products > folder gluer > MJDX-3 Corrugated Stitching Machine for Box Stapler Machine
MJDX-3 Corrugated Stitching Machine for Box Stapler Machine
US$ 500
≥1 Units
- Tianjin
- T/T L/C
- 45 days
You May Like
-
RYHH-1450FS Automatic Efficient 4 6 Corner Pizza Box Making Folder Gluer Machines
-
FOLDER GLUER MACHINE / SIDE PASTING MACHINE / 4-6 CORNER BOX PASTING MACHINE
-
High Quality 4 6 Corners Full Auto Folder Gluer Stitching Machine For Pizza Box Making Machine
-
Automatic 4 6 Corner Folding Carton Box Gluing Machine/Pizza Box Gluer
-
Four Six Corner Automatic Folder Gluer Machine For Pizza Box Making Machine
-
280m/min Six Corner Auto Folding Gluing Machine for Food Carton Box Making Machine
Product Details
| Certification | ISO 9001:2000, CE | Warranty | 1 year | |
| After-sales Service | life time | Automation | Automatic | |
| Suitable for | Recycled Material, Paper | Condition | New | |
| Paper Thickness | Normal Specification Paper | Transport Package | sea | |
| Specification | set | Trademark | Royal Packing | |
| Origin | China |
Product Description

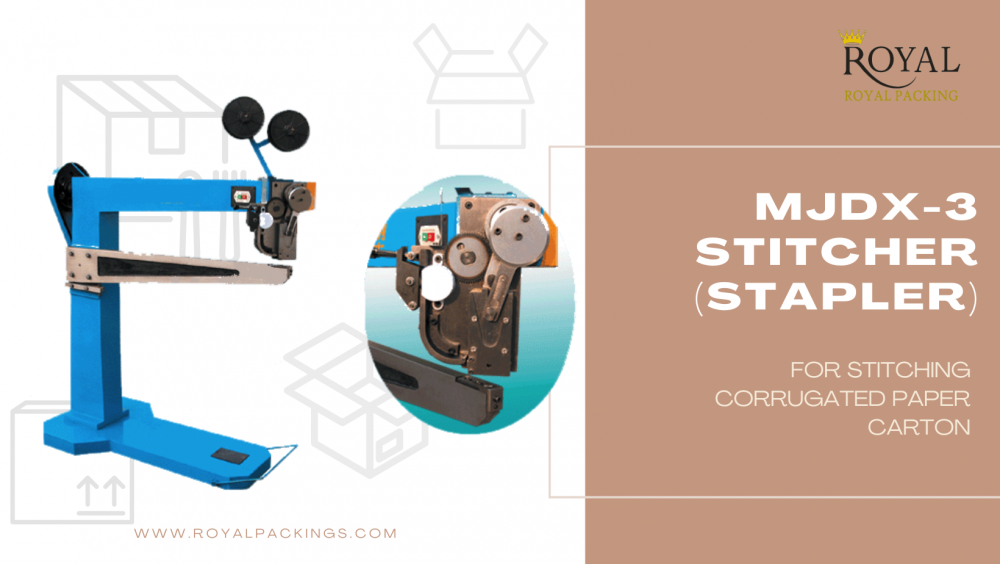

MJDX-3 Stitcher (Stapler)
v Machine Introduction:

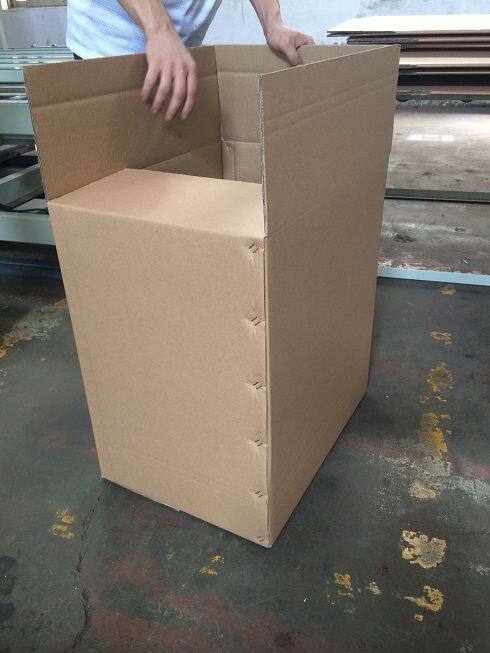

The carton stapler is the special equipment for nailing the corrugated paper carton and paper box with double-feed device. It can nail double line oblique according to 45degree at the same time and nail the big and middle size paper case continuously or interruptedly.
Sizes available: 600mm, 900mm, 1200mm, 1400mm, 1600mm, 1800mm
v Technological parameters:
Model | Speed | Thickness | Length of the arm | Machine size | Power (Kw) | Machine weight |
MJDX-3-600 | 250/min | 3,5-layer board | 600mm | 1.1*0.6*1.76 | 0.37 | 300kg |
MJDX-3-900 | 250/min | 3,5,7-layer board | 900mm | 1.4*0.6*1.76 | 0.37 | 400kg |
MJDX-3-1200 | 250/min | 3,5,7-layer board | 1200mm | 1.7*0.7*1.82 | 0.37 | 600kg |
MJDX-3-1400 | 250/min | 3,5,7-layer board | 1400mm | 1.9*0.7*1.82 | 0.75 | 800kg |
MJDX-3-1600 | 250/min | 3,5,7-layer board | 1600mm | 2.1*0.7*1.82 | 0.75 | 900kg |
MJDX-3-1800 | 250/min | 3,5,7-layer board | 1800mm | 2.3*0.7*1.82 | 0.75 | 1000kg |
