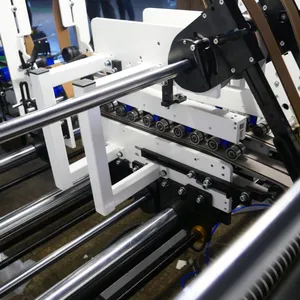

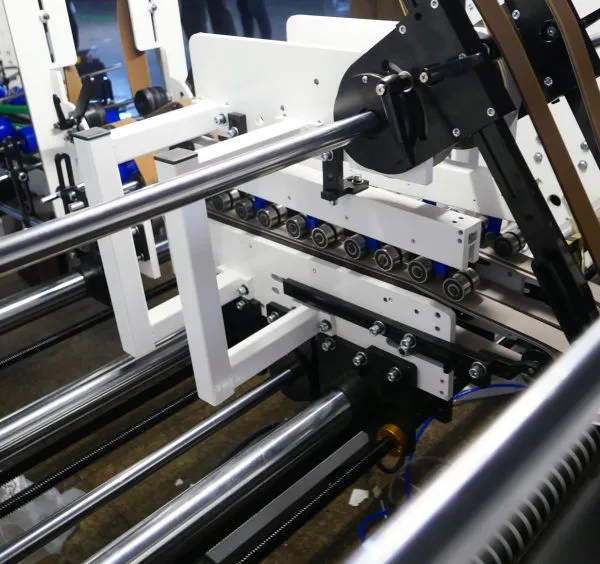

6 corner box folding gluing machine 6 points folder gluer for pizza box maker

Model

RYHH-1250/1450/1650FS EXPORT

Cardboard

200-800 g/m²

Corrugated board

A/B/C/E/F-Flute   Optional EB/AB-Flute

Max. Belt Speed

Max. 280 m/min

Jogging Speed

20 m/min

Max. Air Requirement

0.7 m³/min

Feeding way

Automatically and continuously feeding

Way of folding

Fold 1 and fold 3 are 180°and 135°,

Fold 2 and fold 4 are 180°,

Bottom folded and glued

4&6 corner

Glue Material

Water-base cold glue

Total Power Requirement

22KW  380V 50HZ 3P    (1250/1450)FS EXPORT

26KW  380V 50HZ 3P    (1650)FS EXPORT

Weight

7/7.5Ton             (1250/1450)FS EXPORT

8.2Ton               (1650)FS EXPORT

Over dimension

16.5x(2/2.2)x 1.7m     (1250/1450)FS EXPORT

18.5x 2.4x 1.9m        (1650)FS EXPORT

Feeding

Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding.

Continuously Variable Speeder to ensure feeding internal and stable transmission.

One-touch Pneumatic knife, easy for the adjustment of feeding belts.

Alignment

Alignment section, which automatically corrects the box after it is ejected from the paper feed section

Pre-folding & Back Folder

Pre-fold and back folder section: Equipped with right/ left pre-fold to complete 180° pre-folding on small side. Equipped with right/left to complete 135°pre-folding, according to the size of the box, thus making it easier to spread cartons

Bottom-lock& Back Folder

Bottom Gluer section: All gluing drums can be loaded and unloaded; Two upper gluing drums (right and left) and two lower gluing drums (right and left), to be selected depending on actual needs; Glue quantity in gluing drums is adjustable, thus ensuring stability and easy maintenance; Gluing roller is 4mm thick in standard version and can be customized according to customer requirements; Made with aluminum, gluing drum is firm and durable; Bottom gluing is completed by 4 groups of crash-locking mechanism.

Folding

Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.

Full pressing

Creaser section: Adopts continuous and automatic box collecting mechanism to ensure boxes enter the Conveyer section neat and well aligned; Equipped with electronic counter/automatic mark spraying kick plate for counting and mark-spraying purposes; Equipped with air compressor system and creasing channel system; Pressure rollers can be adjusted depending on box types and paper quality to achieve flawless box creasing.

Transmission

Equipped with feeding paper inspection device.

Equipped with impacting device to press the paper after accounting and make it easy to pack paper.

4&6-corner section

4&6-corner section: Rear-crash lock of mechanical operation in coordination with paper delivery photoelectric, thus ensuring every box continuously and accurately crashlocked and speedily, stably to make 4&6 angle box.
