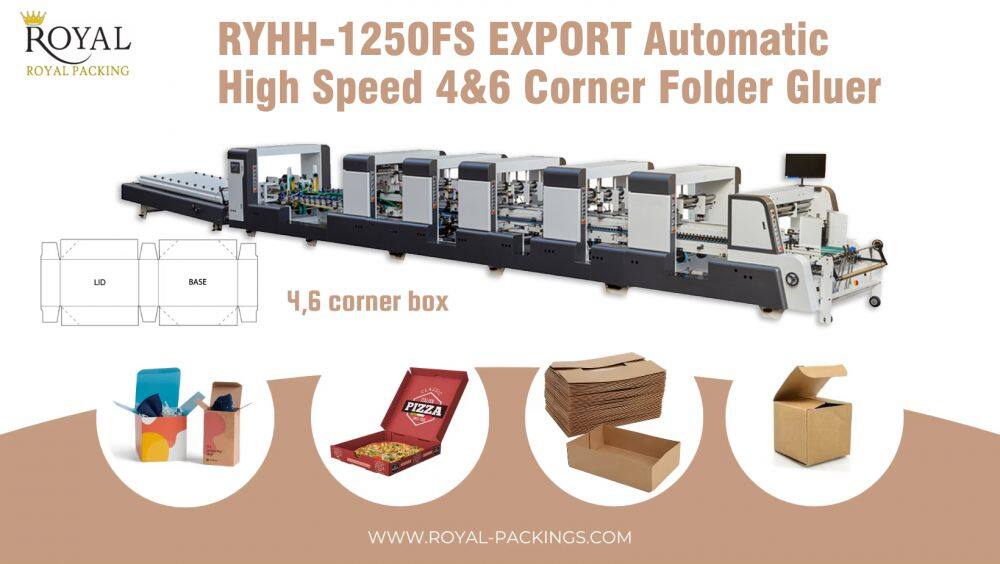

FS EXPORT Automatic High Speed 4&6 corner Folder Gluer
(Suitable for cardboard & corrugated box)
v Machine Introduction:
RYHH-FS Series folder gluer machine with 4/6 corner function,each set is controlled by independent motor,adopts electrical regulating board,PLC,imported electronic components,three plates track mode device.Aluminum plates are all chute structure,which is easy to add spare parts.The machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes,which can meet to all kinds of requirements of automatic packaging area.(We can customize for other sizes.)
v Technological parameters:
Name | RYHH-FS EXPORT Auto High Speed 4&6 Corner Folder Gluer Machine |
Model | RYHH-1250/1450/1650FS EXPORT |
Cardboard | 200-800 g/m² |
Corrugated board | A/B/C/E/F-Flute Optional EB/AB-Flute |
Max. Belt Speed | Max. 280 m/min |
Jogging Speed | 20 m/min |
Max. Air Requirement | 0.7 m³/min |
Feeding way | Automatically and continuously feeding |
Way of folding | Fold 1 and fold 3 are 180°and 135°, Fold 2 and fold 4 are 180°, Bottom folded and glued 4&6 corner |
Glue Material | Water-base cold glue |
Total Power Requirement | 22KW 380V 50HZ 3P (1250/1450)FS EXPORT 26KW 380V 50HZ 3P (1650)FS EXPORT |
Weight | 7/7.5Ton (1250/1450)FS EXPORT 8.2Ton (1650)FS EXPORT |
Over dimension | 16.5x(2/2.2)x 1.7m (1250/1450)FS EXPORT 18.5x 2.4x 1.9m (1650)FS EXPORT |
| Feature introduction | ||
| Feeding | ||

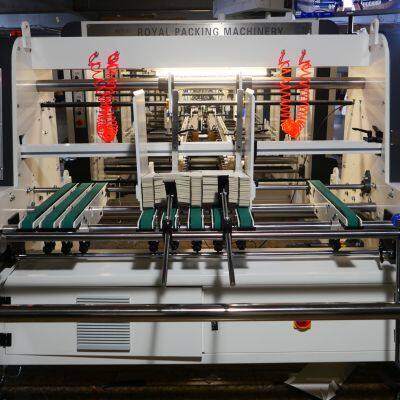

Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
| |||
Alignment |
| ||
Alignment section, which automatically corrects the box after it is ejected from the paper feed section
| |||
| Pre-folding & Back Folder Pre-fold and back folder section: Equipped with right/ left pre-fold to complete 180° pre-folding on small side. Equipped with right/left to complete 135°pre-folding, according to the size of the box, thus making it easier to spread cartons | ||
Bottom-lock& Back Folder |
| ||
Bottom Gluer section: All gluing drums can be loaded and unloaded; Two upper gluing drums (right and left) and two lower gluing drums (right and left), to be selected depending on actual needs; Glue quantity in gluing drums is adjustable, thus ensuring stability and easy maintenance; Gluing roller is 4mm thick in standard version and can be customized according to customer requirements; Made with aluminum, gluing drum is firm and durable; Bottom gluing is completed by 4 groups of crash-locking mechanism. | |||
| Folding | ||
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
| |||
Full pressing |
| ||
Creaser section: Adopts continuous and automatic box collecting mechanism to ensure boxes enter the Conveyer section neat and well aligned; Equipped with electronic counter/automatic mark spraying kick plate for counting and mark-spraying purposes; Equipped with air compressor system and creasing channel system; Pressure rollers can be adjusted depending on box types and paper quality to achieve flawless box creasing. | |||
| Transmission | ||
Equipped with feeding paper inspection device. Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
| |||
4&6-corner section |
| ||
4&6-corner section: Rear-crash lock of mechanical operation in coordination with paper delivery photoelectric, thus ensuring every box continuously and accurately crashlocked and speedily, stably to make 4&6 angle box.
| |||
