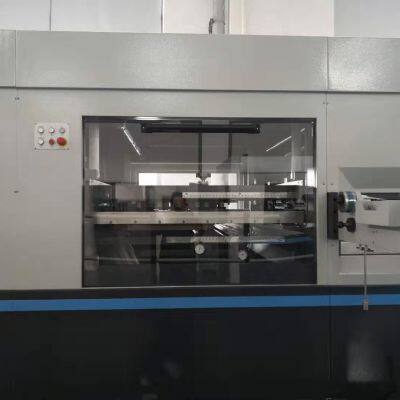

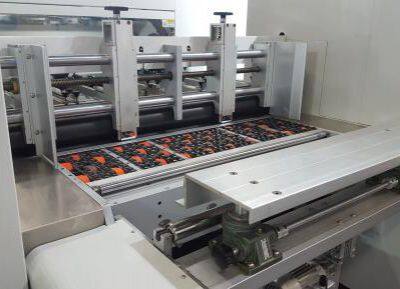

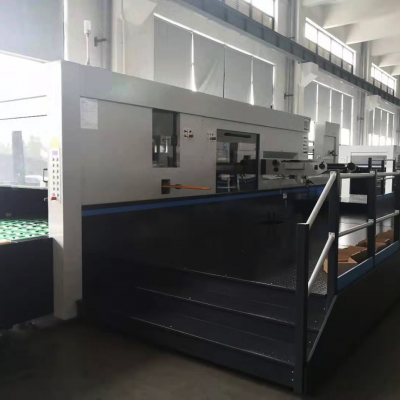

RYHK-FC Automatic Die Cutting Machine with Stripping
v Machine Introduction:
The RYHK series Automatic Die-cutting & Creasing Machine with Stripping (Lead Edge Feeder) can efficiently complete the die cutting and embossing of products, as well as maintaining the highest precision and product quality. The RYHK series Automatic Die-cutting & Creasing Machine with Stripping (Lead Edge Feeder) is well equipped and almost can adapt to all die cutting requirements of products
Features
ü CE approved
ü Center line system
ü Front waste separator
ü Non-stop delivery system
ü Human machine interface
ü Timing belt main drive
ü Overloading protection torque limit clutch
ü Automatic central lubrication system has been adopted to faclitate easier maintenance
ü Wide stock range for corrugated board
ü Photoelectrical device for safe operation
ü High speed and precision lead edge feeder equipped
ü ISO9001 and CE approved manufacturing process.
ü European, Taiwan and Japanese standard spare parts
v Technological parameters:
MODEL |
RYHK-1300 |
RYHK-1500 |
RYHK-1650 |
RYHK-1900 |
Maximum sheet size (mm) |
1290*940 |
1500*1100 |
1650*1200 |
1900*1400 |
Minimum sheet size (mm) |
550*450 |
550*450 |
650*450 |
650*450 |
Maximum cutting size (mm) |
1280*920 |
1480*1080 |
1620*1180 |
1870*1380 |
Inner chase size (mm) |
1310*970 |
1520*1130 |
1650*1230 |
1900*1430 |
Maximum cutting pressure |
400 Tons |
400 Tons |
400 Tons |
400 Tons |
Stock range |
B, E, C, A Flue and double wall or corrugated board up to 8.5mm |
|||
Min. Gripper waste |
12mm |
12mm |
12mm |
12mm |
Min. Gripper margin |
6-12mm |
6-12mm |
6-12mm |
6-12mm |
Cutting rule height |
23.8mm |
23.8mm |
23.8mm |
23.8mm |
Maximum speed |
6000 s/h |
6000 s/h |
6000 s/h |
5500 s/h |
Max. Die-cutting pressure |
400tons |
400tons |
400tons |
450tons |
Total power |
25 KW |
30 KW |
38 KW |
38 KW |
Power supply |
380V, 50HZ, 3PH |
|||
Mobile lower platen adjusting range |
±1.5mm |
±1.5mm |
±1.5mm |
±1.5mm |
minimum front waste |
12mm |
12mm |
12mm |
12mm |
Net Weight |
20/21 Tons |
23/24 Tons |
34/35 Tons |
37/38 Tons |
