Industrial Cardboard Gray White Back Paperboard Production Line for Compressed 2mm Double and Full Grey Cardboard Sheets maker

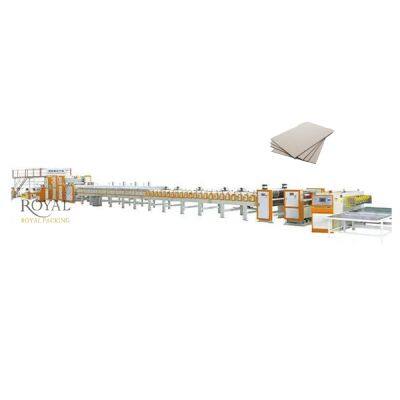

MJT 1400-100-4 LAYERS HARD BORAD PRODUCTION LINE

Design speed: 120m/min, Running speed: 40~100m/min

Max. working width: 1400mm

We are the biggest manufacturer for paperboard packaging machinery in North of China.

Our company has advanced technology, perfect design and reliable guarantee system for machines. Based on honesty and credit, we are committed to provide our customer with high quality products and favorable prices and best service. We welcome you to visit our company and give us your valuable guidance

The cardboard composite production line is suitable for transferring 2-4 layers of 60-600g/m² roll grayboard paper through hydraulic paper support, overhead bridge transportation, edge alignment, preheating, gluing, bonding, shaping, traction, and separation. Cutting, cross-cutting, and delivery table and other processes are combined into the required thick cardboard of various thicknesses and specifications. The production line has many characteristics such as reasonable design, compact structure, high degree of automation, convenient operation and maintenance, energy saving, etc., which makes up for many shortcomings of single-machine manual pasting, greatly reducing production costs, improving product quality, and flatness to cardboard , Stiffness, surface finish, bonding strength, etc. have been greatly improved, it is an ideal equipment for making cardboard.

Technological Parameters

1. DESIGN SPEED:120M/MIN

2. WORKINGSPEED:40-100M/MI

3. WORKING WIDTH:1400MM

4. SHEET CUTTING LONGTH:500MM-9999MM

5. SHEET CUTTING PRECISION:+1MM

6. SHEET THICKNESS:2-4MM

7. QUANTITY:3-5T/H

8. MACHINE LONGTH: AROUND 73 M( DECIDE BY CLIENTS REQUIREMENT)

9. PWOER :380V 50 HZ THREE & FOUR PHASE (CAN BE ADJUST BY CLIENTS REQUEST)

10. TOTALLY PWOER : AROUND 240-270KW( ACTUAL USE WILL BE LESS THAN THIS KW)

11. GULE QUANTITY: ABOUT 15-30G PER SQUARE METER PER LAYER( ACCORDING TO DIFFERENT QUALITY GULE QUANTITY DIFFERENT)
