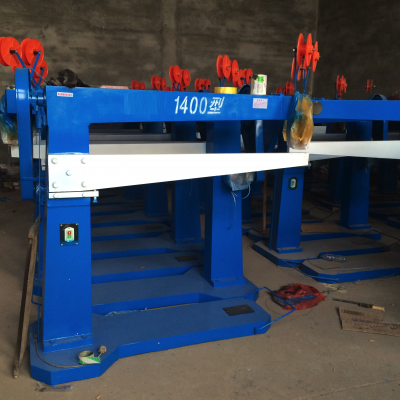

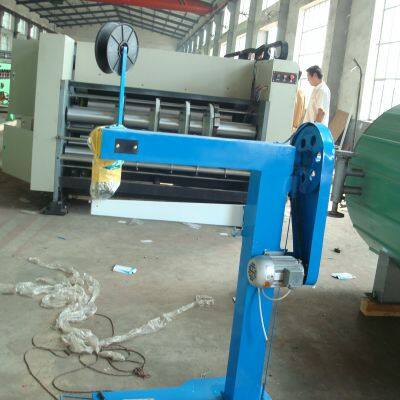

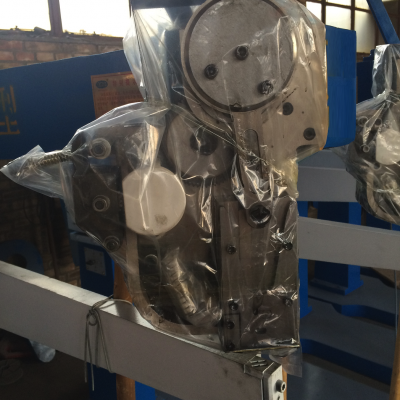

MJDX-3 Stitcher (Stapler)
v Machine Introduction:

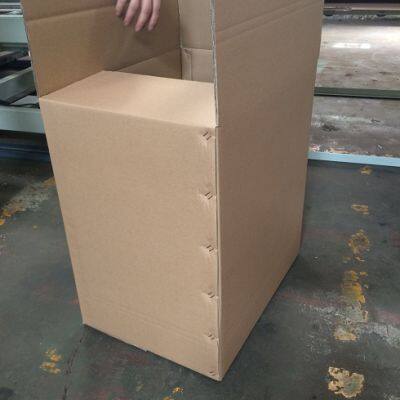

The carton stapler is the special equipment for nailing the corrugated paper carton and paper box with double-feed device. It can nail double line oblique according to 45degree at the same time and nail the big and middle size paper case continuously or interruptedly.
Sizes available: 600mm, 900mm, 1200mm, 1400mm, 1600mm, 1800mm
v Technological parameters:
Model |
Speed |
Thickness |
Length of the arm |
Machine size |
Power (Kw) |
Machine weight |
MJDX-3-600 |
250/min |
3,5-layer board |
600mm |
1.1*0.6*1.76 |
0.37 |
300kg |
MJDX-3-900 |
250/min |
3,5,7-layer board |
900mm |
1.4*0.6*1.76 |
0.37 |
400kg |
MJDX-3-1200 |
250/min |
3,5,7-layer board |
1200mm |
1.7*0.7*1.82 |
0.37 |
600kg |
MJDX-3-1400 |
250/min |
3,5,7-layer board |
1400mm |
1.9*0.7*1.82 |
0.75 |
800kg |
MJDX-3-1600 |
250/min |
3,5,7-layer board |
1600mm |
2.1*0.7*1.82 |
0.75 |
900kg |
MJDX-3-1800 |
250/min |
3,5,7-layer board |
1800mm |
2.3*0.7*1.82 |
0.75 |
1000kg |
