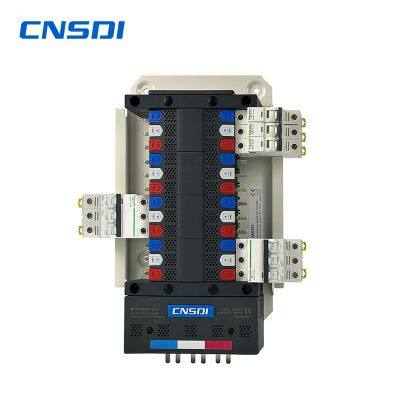

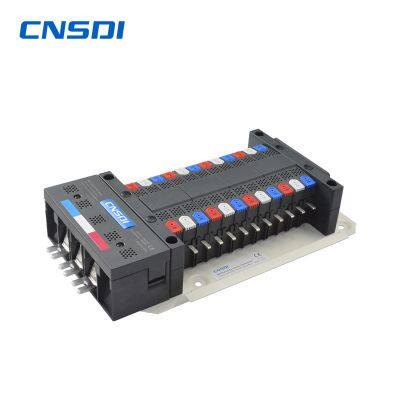

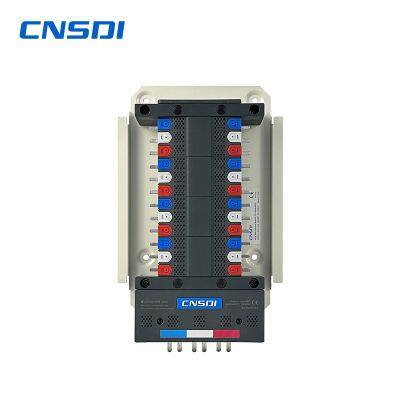

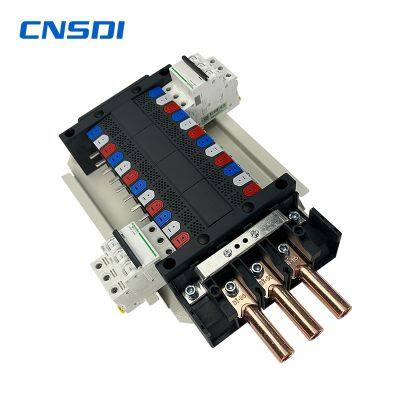

CNSDI 250A MCB Pan Assembly Busbar Chassis With 6way 8way 10way for Distribution Board
- Ningbo
- T/T L/C PayPal
- 15 days
You May Like
-
CNSDI Pin Type 63A Copper Comb Busbar With PVC Enclosure for Circuit Breaker
-
CNSDI Fork Type 63A Copper Comb Busbar With 12 Modules for Circuit Breaker
-
CNSDI Compact Design 160A Din Rail Pan Assembly With 6way 8way 10way for Distribution Board
-
CNSDI 125A Busbar Chassis With 6way 8way 10way for Distribution Board
-
CDi-PG22-3PH 225A 30Ways Pan Assembly Busbar Chassis,for Most MCB, Top or Bottom
-
CNSDI 160A-200A Pan Assembly MCB Circuit Breaker Busbar System 3015 Busbar
Product Details
| Material | Copper | Certification | Other, CE | |
| Brand | Other, CNSDI | Transport Package | Carton packaging | |
| Specification | 250A | Trademark | CNSDI | |
| Origin | ZHEJIANG |
Product Description
Product Parameter
Brand: cnsdi
Product or component type:busbar chassis
Device application:Distribution board
Part code: CDi420-3PN 250A/8W
Amperage Rating:250 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Number of ways:1 way (incomer) - 3P
Number of poles:24 x 18 mm
Number of poles:24
Standards:IEC/EN 61439-3
CNSDI's CDi420-3PN Busbar Chassis is a high-performance electrical distribution solution. This isolation Busbar chassis provides a quick and easy method to connect MCBs.The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3PN and ootgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 24 with pitch of 18mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This product complies with IEC/EN 61439-3 standard.
