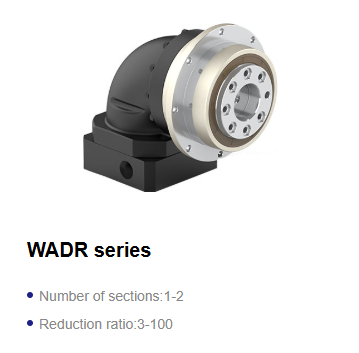

Planetary Gear Reducer photo-2

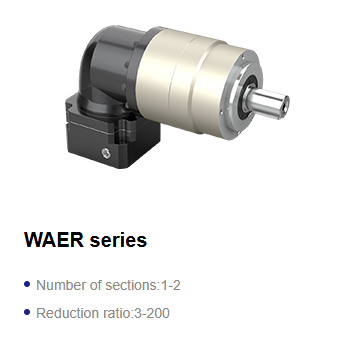

Planetary Gear Reducer photo-3

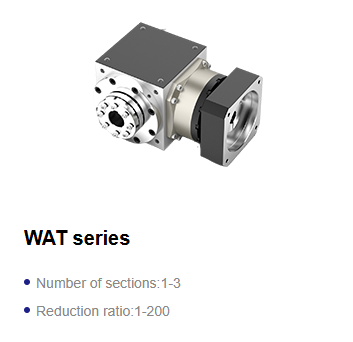

Planetary Gear Reducer photo-4

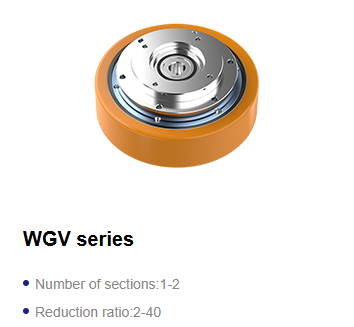

Planetary Gear Reducer photo-5
US$ 200 ≥1 Unit
Key Specifications
Get Latest Price
Year Established:
1994
Factory Size:
3,000-5,000 square meters
Product Certifications:
ISO9001, ISO9004, ISO14000
Contact Supplier Request Quote Chat Now
Zhuhai Delburg Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

WVRBR series

Overview

  • The planet arm and the output shaft are designed with an integrated structure to ensure maximum torsional rigidity.

  • The planet wheels are designed with full-rolled bearings to increase the contact area and enhance structural rigidity and output torque.

  • The gears are carburized and quenched to HRC62 with low carbon steel surface to obtain the best wear resistance and impact toughness.

  • Tooth profile imported software auxiliary design to obtain the best tooth profile to reduce noise

  • Adopted involute bevel gear design, allowing output torque to be high, more than 30% higher than straight bevel gears

  • High allowable input speed, more than 8 times higher than the straight bevel gear input

  • The involute bevel gear meshing tooth mark, after optimal optimization design, the contact tooth surface load is uniform, and the service life is long. The involute bevel gear meshing, after optimal kinematic error analysis and strict process control, to ensure high-precision operation clearance.


Performance Data Parameter Table of Reducer



Specification		 unit
Unit 		Number of sections
Stage 		Reduction ratio
Ratio 		WVRBR060 WVRBR090 WVRBR115 WVRBR140 WVRBR180 WVRBR220
Rated output torqueT
2N 		Nm 1 3 55 130 208 342 588 1140
4 50 140 290 540 1050 1700
5 60 160 330 650 1200 2000
6 55 150 310 600 1100 1900
7 50 140 300 550 1000 1700
8 50 140 290 542 1050 1450
10 60 160 330 650 1200 2000
12 55 150 310 600 1100 1900
14 50 140 300 550 1000 1700
20 35 90 200 400 760 1350
2 15 55 130 208 342 588 1140
25 60 160 330 650 1200 2000
30 55 130 208 342 588 1140
35 50 140 300 550 1000 1700
40 50 140 290 542 1050 1700
50 60 160 330 650 1200 2000
60 55 150 310 600 1100 1900
70 50 140 300 550 1000 1700
80 50 140 290 542 1050 1700
100 60 160 330 650 1200 2000
120 55 150 310 600 1100 1900
140 50 140 300 550 1000 1700
160 40 100 230 450 850 1450
200 35 90 200 400 760 1350
Emergency stop torque T2NOT Nm 1,2 3~200 Triple rated output torque(1000)/Triple rated output torque
Rated input speed n/Rated input speed n1N rpm 1,2 3~200 5000 4000 4000 3000 3000 2000
Maximum iutput speed n/Maximum iutput speed n1B rpm 1,2 3~200 10000 8000 8000 6000 6000 3500
Precision backlash/Precision backlashP1 arcmin 1 3~20 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5
2 15~200 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7
Standard backlash/Standard backlashP2 arcmin 1 3~20 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7
2 15~200 ≤10 ≤10 ≤10 ≤10 ≤10 ≤10
Torsional rigidity/Torsional rigidity Nm/arcmin 1,2 3~200 7 14 25 50 145 225
Allowable radial force F2aB N 1,2 3~200 1530 3250 6700 9400 14500 20000
Allowable axial force/Allowable axial force F2aB N 1,2 3~200 765 1625 3350 4700 7250 10000
Lifespan hr 1,2 3~200 20000
Efficiency/Efficiency % 1 3~20 95%
2 25~200 92%
Weight/Weight kg 1 3~20 2.1 6.4 13 24.5 51 68
2 25~200 1.5 7.8 14.2 27.5 54 72
Working temperature/Working temperature ℃ 1,2 3~200 -20℃-+40℃
Lubrication/Lubricating


Synthetic lubricating greas/Synthetic lubricating greas
Protection level/IP Grade
1,2 3~200 IP65
Installation direction/Installation direction

3~200 any partyto/In any direction
Noise level(n1=3000rpm,no load)
Noise level (n1=3000rpm,off load) 		dB(A) 1,2 3~200 ≤63 ≤65 ≤68 ≤70 ≤72 ≤74
