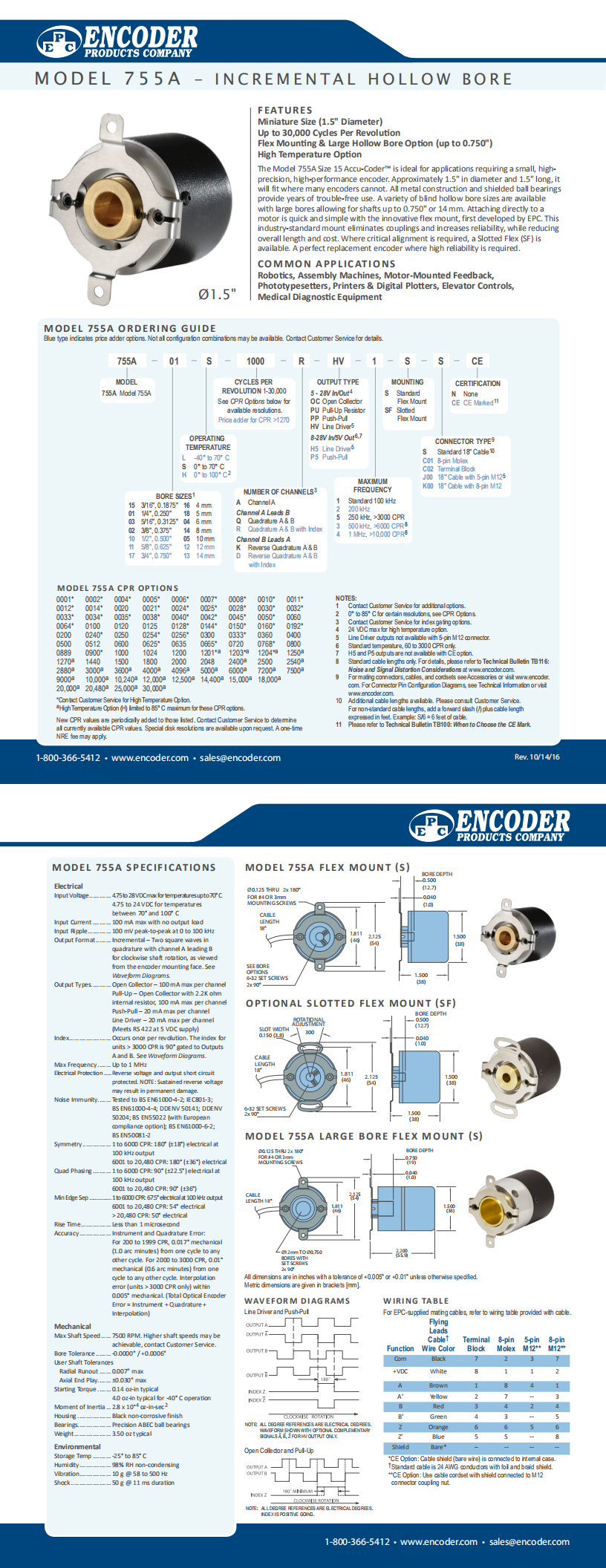

ACCU-CODER MODEL 755A incremental encoder

Features

Miniature size (1.5" diameter)

Up to 30,000 Cycles Per Revolution

Flex Mounting & Large Hollow Bore Option (up to 0.750")

High Temperature Option

The Model 755A Size 15 Accu-Coder™ is ideal for applications requiring a small, highprecision, high-performance encoder. Approximately 1.5" in diameter and 1.5" long, it  will fit where many encoders cannot. All metal construction and shielded ball bearings  provide years of trouble-free use. A variety of blind hollow bore sizes are available  with large bores allowing for shafts up to 0.750" or 14 mm. Attaching directly to a  motor is quick and simple with the innovative flex mount, first developed by EPC. This  industry-standard mount eliminates couplings and increases reliability, while reducing  overall length and cost. Where critical alignment is required, a Slotted Flex (SF) is  available. A perfect replacement encoder where high reliability is required.

Common Applications

Robotics, Assembly Machines, Motor-Mounted Feedback,  Phototypesetters, Printers & Digital Plotters, Elevator Controls,  Medical Diagnostic Equipment
