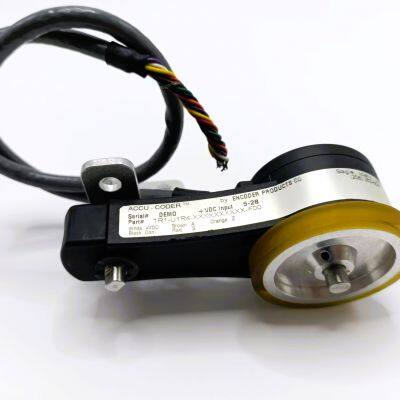

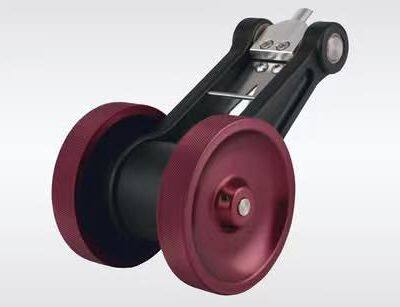

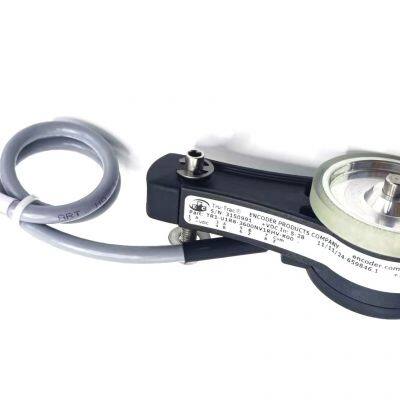

ACCU-CODER MODEL TR1 incremental encoder

Features

Encoder and Measuring Wheel Solution Integrated Into One Compact Unit

Spring Loaded Torsion Arm Makes Wheel Pressure Adjustments a Snap Easily Installed in a Vertical,

 Horizontal or Upside Down Orientation  Operates Over a Variety of Surfaces at Speeds up to 3000 Feet per Minute

Integrated Module Simplifies Your System Design, Reducing Cost

With operating speeds up to 3000 feet per minute and a wide variety of configuration  options, the TR1 Tru-Trac™ is the versatile solution for tracking velocity, position,  or distance over a wide variety of surfaces in almost any application. An integrated  encoder and spring-loaded measuring wheel assembly available in one unit, the  TR1 is both easy-to-use and compact. Plus, the TR1 housing is a durable, conductive  composite material that will eliminate static build up. Its spring-loaded torsion  arm offers adjustable torsion load, allowing the TR1 to be mounted in almost any  orientation – even upside-down. And the threaded shaft on the pivot axis is easily  reversible in the field, providing mounting access from either side. The TR1 is your  solution for a compact, linear encoder.

Common Applications

Web Tension Control, Paper Monitoring, Glue Dispensing, Linear Material  Monitoring, Conveyor Systems, Printing, Labeling, Document Handling
