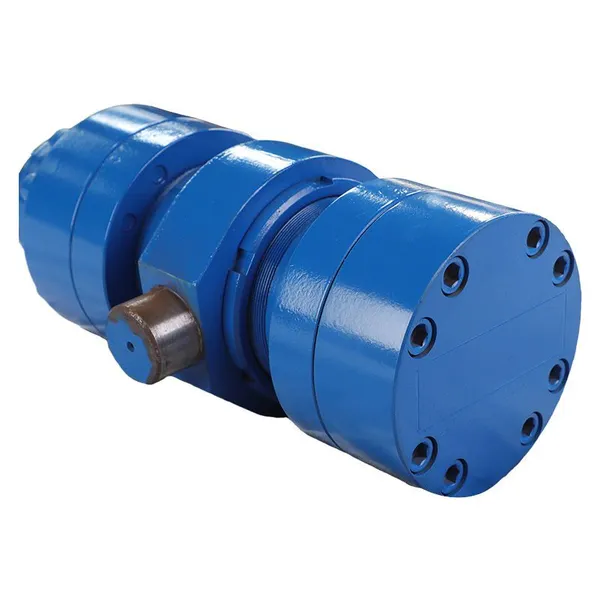

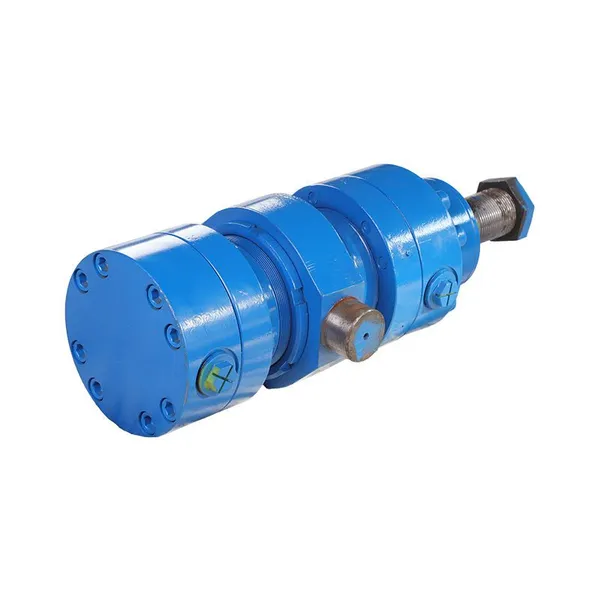

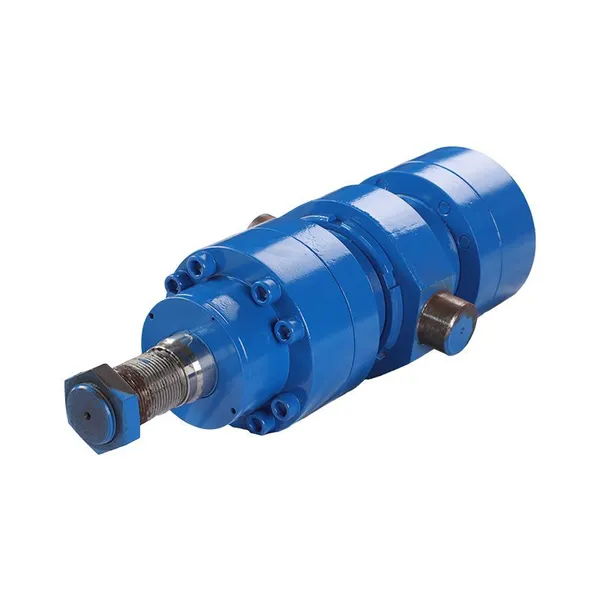

Heavy-Duty Flange-Mounted Welded Hydraulic Cylinders for Lifting Equipment
Manufacturer-Direct Steel Actuators Engineered for Vertical Load Reliability
✅ Robust Welded Steel Construction
Material: ST52-3N Cylinder Tubes | Hard Chrome Rods (HRC 60+)
Pressure Rating: 25 MPa (3,625 PSI) | Test Pressure: 38 MPa
Welding Standard: EN 287-1 Certified Full-Penetration Welds
✅ Flange Mounting Precision
ISO 6022 Mounting Patterns (SAE/NFPA Customizable)
Zero-Deformation Flange Design (Parallelism ≤0.1mm)
Anti-Vibration Locking Mechanism
✅ Lifting-Specific Engineering
Stroke Accuracy: ±0.15mm/m for Precision Positioning
Safety Factor: 4:1 Static Load Rating (Per FEM 100k cycles)
Seal System: Double Lip Buffering + Anti-Burst Valves
► Scissor Lift Platforms
► Dock Leveler Systems
► Industrial Crane Hydraulic Jacks
► Automated Warehouse Vertical Conveyors
Manufacturer Direct Value:
▸ 100% Pressure & Leakage Testing
▸ Custom Bore/Stroke (50-300mm Ø | ≤2,000mm Stroke)
▸ 24-Month Warranty (IP66 Corrosion Resistance Optional)
Certified Safety: ISO 6020 | CE Machinery Directive | EN 280 Lifting Compliance
*Engineered to eliminate mid-stroke drift, prevent flange fatigue failure, and deliver maintenance-free operation in 24/7 material handling systems.*
