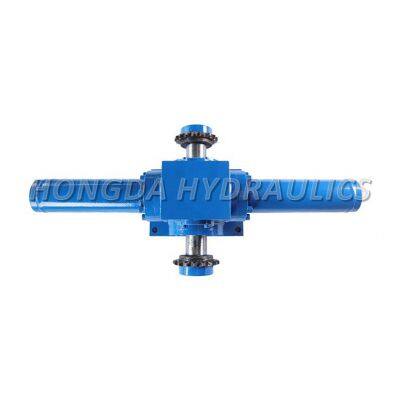

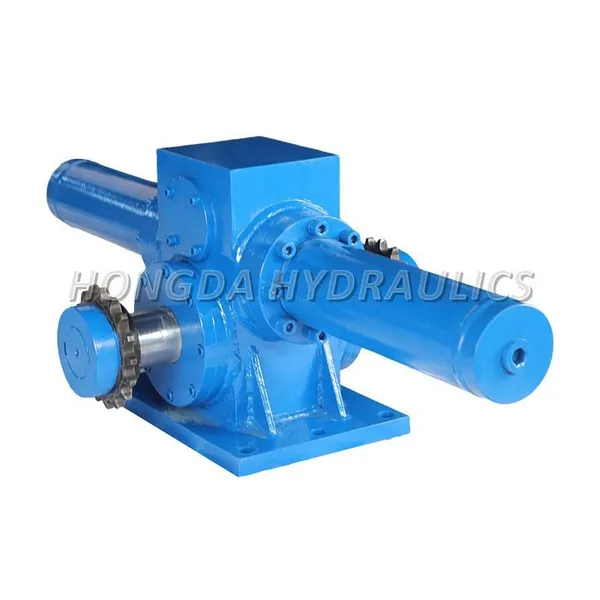

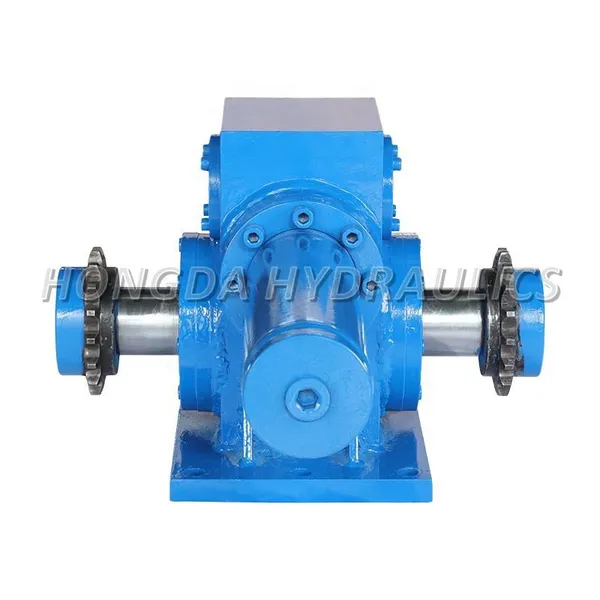

Customize Hydraulic Cylinder Manufacturer Direct Supply Hydraulic Rotary Actuator (Rack & Pinion) Engineering Cylinder

Custom Hydraulic Rotary Actuators (Rack & Pinion) | Direct Manufacturer Supply
Precision Torque · Zero-Backlash Design · Engineered for Heavy-Duty Motion Control

✅ Torque Range: 200~20,000 Nm (Customizable)
✅ Rotation Angle: 0°~360° / 0°~720° (Multi-Turn Options)
✅ Pressure Rating: Up to 25 MPa | Impact Resistance: 1.5x Rated Torque
✅ Precision Indexing: ±0.1° Repeatability (Servo-Valve Compatible)

▶ Gear Engineering

• Hardened Alloy Steel Gears (HRC 58-62)

• Anti-Wear Rack Coatings (Laser Cladding Optional)
  ▶ Sealing Solutions

• Rotary Lip Seals (NBR/FKM/PTFE)

• IP68/IP69K Submersible Options
  ▶ Mounting & Porting

• ISO 14094 Flange Patterns

• SAE/BSP/NPT Ports

• Dual Feedback Ports (Resolver/Encoder Ready)

► Valve Automation (Ball/Butterfly Valves)
► Heavy Machinery Swing Drives (Excavators, Cranes)
► Steel Mill Roll Positioning Systems
► Wind Turbine Pitch Control
► Robotic Welding Positioners

Manufacturer Direct Advantages:
▸ End-to-End Engineering Support: FEA torque simulation · Shock load analysis
▸ Zero Supply Chain Markup: 30% cost reduction vs. distributor pricing
▸ Rapid Prototyping: 15-day sample delivery
▸ Certified Durability: 100,000+ cycle testing (ISO 17296)

Compliance: ATEX Directive 2014/34/EU · SIL 3 Functional Safety · RoHS

*Engineered to eliminate backlash-induced positioning drift, withstand shock loads from inertial stops, and deliver maintenance-free rotation in 24/7 operations.*
