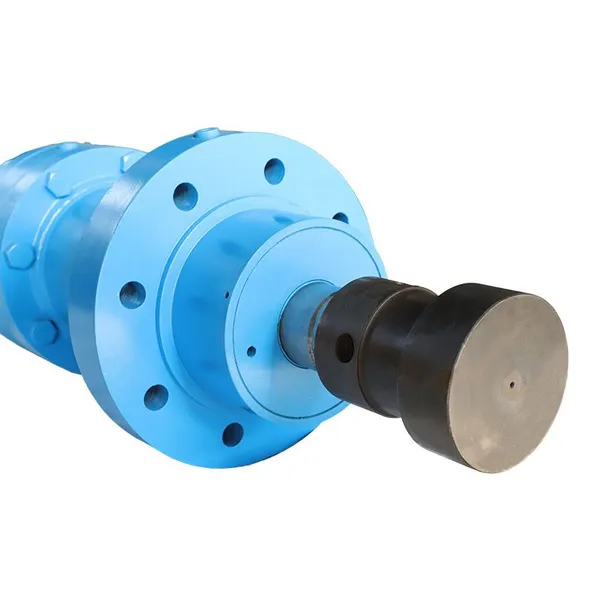

HSG40 Custom Hydraulic Actuator for Raw Material Combustion Systems (360/280-1200)
Extreme-Temperature Endurance · Zero-Leakage Sealing · Anti-Coking Design
*Manufacturer-Direct Heavy-Duty Cylinders for 24/7 Combustion Processes*
✓ Bore/Rod: Ø360mm/Ø280mm
✓ Stroke: 1200mm (Max. 3500mm Custom)
✓ Pressure: 32 MPa | Temperature: -30℃~+450℃ (Peak 650℃)
✓ Speed: 0.05~500mm/s | Lifespan: 250,000+ cycles @ 300℃
✅ Thermal Management System
Multi-Layer Insulated Piston (Ceramic-Matrix Composite Coating)
Active Rod Cooling Jacket (Water/Glycol Circulation Ports)
✅ High-Pressure SealingDynamic Metal C-Ring Seals (Inconel 718)
Fire-Resistant Rod Seals (Per ISO 17296)
✅ Anti-Coking ConstructionMirror-Polished Rod (Ra≤0.1μm, HV1100 Hard Chrome)
Self-Cleaning Rod Wiper (Automatic Carbon Removal)
► 3,000-Hour Thermal Cycling Test (Simulated Combustion Chamber)
► Zero Leakage at 450℃/32MPa (Per ISO 10763)
► Radial Load Resistance: 15% of Axial Force (Per DIN 24554)
▸ Mounting Configurations:
Front Flange ISO 6022 (Type A/F)
Rear Trunnion with Heat Shields
▸ Material Upgrades:Cylinder Tube: 27SiMn High-Temp Steel
Piston Rod: Plasma-Sprayed Al₂O₃ Coating
▸ Sensing Integration:Built-in Temperature/Pressure Transducers
Absolute Position Encoder (0.05mm Resolution)
Compliance: ASME Section VIII Div.1 · PED 2014/68/EU · SIL 2
Engineered to withstand direct flame radiation, prevent seal degradation from pyrolysis gases, and maintain force accuracy in cement kilns/biomass combustors/chemical incinerators.
