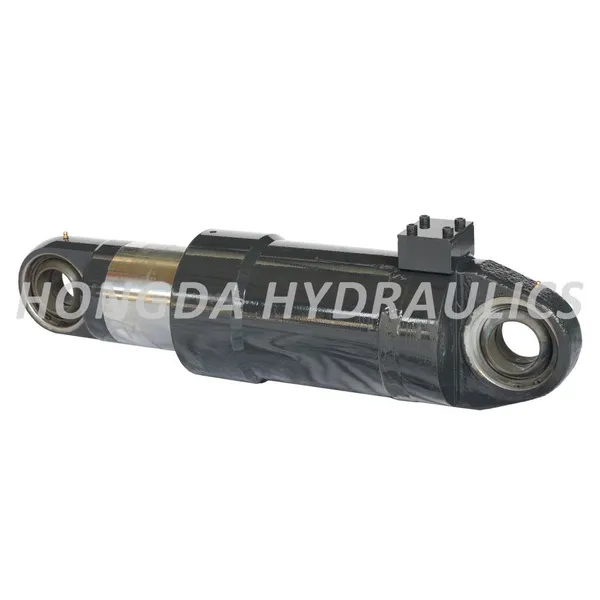

HongDa Balanced Hydraulic Cylinder System (150/140-180) | Actuator + Valve Integrated Solution
Precision Force Equalization · Zero Drift · Heavy-Duty Synchronization
Manufacturer-Direct Supply for Demanding Industrial Systems
✓ Cylinder:
Bore/Rod: Ø150mm/Ø140mm
Stroke: 180mm (Custom 50-2000mm)
Pressure: 25 MPa | Test Pressure: 40 MPa
✓ Balancing Valve:Flow Rate: 80 L/min | Response Time: ≤15 ms
Load Holding Accuracy: ±1.5% FS
✓ Synchronization:Multi-Cylinder Position Error: ≤0.2mm
FEM-Certified Anti-Buckling Design
✅ Force Equalization Technology
Pilot-Operated Counterbalance Valve (Pressure Compensated)
Cross-Port Load Transfer for Tilt Prevention
✅ Robust ConstructionCylinder Tube: 42CrMo4 QT Steel (HB 280-320)
Piston Rod: Hard Chrome Plating (HV≥950, Thickness 30μm)
Seal System: 5-Layer Step Seals (NOK T-SEAL)
✅ Integrated Hydraulic ControlPre-mounted Valve Manifold (ISO 4401-03-02-0-94)
Servo-Proportional Interface (DSV/DSL Ports)
► Forging Press Ejection Systems
► Steel Mill Roll Gap Adjustment
► Heavy Lift Synchronized Platforms
► Plastic Injection Mold Clamping
Manufacturer Direct Value:
▸ End-to-End System Testing: Valve-Cylinder Matched Performance
▸ Custom Configurations:
Rod End Treatments (Spherical/Clevis)
Position Feedback (Magnetostrictive/LVDT)
▸ Certified Reliability:500,000 Cycle Fatigue Test (ISO 6020-2)
24-Month Warranty
Compliance: CE PED 2014/68/EU · SIL 2 Functional Safety · RoHS
*Engineered to eliminate force differentials in asymmetric loads, prevent uncontrolled drift during holding phases, and maintain synchronization under 200+ ton dynamic loads.*
