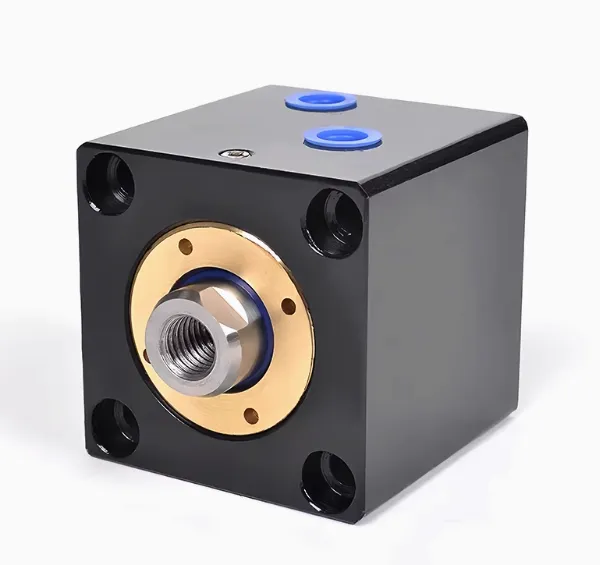

CX-SD Series Thin Cylinder Hydraulic Actuators
The CX-SD series (including models SD20, SD25, SD32, SD40, SD50, and SD63) represents a specialized line of compact, square-body hydraulic cylinders engineered for precision applications where space is at a premium.
These actuators are characterized by their low-profile, thin-wall cylinder design and a unique integral inner teeth fixture on the piston rod. This built-in feature allows for direct and secure mounting of dies, molds, or other tooling, eliminating the need for additional adapters and ensuring excellent concentricity and force transmission.
The square outer body provides superior stability and simplifies installation in tight spaces, making them an ideal solution for vertical pressing, clamping, ejecting, and fixturing tasks in industries such as mold manufacturing, precision assembly, and automation.
Key Features:
Compact, Square Design: Saves space and prevents rotation for stable operation.
Integrated Inner Teeth: Allows for direct, secure attachment of tooling without extra parts.
Thin Cylinder Construction: Ideal for applications with strict height restrictions.
Vertical Mounting Orientation: Optimized for pressing and ejecting forces.
Multiple Bore Sizes (20mm - 63mm): Provides a range of force options to meet various application requirements.
