Mirror Polished Stainless Steel Welding 180 Degree Elbow Bend
Description
| Connections | Thread,Clamp,Weld |
| Material | SS304,SS316L |
| Operated | Manual, Pneumatic |
| Size | 1/4"~8" DN10~DN200 |
| Standard | 3A DIN SMS |
| Internal surface finish | Ra0.4~0.6μm |
| External surface finish | Ra0.8~1.6μm |

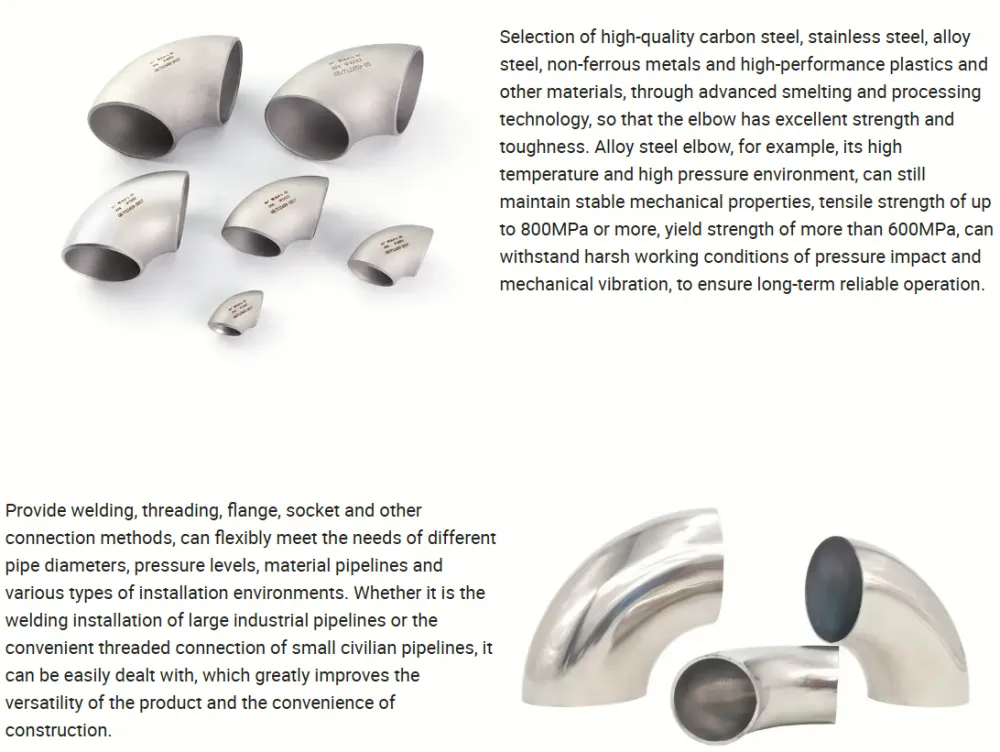

Elbow, its main function is to change the direction of the pipeline, so that the fluid can flow in the pipeline in accordance with the preset path. In the actual working process, when the fluid flows into the elbow, due to the special bending structure inside the elbow, the flow direction of the fluid will change, in accordance with the principle of fluid dynamics on the basis of a smooth turn to another pipe, so as to realize the complex layout of the entire piping system and functional requirements. Its working principle is based on the precise guidance of the fluid trajectory, through the reasonable design of the radius of curvature and bending angle, effectively reduce the energy loss and pressure drop in the process of turning the fluid to ensure that the piping system operates efficiently and stably.
Applications
This product is suitable for the stainless steel pipe system in dairy, food, beer, beverage, pharmaceutical, cosmetics and other industries.
All kinds of pipe products have DIN, ISO, 3A, SMS, BS, IDF, DS, BPE standard. And pipe fitting: 45°/90°/180°bend series, tee/cross series, concentric(eccentric) series make your pipeline system free connectivity. Each series pipe fittings have weld, clamp, thread and flange four common install ways with your pipe system standard connections.
size |
ASME OUTSIDE DIAMETER |
SCH40 |
SCH160 |
15 1/2" |
21.3 |
2.77 |
4.78 |
25 1" |
26.7 |
2.87 |
5.56 |
50 2" |
60.3 |
3.91 |
8.74 |
80 3" |
88.9 |
5.49 |
11.13 |
100 4" |
114.3 |
6.02 |
13.49 |
125 5" |
141.3 |
6.55 |
15.99 |
Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
