Home > Electrical & Electronics > Power Supply & Distribution > UPS > AINUO Programmable Bidirectional DC Power Supply ANEVH1500-80

AINUO Programmable Bidirectional DC Power Supply ANEVH1500-80

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

On-line

Classification:

Lighting

Application:

Defence

Contact Supplier Request Quote Chat Now

Shenzhen Strongwill Trading Company

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type On-line

Classification Lighting

Application Defence

Phase Three Phase

Brand Other, AINUO

Standby Time Standard Machine

Standby UPS Square Wave Output UPS

Equipment Mode Other

Protection Overcurrent

Output Capacity Large Type

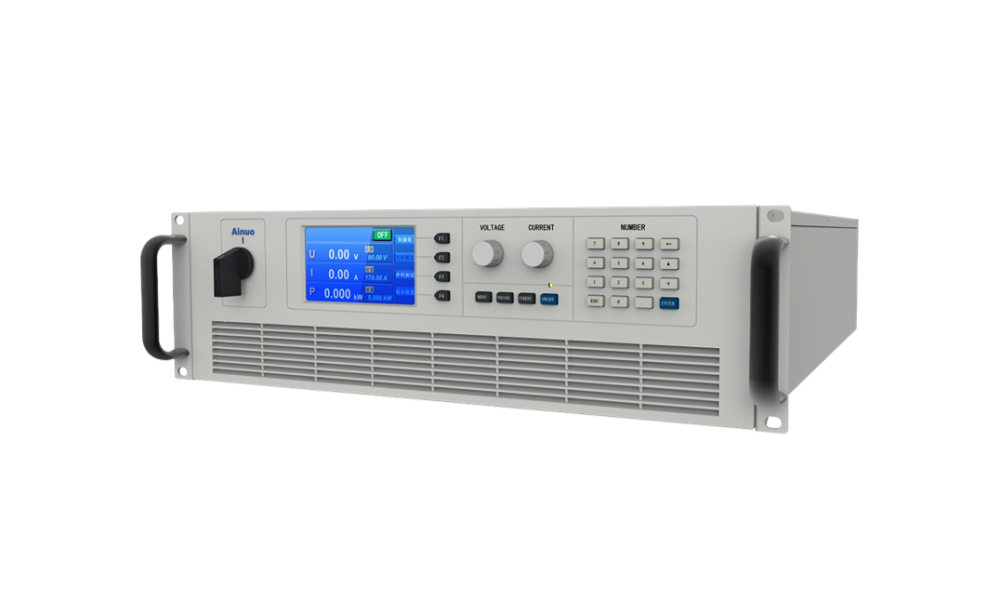

AINUO Programmable Bidirectional DC Power Supply ANEVH1500-80

The ANEVH(F) Series is a programmable DC power supply that integrates DC power and feedback load. It can function as a source, outputting power to the outside world, and as a sink, absorbing power and returning it cleanly to the grid, achieving standard bidirectional operation The ANEVH(F) Series of bidirectional programmable DC test power supplies include 7 voltage levels, coveringavoltage range from 0V to 2250V, supporting the parallel operation of multiple units, and expandable up to 1MV in maximum power. The energy flows bidirectionally, with automatic seamless switching, high power density, fast dynamic response characteristics, built-in function generators and standard test curves, and the ability to generate multiple waveforms freely. It can be used in laboratories, automotive electronics, new energy battery-motor-electronic control, microgrids, high-power tests, and other testing scenarios

Ordering and function expansion 3U Model ANEVH100-170(F) 100V/170A/5KW ANEVH100-340(F) 100V/340A/10kW Moto DC Power SupplyAC Power Supply Load 3U Model ANEVH1500-40(F) 1500V/40A/15kW ANEVH1500-60(F) 1500V/60A/21kW ANEVH100-510(F) 100V/510A/15kW ANEVH1500-80(F) 1500V/80A/30KW ANEVH300-75(F) 300V/75A/5kW ANEVH2250-25(F) 2250V/25A/15kW ANEVH300-150(F) 300V/150A/10kW ANEVH2250-50(F) 2250V/50A/21kW ANEVH300-225(F) 300V/225A/15kW ANEVH2250-60(F) 2250V/60A/30kW ANEVH300-225(F) 300V/225A/21kW ANEVH300-300(F) 300V/300A/30kW 4U Model ANEVH500-40(F) 500V/40A/5kW ANEVH1000-40(F) 1000V/40A/10kW ANEVH1000-80(F) 1000V/80A/21kW ANEVH1000-100(F) 1000V/100A/30kW Support multiple parallel outputs to extend power/current range ANEVH500-80(F) 500V/80A/10KW ANEVH80-680(F) 80V/680A/20kW ANEVH500-120(F) 500V/120A/15kW ANEVH80-1020(F) 80V/1020A/30KW ANEVH300-450(F) 300V/450A/50KW ANEVH500-160(F) 500V/160A/21kW ANEVH500-240(F) 500V/240A/30KW ANEVH500-390(F) 500V/390A/50kW ANEVH750-300(F) 750V/300A/50kW ANEVH750-25(F) 750V/25A/5kW ANEVH1000-150(F) 1000V/150A/50KW ANEVH750-50(F) 750V/50A/10kW ANEVH1500-130(F) 1500V/130A/50kW ANEVH750-75(F) 750V/75A/15kW ANEVH750-120(F) 750V/120A/21KW ANEVH2250-100(F) 2250V/100A/50kW ANEVH750-180(F) 750V/180A/30k

W	ITME	80V	200V	360V	500V
5kW	ANEVH80-120		ANEVH200-70	ANEVH360-40	ANEVH500-35
10kW	ANEVH80-240		ANEVH200-140	ANEVH360-80	ANEVH500-70
15kW	ANEVH80-360		ANEVH200-210	ANEVH360-120	ANEVH500-105
W	ITME	750V	1000V	1500V	2250V
5kW	ANEVH750-25		ANEVH1000-40	ANEVH1500-35	ANEVH2250-25
10kW	ANEVH750-50		--	--	--
15kW	ANEVH750-75		--	--
